Bosch 0986083260 Alternator - 1
Bosch 0986083260 Alternator - 2
Bosch 0986083260 Alternator - 1
Bosch 0986083260 Alternator - 2
BOSCH

Bosch 0986083260 Alternator

5.0/5 78 reviews
SKU: 0986083260

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£322.78 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

FORD
ECOSPORT
Description Cylinder Capacity Horse Power Year
1.5 TDCi 1499 CCM 100 HP From 05/2015
TOURNEO COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
TRANSIT COURIER B460 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
TRANSIT COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023

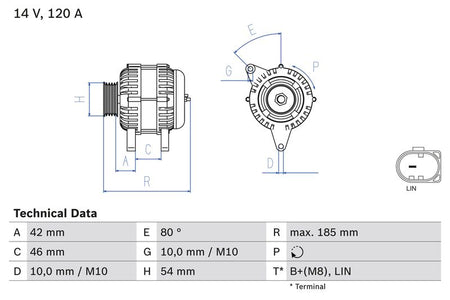

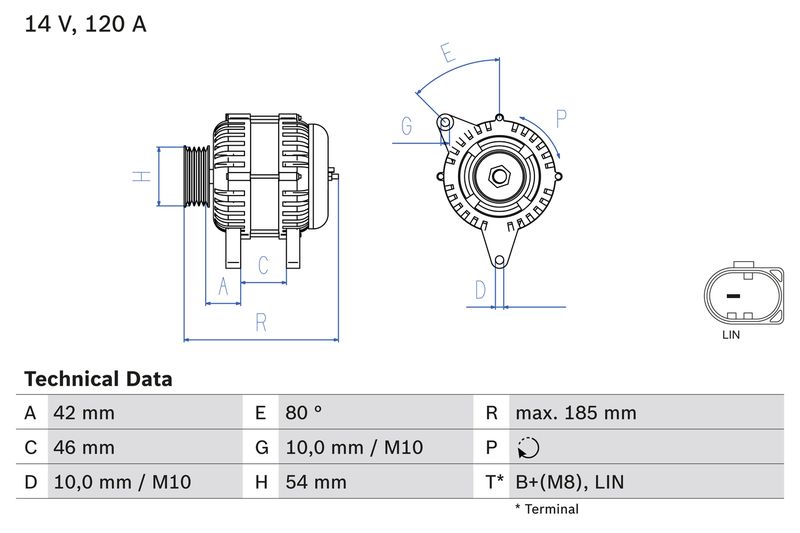

The Bosch 0986083260 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL174 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 120
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 42
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 54
Clamp : B+(M8),LIN

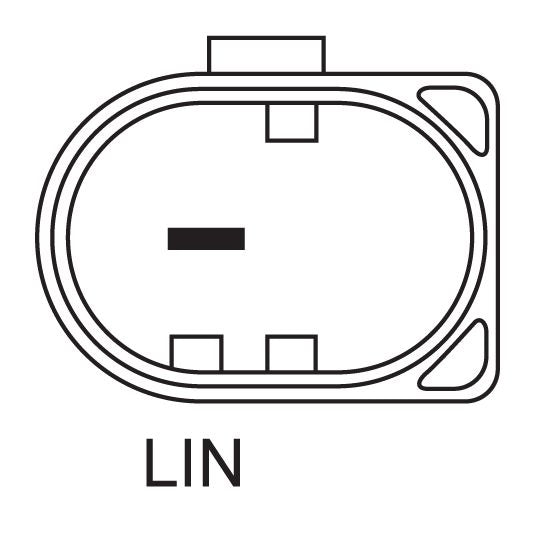

Plug Type ID : PL174
Length [mm] : 185
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : XUJH
Construction Year from : 11.2017
Engine Code : UGCA
Engine Code : UGCB
Engine Code : XUCC
Engine Code : XUCD
Engine Code : XWCA
Engine Code : XWCB
Engine Code : XUCF
Construction Year from : 05.2016
Engine Code : XVCA
Engine Code : XVCB
Engine Code : XVCC
  • Vendor BOSCH
  • SKU 0986083260
  • Barcode 4047026096545
  • FORD : AV6N10300DB AV6N10300DC AV6N10300DD ET7610300AA 1685791 1704768 2051880 2251619
  • VOLVO : 30659389 30659701 31285658
  • APEC : AAL1139
  • APEC : AAL1861
  • Carwood Group : BREF0320986083260
  • Carwood Group : BREF032115459
  • FEBI BILSTEIN : 1004305
  • HELLA : 8EL 015 630-121
  • LUCAS : LRA03431
  • VALEO : 439910
  • WAI : 20213N
  • WAI : A134.083
  • BOSCH : 8326
