Bosch 0986083390 Alternator - 1
Bosch 0986083390 Alternator - 2
Bosch 0986083390 Alternator - 1
Bosch 0986083390 Alternator - 2
BOSCH

Bosch 0986083390 Alternator

SKU: 0986083390
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£317.67 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C-ELYSEE (DD_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 72 (DDHMY0) 1199 CCM 72 HP 11/2012 - 01/2017
1.2 VTi 82 1199 CCM 82 HP From 12/2014
C3 PICASSO (SH_)
Description Cylinder Capacity Horse Power Year
1.2 THP 110 (SHHNZ6) 1199 CCM 110 HP 01/2015 - 12/2015
C3 II (SC_)
Description Cylinder Capacity Horse Power Year
1.0 VTi 68 999 CCM 68 HP 08/2012 - 09/2016
1.2 VTi 82 1199 CCM 82 HP 06/2012 - 09/2016
1.2 THP 110 1199 CCM 110 HP 10/2014 - 09/2016
C4 II (NC_)
Description Cylinder Capacity Horse Power Year
1.2 THP 130 (NCHNYM, NCHNYT) 1199 CCM 130 HP 04/2014 - 12/2017
1.2 THP 110 (NCHNZ6, NCHNV6) 1199 CCM 110 HP 02/2015 - 12/2017
C4 CACTUS
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP From 09/2014
1.2 VTi 75 / PureTech 75 1199 CCM 75 HP From 09/2014
1.2 THP 110 1199 CCM 110 HP From 09/2014
C4 CACTUS Van (0B_, 0P_)
Description Cylinder Capacity Horse Power Year
PureTech 82 1199 CCM 82 HP From 05/2019
DS3 (SA_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP 01/2013 - 03/2015
DS3 Convertible
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP 01/2013 - 07/2015
1.2 THP 110 1199 CCM 110 HP 10/2014 - 07/2015
DS4 (NX_)
Description Cylinder Capacity Horse Power Year
1.2 THP 130 1199 CCM 130 HP 07/2014 - 07/2015
PEUGEOT
208 I (CA_, CC_)
Description Cylinder Capacity Horse Power Year
1.0 VTi 999 CCM 68 HP 03/2012 - 12/2019
1.2 VTI 82 1199 CCM 82 HP 03/2012 - 12/2019
1.2 THP 110 1199 CCM 110 HP 01/2013 - 12/2019
301
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP From 12/2014
308 II (LB_, LP_, LW_, LH_, L3_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 72 1199 CCM 82 HP 09/2013 - 06/2021
1.2 THP 110 1199 CCM 110 HP 11/2013 - 06/2021
1.2 THP 130 1199 CCM 131 HP 11/2013 - 06/2021
308 SW II (LC_, LJ_, LR_, LX_, L4_)
Description Cylinder Capacity Horse Power Year
1.2 THP 130 1199 CCM 131 HP 03/2014 - 06/2021
1.2 THP 110 1199 CCM 110 HP 03/2014 - 06/2021
2008 I (CU_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 1199 CCM 82 HP 03/2013 - 12/2018
1.2 THP 110 / PureTech 110 1199 CCM 110 HP From 01/2015
1.2 THP 130 / PureTech 130 1199 CCM 130 HP 01/2015 - 11/2019
DS
DS 3 (SA_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 (SAHMZ6) 1199 CCM 82 HP 04/2015 - 07/2019
1.2 THP 110 / PureTech 110 (SAHNPS, SAHNZ6, SAHNZT) 1199 CCM 110 HP 04/2015 - 07/2019
1.2 THP 130 (SAHNYM) 1199 CCM 130 HP 09/2015 - 07/2019
DS 4 / DS 4 CROSSBACK (NX_)
Description Cylinder Capacity Horse Power Year
1.2 THP 130 (NXHNYM) 1199 CCM 130 HP 07/2015 - 12/2018
DS 3 Convertible (SB_)
Description Cylinder Capacity Horse Power Year
1.2 THP 110 1199 CCM 110 HP 07/2015 - 07/2019
1.2 THP 130 1199 CCM 130 HP 09/2015 - 07/2019
1.2 VTi 82 1199 CCM 82 HP 07/2015 - 07/2019

The Bosch 0986083390 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL132 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

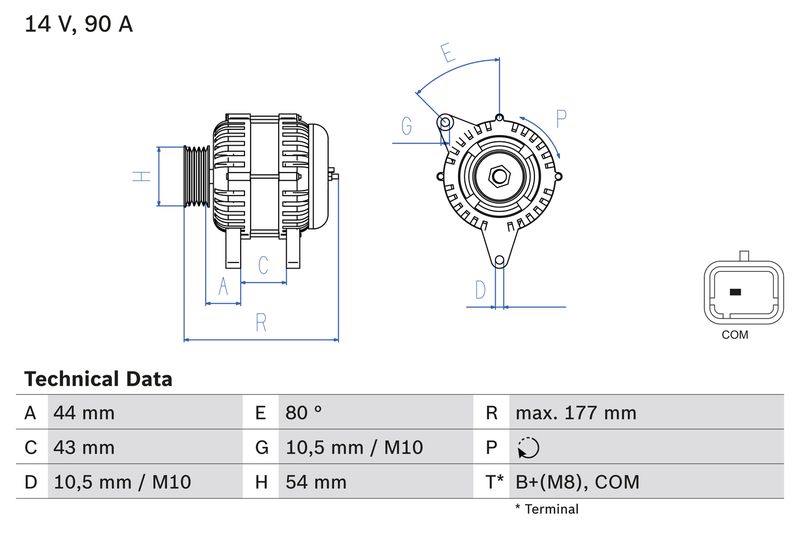

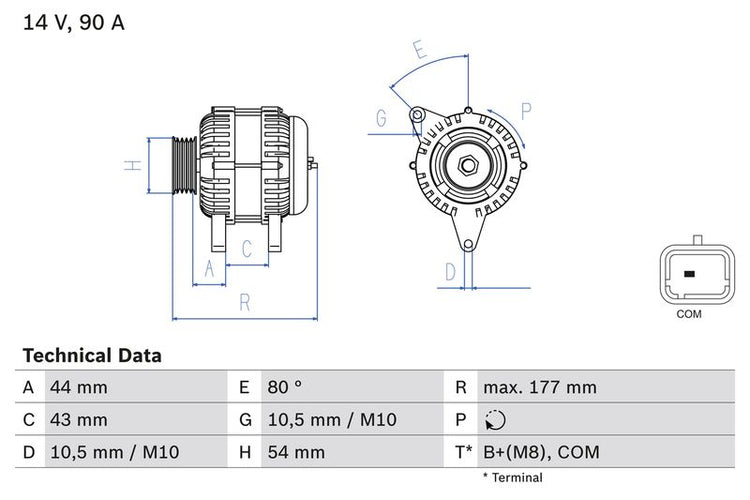

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 90
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 44
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 54
Clamp : B+(M8),COM

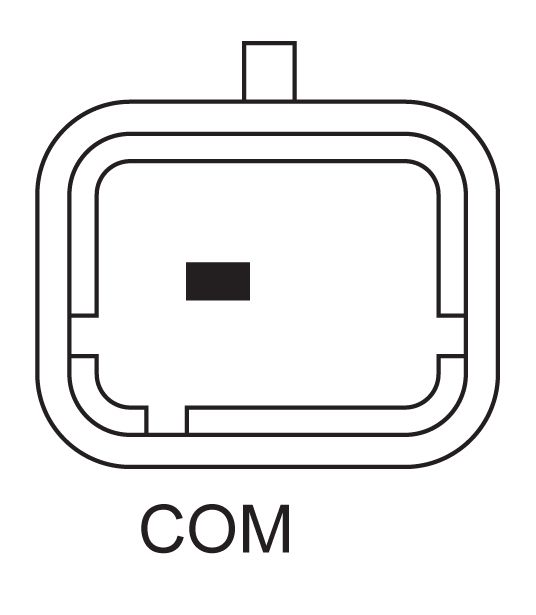

Plug Type ID : PL132
Length [mm] : 177
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : ZMZ (EB0)
Construction Year from : 09.2012
Construction Year to : 07.2013
for RPO number up to : 13383
Construction Year from : 08.2013
for RPO number from : 13384
Engine Code : ZMZ<EB0F>
Construction Year from : 09.2014
Engine Code : HMZ (EB2)
Engine Code : HMZ (EB2F)
Construction Year from : 03.2014
  • Vendor BOSCH
  • SKU 0986083390
  • Barcode 4047026096576
  • CITROËN : 96 882 373 80 98 060 074 80
  • PEUGEOT : 96 882 373 80 98 060 074 80
  • DS : 9806007480
  • APEC : AAL1943
  • Carwood Group : BREF0320986083390
  • Carwood Group : BREF032115546
  • Carwood Group : BREF032116357
  • DENSO : DAN1071
  • HELLA : 8EL 011 712-911
  • LUCAS : LRA03848
  • NAPA : NAL1943
  • VALEO : 440691
  • VALEO : 443017
  • WAI : 20631N
  • WAI : A131.870
  • BOSCH : 8339
