BOSCH

Bosch 0986083510 Alternator

SKU: 0986083510

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£325.31 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI

i10 I (PA)

Description	Cylinder Capacity	Horse Power	Year
1.1	1086 CCM	69 HP	04/2011 - 12/2013
1.1 LPG	1086 CCM	69 HP	04/2011 - 12/2013
1.1	1086 CCM	67 HP	01/2008 - 12/2013
1.1	1086 CCM	65 HP	12/2007 - 12/2013
1.1	1086 CCM	68 HP	11/2008 - 12/2013

KIA

PICANTO I (SA)

Description	Cylinder Capacity	Horse Power	Year
1.1	1086 CCM	65 HP	04/2004 - 09/2011
1.0	999 CCM	61 HP	04/2004 - 04/2011
1.0	999 CCM	63 HP	09/2007 - 04/2011

The Bosch 0986083510 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL176 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

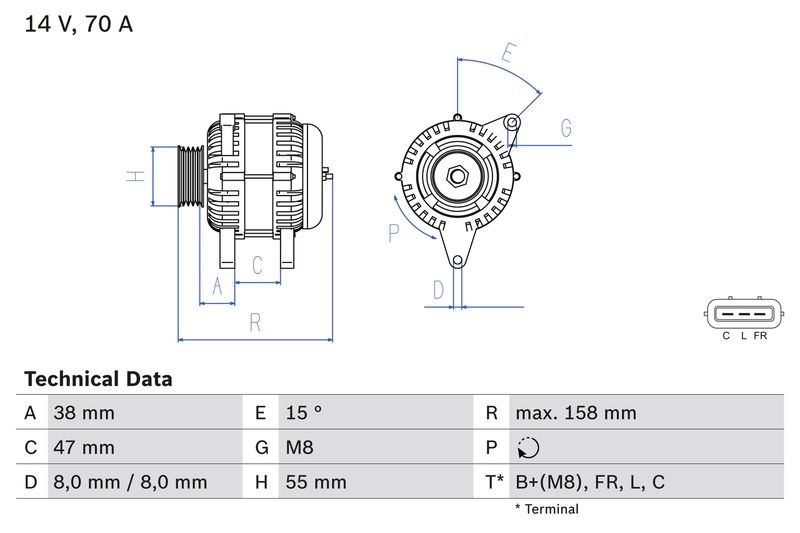

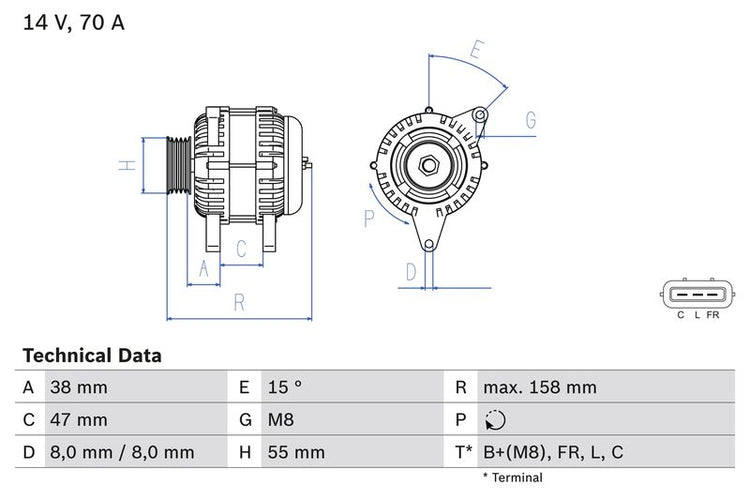

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 70

Fastening Type : Double Pivot Lever

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 38

Rotation Direction : Clockwise rotation

Pulleys : with multi-belt pulley

Number of grooves : 4

Belt Pulley Ø [mm] : 55

Clamp : B+(M8),FR,L,C

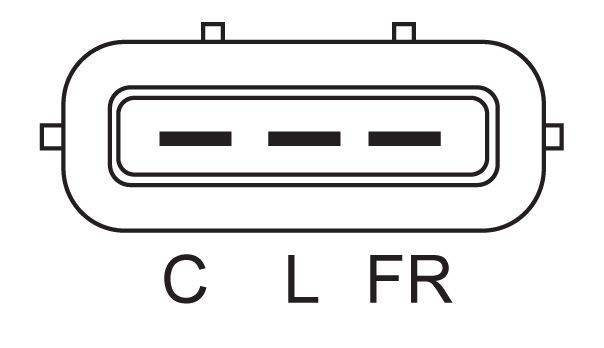

Plug Type ID : PL176

Length [mm] : 158

Recommended additional repairs : V-Belt/V-ribbed Belt

Construction Year from : 01.2010

Construction Year to : 10.2010

for OE number : 37300 02605

Engine Code : G4HG-5<(E3) 11EP>

Construction Year from : 03.2011

Construction Year to : 09.2013

Bosch 0986083510 Alternator
