BOSCH

Bosch 0986083630 Alternator

SKU: 0986083630
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£302.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
L200 / TRITON (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 167 HP 08/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 167 HP 10/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 128 HP 04/2010 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 178 HP 04/2010 - 12/2015
2.5 DI-D 16V 4WD 2477 CCM 133 HP 04/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 178 HP 01/2010 - 12/2015
2.5 TD (KA4T) 2477 CCM 90 HP 08/2011 - 12/2015
2.5 D 4WD 2477 CCM 75 HP 08/2011 - 12/2015
L200 / TRITON Platform/Chassis (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 128 HP 08/2007 - 12/2015

The Bosch 0986083630 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL68 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

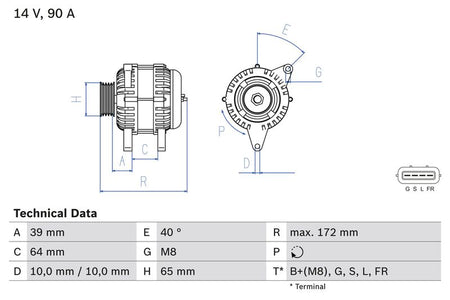

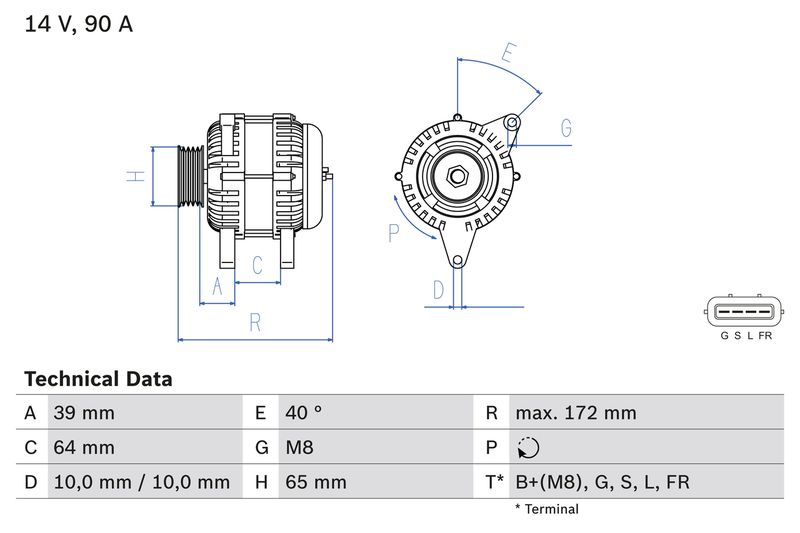

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 90
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 39
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 65
Clamp : B+(M8),G,S,L,FR

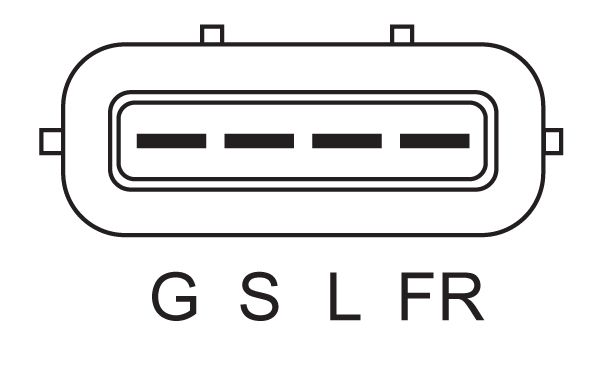

Plug Type ID : PL68
Length [mm] : 172
Recommended additional repairs : V-Belt/V-ribbed Belt
for OE number : 1800A007
Engine Code : 4D56 (16V)
  • Vendor BOSCH
  • SKU 0986083630
  • Barcode 4047026096644
  • MITSUBISHI : 1800A007
  • APEC : AAL1866
  • BOSCH : 1 986 A01 531
  • Carwood Group : BREF0320986083630
  • Carwood Group : BREF032115477
  • Carwood Group : BREF0321986A01531
  • FEBI BILSTEIN : 187815
  • HELLA : 8EL 015 659-311
  • LUCAS : LRA03337
  • NAPA : NAL1866
  • WAI : 11415N
  • WAI : A130.287
  • BOSCH : 8363
