Bosch 0986083640 Alternator
Your selected vehicle
Regular price
£496.97
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Bosch 0986083640 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL176 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

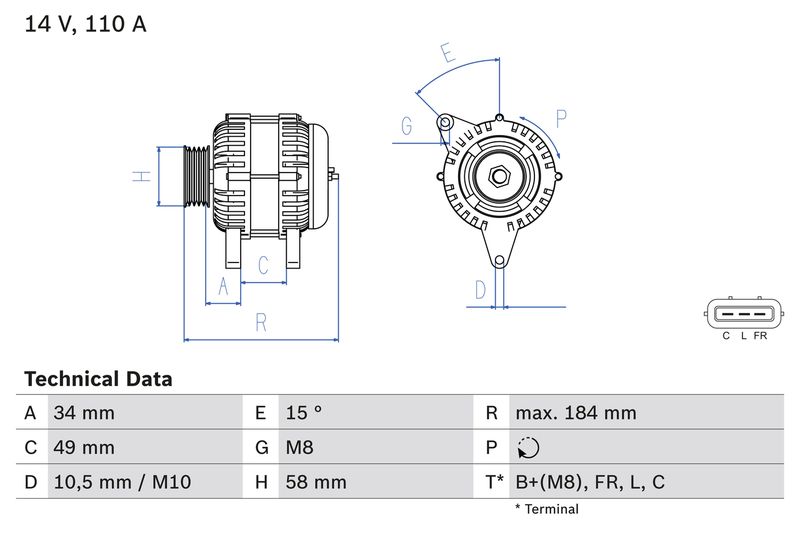

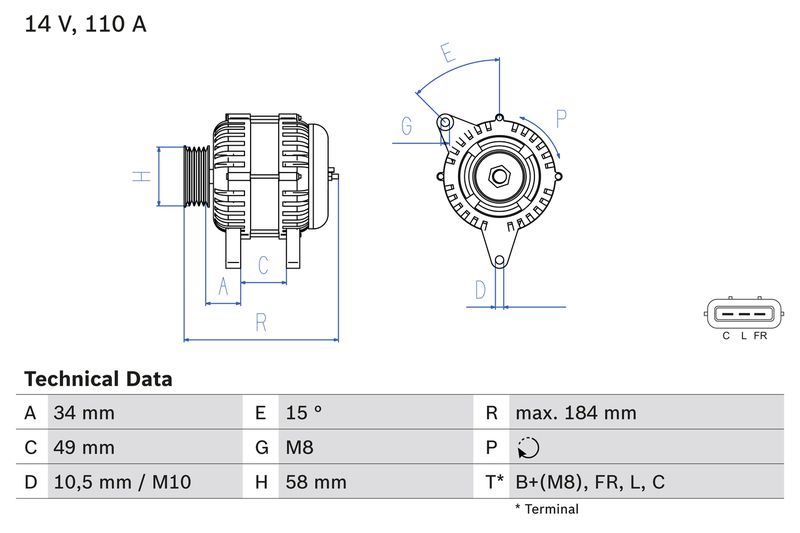

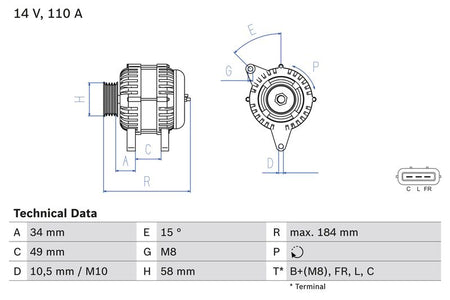

Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
110
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
34
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
58
Clamp :
B+(M8),FR,L,C

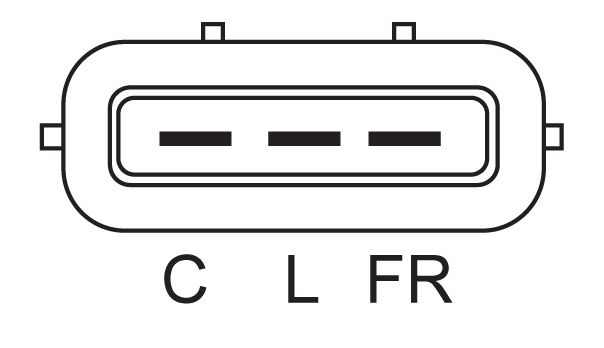

Plug Type ID :
PL176
Length [mm] :
184
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986083640
- BOSCH : 1 986 A01 458
- BOSCH : 1 986 A01 777
- Carwood Group : BREF032116226
- Carwood Group : BREF0321986A01458
- LUCAS : LRA03704
- VALEO : 616144
- WAI : 20652N
- BOSCH : 8364
