Bosch 0986083670 Alternator
Your selected vehicle
Regular price
£399.91
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986083670 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL181-1pin plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

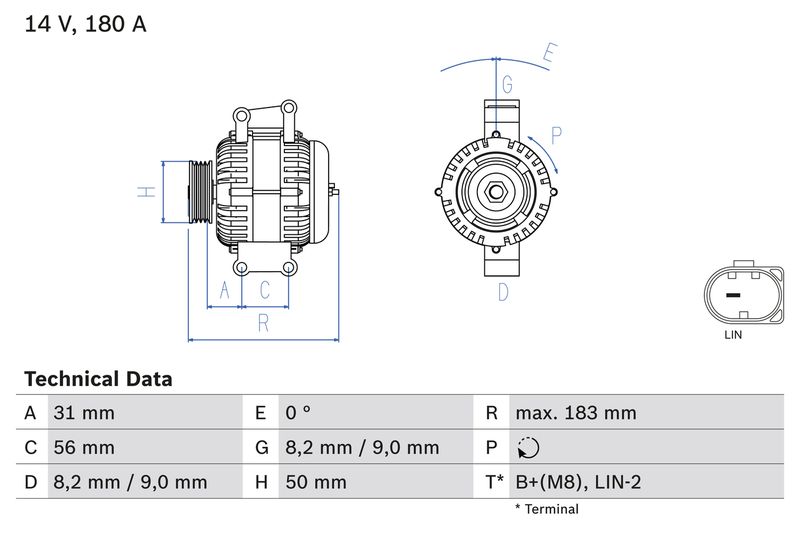

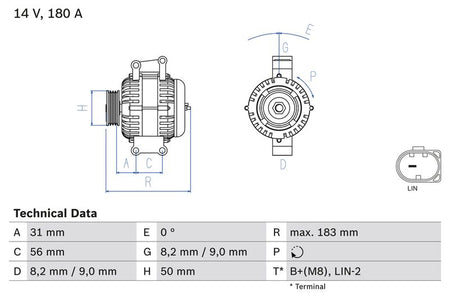

Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
180
Fastening Type :
Direct fastening
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
31
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
50
Clamp :
B+(M8),LIN-2

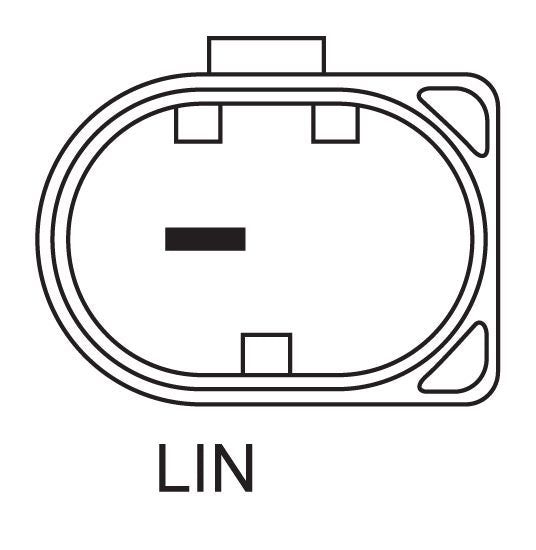

Plug Type ID :
PL181-1pin
Length [mm] :
183
Recommended additional repairs :
V-Belt/V-ribbed Belt
Vehicle Equipment :
for vehicles with start-stop function
Vehicle Equipment :
for vehicles with seat heating
Model Year from :
2012
for OE number :
000 906 77 02
Construction Year from :
12.2008
- Vendor BOSCH
- SKU 0986083670
- MERCEDES-BENZ : A 000 906 77 02 000 906 77 02
- BOSCH : 8367
