Bosch 0986084170 Alternator
Your selected vehicle
Regular price
£324.33
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986084170 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL86 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

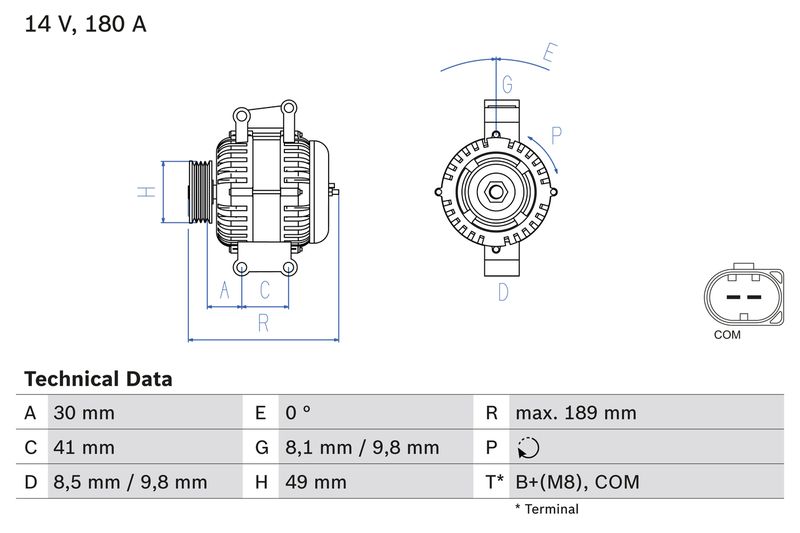

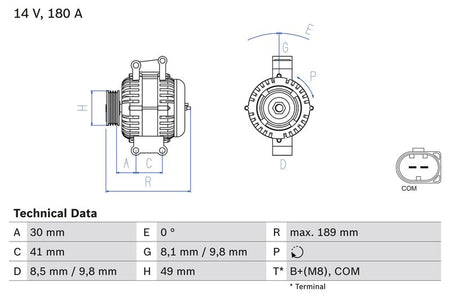

Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
180
Fastening Type :
Direct fastening
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
30
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
49

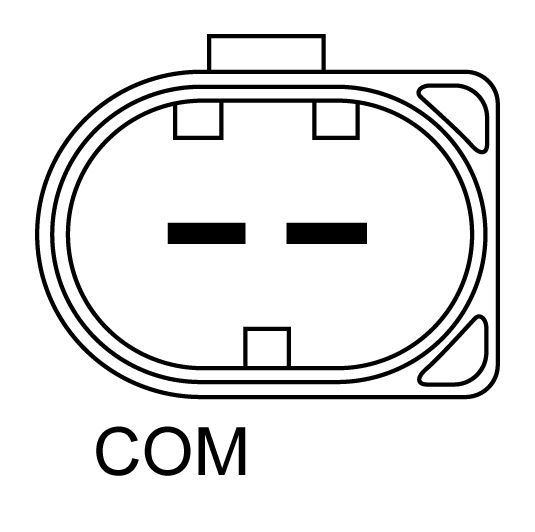

Clamp :
B+(M8),COM
Plug Type ID :
PL86
Length [mm] :
189
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986084170
- APEC : AAL2107
- BOSCH : 0 121 715 112
- BOSCH : 1 986 A00 765
- Carwood Group : BREF0320986084170
- Carwood Group : BREF032116120
- Carwood Group : BREF0321986A00765
- HELLA : 8EL 015 637-041
- LUCAS : LRA02970
- NAPA : NAL2107
- VALEO : 437557
- VALEO : 439560
- VALEO : 443529
- WAI : 11301N
- WAI : A132.014
- BOSCH : 8417
