Bosch 0986084390 Alternator
Your selected vehicle
Regular price
£248.39
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

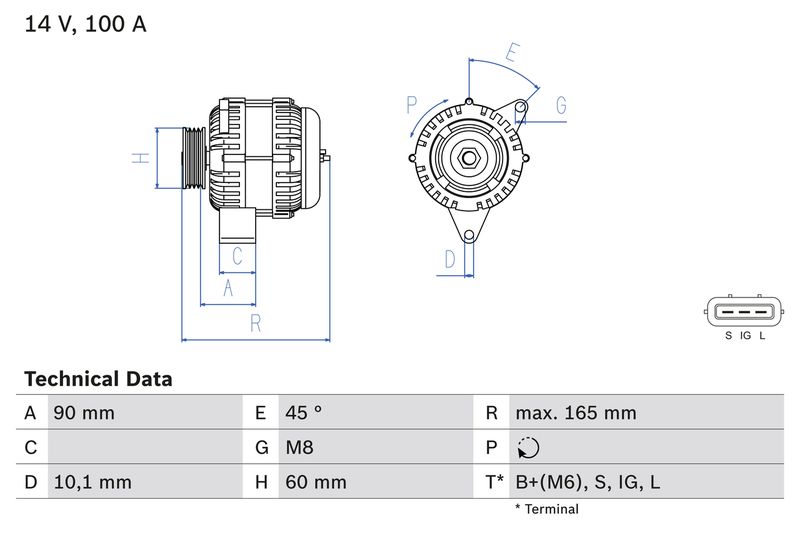

The Bosch 0986084390 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Single pivoted lever fastening type, excl. vacuum pump alternator type, and PL42 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
100
Fastening Type :
Single pivoted lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
90
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
4
Belt Pulley Ø [mm] :
60
Clamp :
B+(M6),S,IG,L

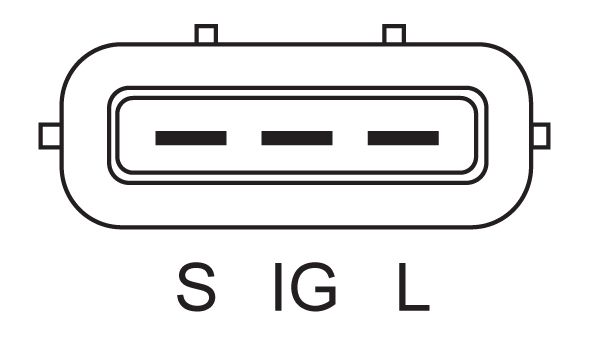

Plug Type ID :
PL42
Length [mm] :
165
Recommended additional repairs :
V-Belt/V-ribbed Belt
Construction Year to :
07.2005
- Vendor BOSCH
- SKU 0986084390
- TOYOTA : 27060 70500
- LEXUS : 2706070500
- BOSCH : 1 986 A01 863
- Carwood Group : BREF0320986084390
- Carwood Group : BREF032115790
- Carwood Group : BREF0321986A01863
- LUCAS : LRA02190
- WAI : 23190N
- BOSCH : 8439
