Bosch 0986084700 Alternator - 1
Bosch 0986084700 Alternator - 1
BOSCH

Bosch 0986084700 Alternator

SKU: 0986084700
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£293.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
B-MAX Van (JK)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 10/2012
B-MAX (JK)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 10/2012
1.0 EcoBoost 998 CCM 120 HP From 10/2012
1.0 EcoBoost 998 CCM 125 HP From 10/2012
1.0 EcoBoost 998 CCM 140 HP From 02/2016
ECOSPORT
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 125 HP From 10/2013
1.0 EcoBoost 998 CCM 140 HP From 03/2016
FIESTA VI (CB1, CCN)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 12/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 12/2017
FIESTA VI Van
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 04/2017
1.0 EcoBoost 998 CCM 140 HP 05/2014 - 04/2017
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 04/2017
1.0 998 CCM 80 HP 10/2012 - 04/2017
FOCUS III
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2012 - 12/2017
FOCUS III Turnier
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2012 - 02/2020
FOCUS III Saloon
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2012 - 02/2020
TOURNEO COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
TRANSIT COURIER B460 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
TRANSIT COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023

The Bosch 0986084700 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 174 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

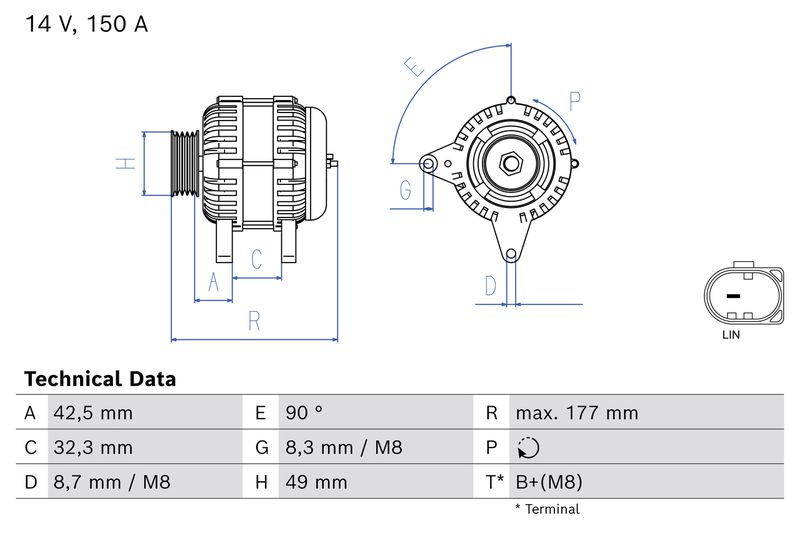

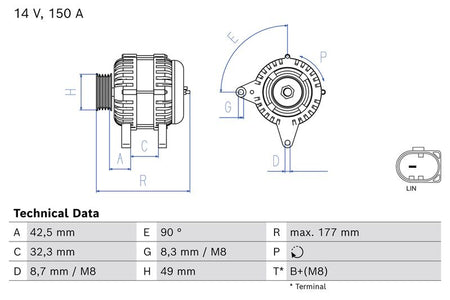

Function : Alternator
Voltage [V] : 12
Alternator Charging Current [A] : 150
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 42.5
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 49
Clamp : B+(M8)
Plug Type ID : 174
Length [mm] : 177
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year to : 12.2018
  • Vendor BOSCH
  • SKU 0986084700
  • Barcode 4047026535525
  • FORD : CV6T10300BC CV6T10300BE 1764816 1940809
  • BOSCH : 1 986 A00 606
  • Carwood Group : BREF0320986084700
  • Carwood Group : BREF032115456
  • Carwood Group : BREF0321986A00606
  • LUCAS : LRA03762
  • VALEO : 444212
