Bosch 0986085130 Alternator - 1
Bosch 0986085130 Alternator - 1
BOSCH

Bosch 0986085130 Alternator

SKU: 0986085130
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£238.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AURIS (_E18_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE180_, NDE180R) 1364 CCM 90 HP 10/2012 - 12/2018
AURIS VAN Hatchback Van (_E18_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE180_) 1364 CCM 90 HP 03/2013 - 12/2018
AURIS Estate (_E18_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE180_) 1364 CCM 90 HP 07/2013 - 12/2018
COROLLA Saloon (_E18_, ZRE1_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE180_, NDE170_) 1364 CCM 90 HP 06/2013 - 12/2018
VERSO S (_P12_)
Description Cylinder Capacity Horse Power Year
1.4 D4-D (NLP121_, NLP121R) 1364 CCM 90 HP 11/2010 - 10/2016
YARIS Hatchback Van (_P13_)
Description Cylinder Capacity Horse Power Year
1.4 D4d (NLP130) 1364 CCM 90 HP 07/2014 - 05/2018
YARIS/VITZ (_P13_)
Description Cylinder Capacity Horse Power Year
1.4 D (NLP130_, NLP130) 1364 CCM 90 HP 09/2011 - 05/2018

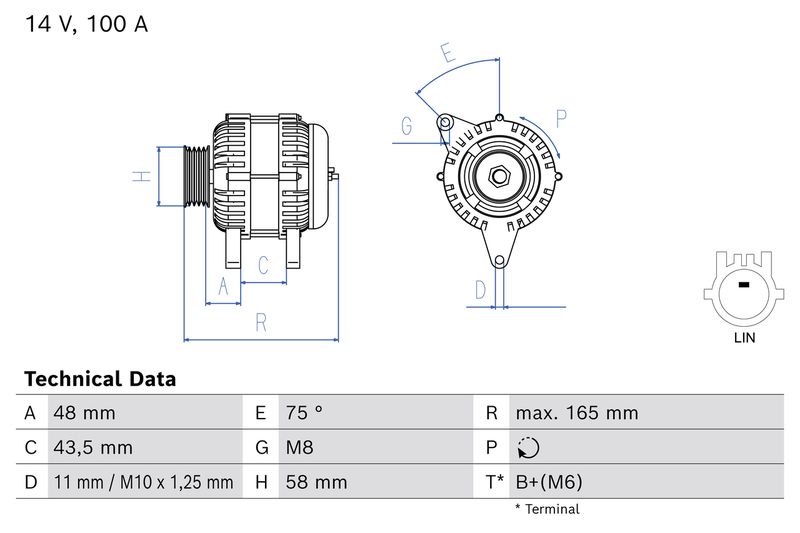

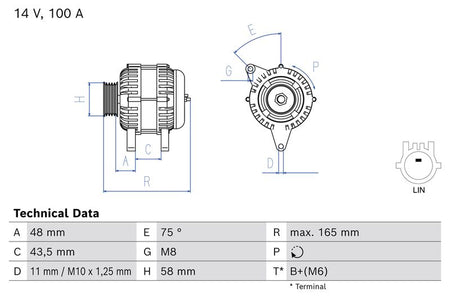

The Bosch 0986085130 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 204 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 100
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 48
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 58
Clamp : B+(M6)
Plug Type ID : 204
Length [mm] : 165
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year to : 04.2015
  • Vendor BOSCH
  • SKU 0986085130
  • Barcode 4047023098924
  • TOYOTA : 27060 0N090 27060 0N100 27060 33110
  • BOSCH : 1 986 A00 641
  • Carwood Group : BREF0320986085130
  • Carwood Group : BREF032116504
  • Carwood Group : BREF0321986A00641
  • DENSO : DAN1094
  • LUCAS : LRA03563
