Bosch 0986085970 Alternator - 1
Bosch 0986085970 Alternator - 1
BOSCH

Bosch 0986085970 Alternator

SKU: 0986085970
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£328.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
RELAY III Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 130 HP From 07/2006
2.2 HDi 150 2198 CCM 150 HP From 07/2011
RELAY III Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 130 HP From 07/2011
2.2 HDi 150 2198 CCM 150 HP From 07/2011
RELAY III Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 130 HP From 07/2011
2.2 HDi 150 2198 CCM 150 HP From 07/2011
PEUGEOT
BOXER Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 131 HP From 03/2011
2.2 HDi 150 2198 CCM 150 HP From 03/2011
BOXER Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 131 HP From 04/2006
2.2 HDi 150 2198 CCM 150 HP From 03/2011
BOXER Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 131 HP From 03/2011
2.2 HDi 150 2198 CCM 150 HP From 03/2011

The Bosch 0986085970 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 137 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

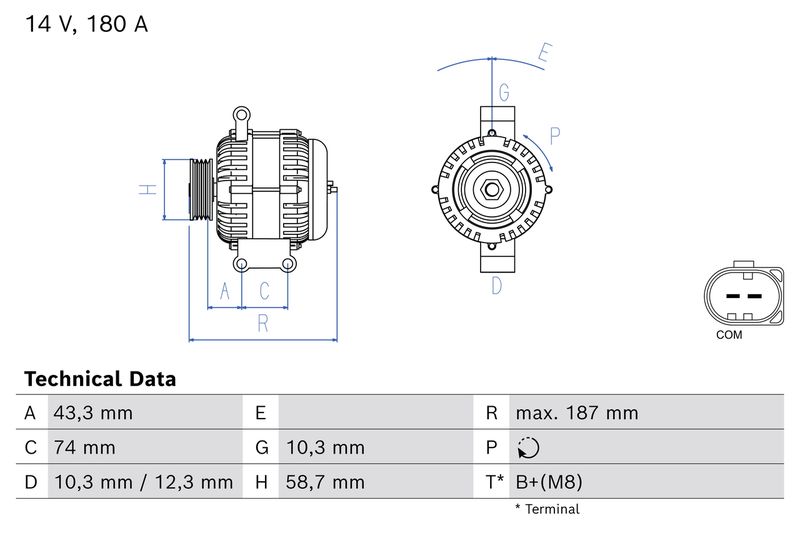

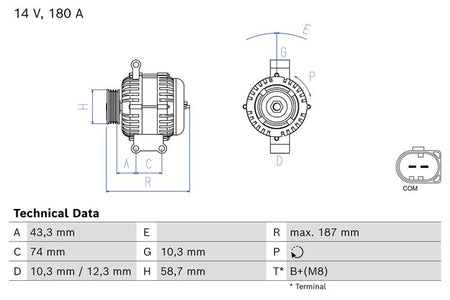

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 180
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 43.3
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 58.7
Clamp : B+(M8)
Plug Type ID : 137
Length [mm] : 187
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 0986085970
  • Barcode 4047026561739
  • CITROËN : 16 098 425 80
  • FIAT : K9678867980 9678867980
  • PEUGEOT : 16 098 425 80 96 776 085 80
  • Carwood Group : BREF0320986085970
  • Carwood Group : BREF032116903
  • HELLA : 8EL 015 659-261
  • LUCAS : LRA03640
  • VALEO : 443412
  • WAI : 24230N
  • WAI : A132.040
