Bosch 0986086070 Alternator
Your selected vehicle
Regular price
£336.51
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

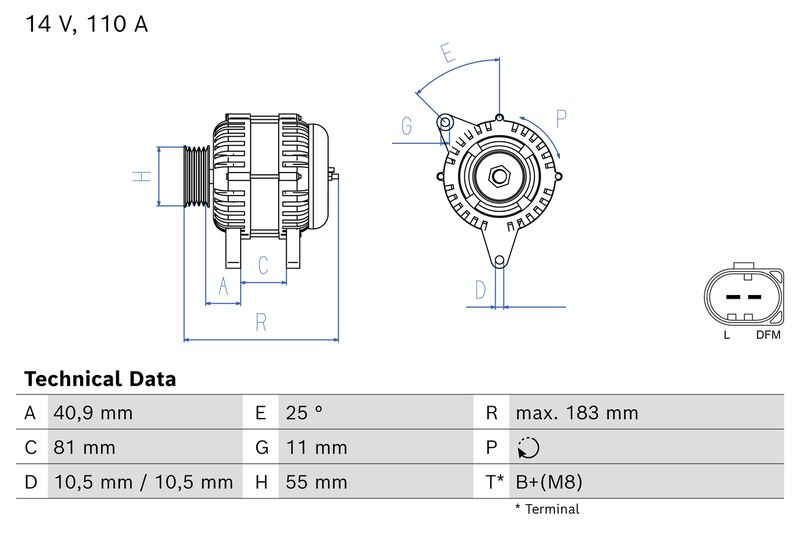

The Bosch 0986086070 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 61 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
110
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
40.9
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
7
Belt Pulley Ø [mm] :
55
Clamp :
B+(M8)
Plug Type ID :
61
Length [mm] :
183
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986086070
- FIAT : K5802170709 5802170709
- IVECO : 5802170709
- Carwood Group : BREF0320986086070
- Carwood Group : BREF032116962
- LUCAS : LRA04693
