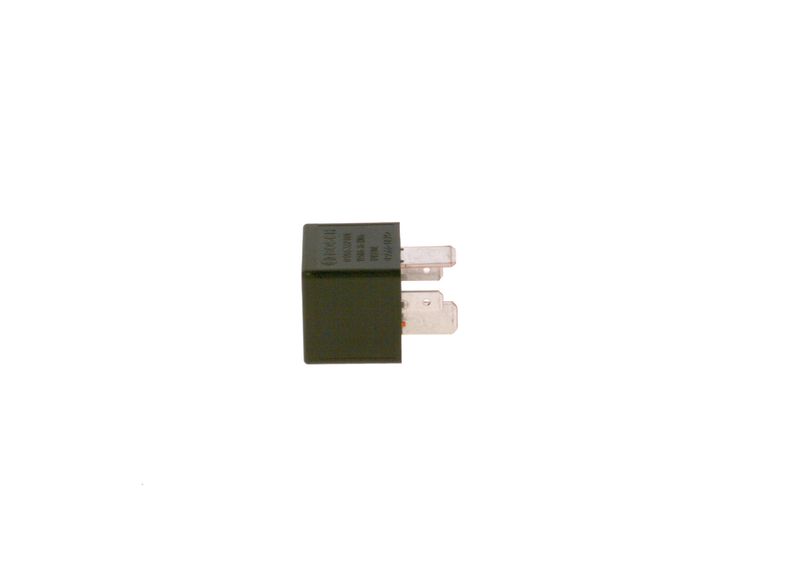

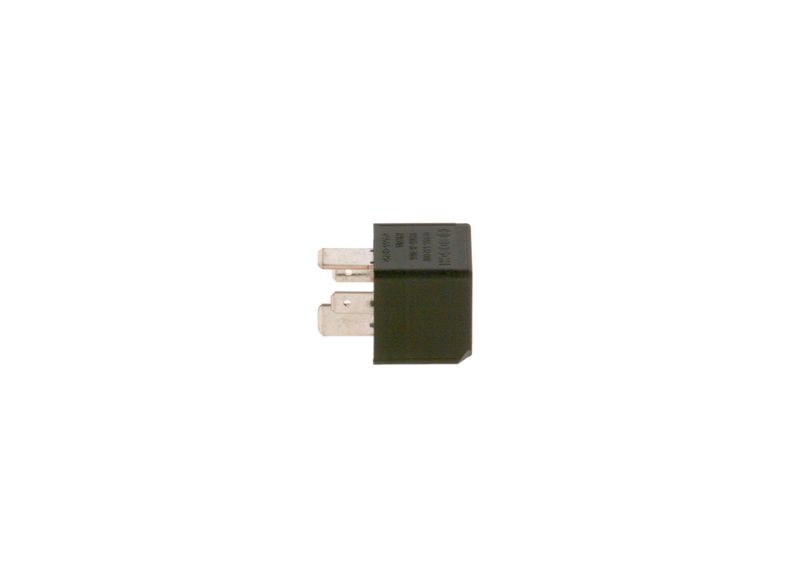

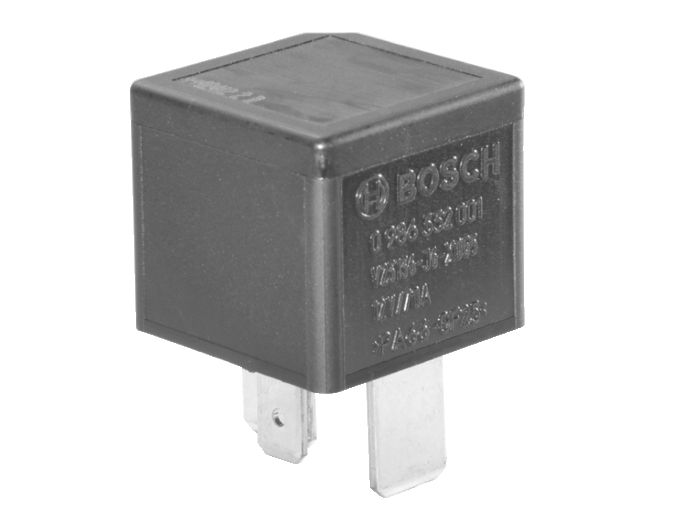

Bosch 0986332001 Relay, main current
Your selected vehicle
Regular price
£14.37
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986332001 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 12 V electrical rating, Housing with Plastic Lid housing type, IP20 protection type (ip code), and -40 °C temperature range from. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
70
Voltage [V] :
12
Number of pins :
4
Relay function :
Normally open contact
Housing Type :
Housing with Plastic Lid
Protection Type (IP Code) :
IP20
Temperature range from [°C] :
-40
Temperature range to [°C] :
85
Housing Colour :
black
Resistor [Ohm] :
63
Length [mm] :
28
Width [mm] :
28
Height [mm] :
40
- Vendor BOSCH
- SKU 0986332001
- AUDI : 019 193 750 3 191937503 443 951 253 J 7M0 951 253 A 8D0951253 8E0951253
- BMW : 61 36 8 350 358
- FIAT : 51395260
- FORD : 1425754 5M5T14B192EA 6G9T14B192 93BG14N089CA 93BG14N089CB
- MERCEDES-BENZ : A 002 542 26 19 A 002 542 26 19 64 A 002 542 72 19 002 542 26 19 002 542 26 19 64 002 542 72 19
- OPEL : 12 38 612 90226846
- SAAB : 95 22 081
- SEAT : 019 193 750 3 191937503 7M0 951 253 A 8E0951253
- SKODA : 019 193 750 3 191937503 7M0 951 253 A 8E0951253
- VAUXHALL : 01238612 90226846
- VW : 019 193 750 3 171 937 503 A 191937503 443 951 253 J 7M0 951 253 A 8D0951253 8E0951253
- HYUNDAI : 36860 4X000
- KIA : 36860 4X000
- HITACHI : 132202 2502202
- MASSEY FERGUSON : 3387326M2 4270844M1
- FENDT : 3387326M2 4270844M1
- JOHN DEERE : AL 20 737 6 AL81719
- SMART : 0025422619
- HELLA : 4RA 007 793-031
- HELLA : 4RA 933 332-531
- MAHLE : MR 26
- MAHLE : MR 35
- MEYLE : 100 937 0001
- BOSCH : V23136-J6-X055
