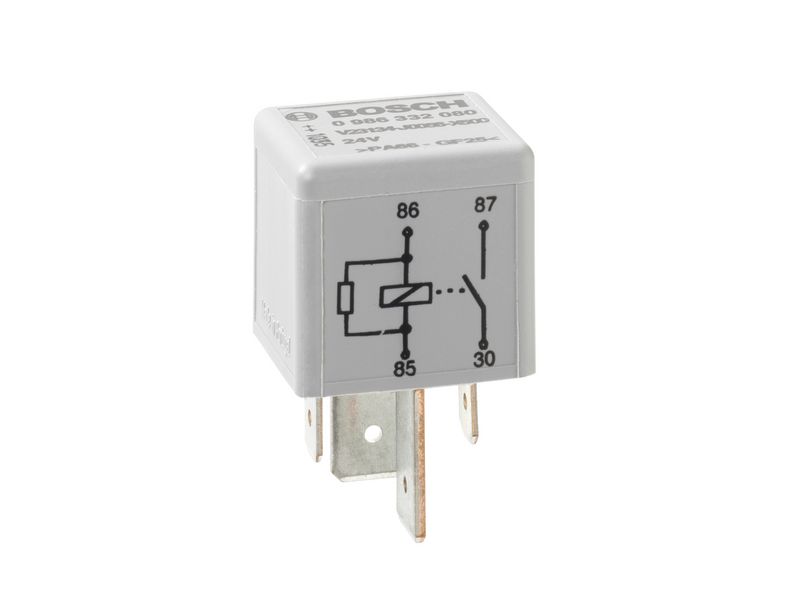

Bosch 0986332080 Relay, main current
Your selected vehicle
Regular price
£16.10
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986332080 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, 4 pins, -40 °C temperature range from, and 100 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
50
Voltage [V] :
24
Number of pins :
4
Relay function :
Normally open contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
100
Resistor [Ohm] :
360
- Vendor BOSCH
- SKU 0986332080
- DAF : 0867512 1457437 1669972 1880377
- FIAT : 97103581
- FORD : 97CT15K235CA 98CT15K235AC 98CT15K235CA 98CT15K235CB
- IVECO : 0000097103581 41801122EE 41801122EE897606 6450030 97103581
- MAN : 81 25902 0155 81 25902 0317 81 25902 0491 81 25902 0519
- MERCEDES-BENZ : A 364 542 73 19 364 542 73 19
- SCANIA : 1439172 1543731 303535
- VOLVO : 1407909 1439172
- ALCATEL : 2420827
- MASSEY FERGUSON : 4003 777 M91
- O&K : 170 92 43
- LIEBHERR : 600 29 14 690 52 14
- JOHN DEERE : 59009
- FEBI BILSTEIN : 09865
- HELLA : 4RA 003 437-091
- HELLA : 4RA 003 437-097
- HELLA : 4RA 965 400-131
- MAHLE : MR 40
- BOSCH : V23134-J0056-X408
