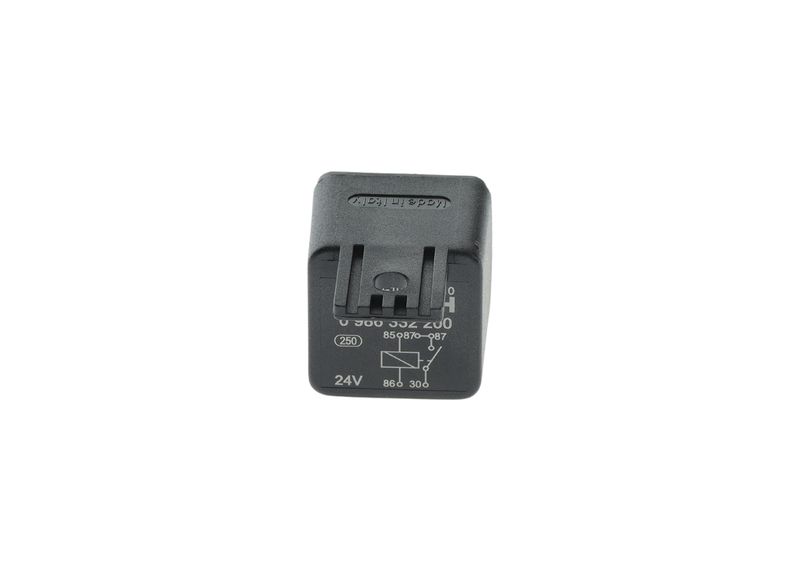

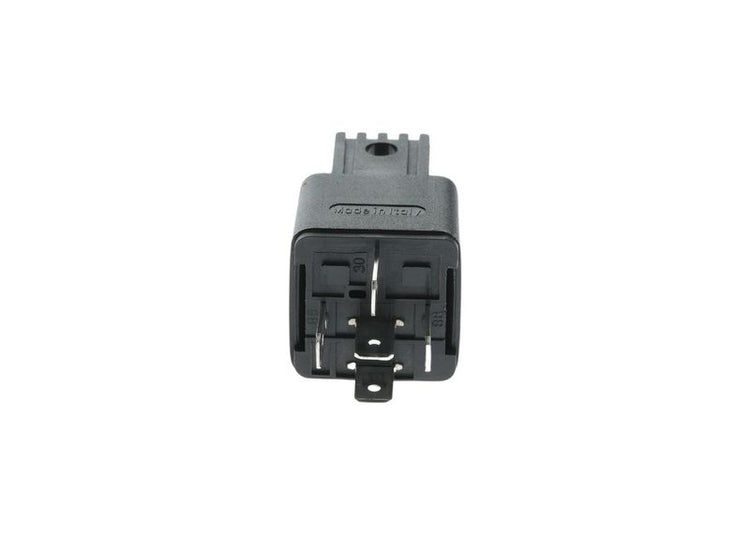

Bosch 0986332200 Relay, main current

SKU: 0986332200
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
Regular price £7.75 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

The Bosch 0986332200 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, Housing with Plastic Lid housing type, -40 °C temperature range from, and 100 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.

Function : Relay, main current
Switch Function : Normally Open Contact
Current Strength [A] : 20
Voltage [V] : 24
Relay function : Normally open contact
Housing Type : Housing with Plastic Lid
Temperature range from [°C] : -40
Temperature range to [°C] : 100
Length [mm] : 27
Width [mm] : 27
Height [mm] : 52
  • Vendor BOSCH
  • SKU 0986332200
  • Barcode 4047026894929
  • FEBI BILSTEIN : 45400
