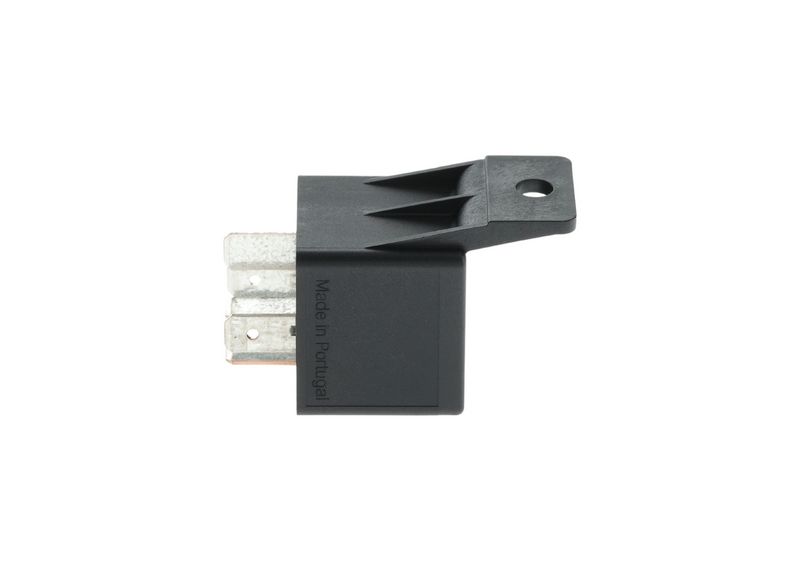

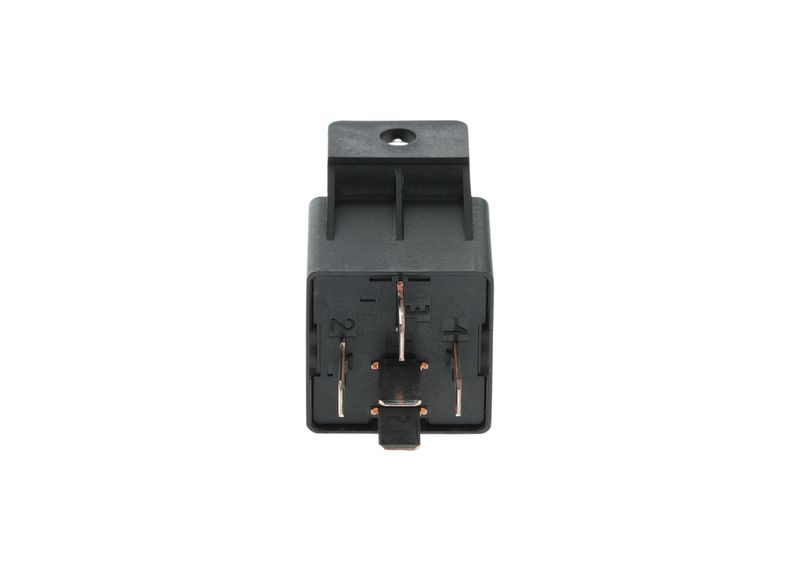

Bosch 0986332300 Relay, main current
Your selected vehicle
Regular price
£7.26
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986332300 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records Normally Open Contact switch function, 12 V electrical rating, -40 °C temperature range from, and 85 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Switch Function :
Normally Open Contact
Current Strength [A] :
30
Voltage [V] :
12
Relay function :
Central electrics
Temperature range from [°C] :
-40
Temperature range to [°C] :
85
Resistor [Ohm] :
112
- Vendor BOSCH
- SKU 0986332300
- ALFA ROMEO : 116006513503 4339372 530623 531417
- AUTO UNION : 66173307500250 68423860300016
- AUDI : 141 951 253 A 311 906 061 C 311 963 141 B
- BMW : XXXX9059177 01243207 09059177 61 31 1 243 207 61 31 1 351 317 61 31 1 352 156 61 31 1 353 361 61 31 9 059 177
- CITROËN : DX524101A 5414209 5422133
- DAF : 261062 501945 504945
- FIAT : 4339371 4339372 7612321 82277344 9268140
- FORD : D7NN14N089A F1NN14N089AA 13A025H 636263 82DB11390AA
- HANOMAG : 3598198M1
- HANOMAG RHEINSTAHL : 1534935301 533935101 534935301
- HENSCHEL : 0 921 332
- IVECO : 4320625 4320629 7686773
- KÄSSBOHRER : 7375031000
- LANCIA : 4339371 4339372 82277344 9268140
- MAGIRUS-DEUTZ : C12VH7606 01161137 01164015 01169077 04323132 06258834 116 1137 116 4015 116 9077 432 3132 625 8834
- MAN : 39 90058 0029 81 25902 0059 81 25902 0446 81 25902 7009 90 81616 0332
- MERCEDES-BENZ : A 000 542 15 19 A 000 542 81 19 A 000 545 80 05 A 001 542 31 19 A 001 542 32 19 A 001 542 43 19 A 002 545 19 05 000 542 15 19 000 542 81 19 000 545 80 05 001 542 31 19 001 542 32 19 001 542 43 19 002 545 19 05
- OPEL : 03440489 03445949 12 38 535 12 38 609 12 38 614 12 38 965 34 40 489 90003095
- PEUGEOT : DX524101A 5414209 5422133 6555 HJ 6555 VP 96 730 621 80
- PORSCHE : 0171937503 141951253B 171937503 311963141B 431951253H 999 657 009 90
- RENAULT : 77 00 545 853 77 00 709 633
- SAAB : 83 76 105 85 22 310
- SCANIA : 21020100 229542
- SEAT : 017 193 750 3 171937503 4H0 951 253 A
- SKODA : 4H0 951 253 A
- VAUXHALL : 12 38 965 34 40 489
- VOLVO : 01235893 1235893 239482 241812 6211833 6626921 6643474 853544 870670
- VW : 017 193 750 3 043 195 125 3 111 963 141 C 141 951 253 A 171937503 311 906 061 C 311 963 141 B 311906061 4H0 951 253 A 431 951 253 A 431951253
- FAUN : 1731 009 1731 103 1731 158
- STEYR : 413S080031 99000580210
- HYUNDAI : 39160 25000 95225 3B100
- KIA : 0K011 18811 0K9A0 18811 0K900 18811
- BOMAG : 057 543 01
- CASE IH : 82003697 82004463
- MASSEY FERGUSON : 3539 335 M92
- MWM : 6 0742 40 6 0005
- FERRARI : 0313320134 04 01 30 07 138075
- DEUTZ-FAHR : 01164015
- FENDT : X 830 250 010 000 X 830 250 011 000 X830250010 3539335M92 3598198M1 3906604M1 656108302 72380976
- JOHN DEERE : AZ26996
- LOTUS : B089M6057F
- PUCH : 700 1 85 101 0
- TEREX : 0340401494
- JUNGHEINRICH : 14038790
- NEW HOLLAND : 82 004 463 82003697
- AGRIFAC : 7764767
- MOTO GUZZI : 12732500 19732500
- FEBI BILSTEIN : 33689
- FEBI BILSTEIN : 34751
- FEBI BILSTEIN : 45399
