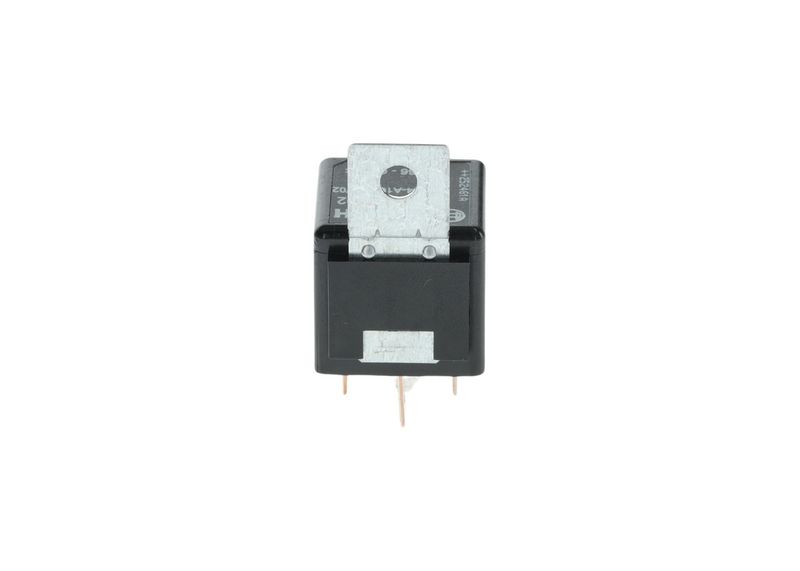

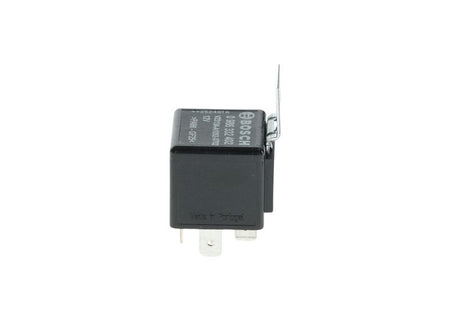

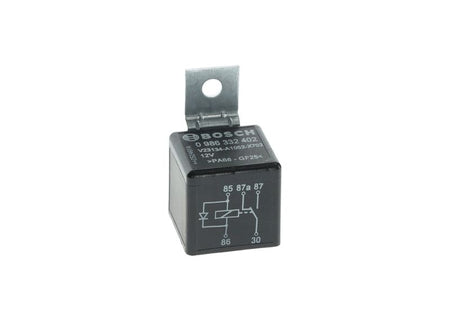

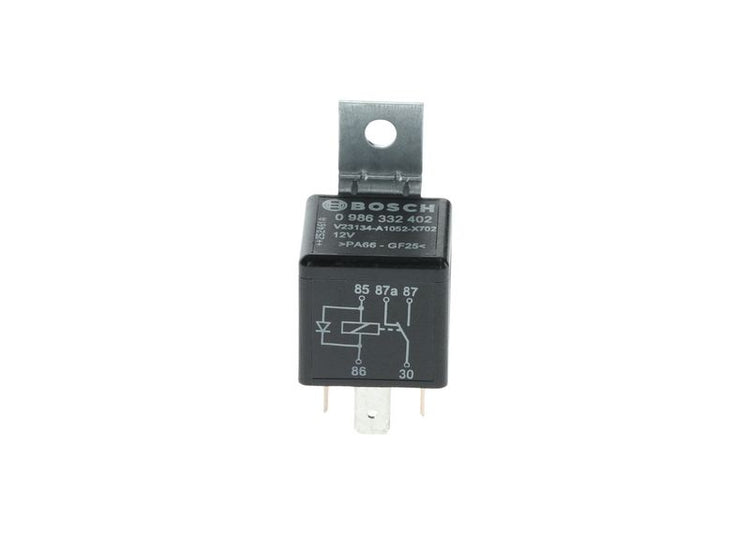

Bosch 0986332402 Relay, main current

SKU: 0986332402
Your selected vehicle
Out of stock
Out of Stock
Regular price £9.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

The Bosch 0986332402 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records Changeover Contact switch function, 12 V electrical rating, -40 °C temperature range from, and 100 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.

Function : Relay, main current
Switch Function : Changeover Contact
Current Strength [A] : 30
Voltage [V] : 12
Relay function : Central electrics
Temperature range from [°C] : -40
Temperature range to [°C] : 100
  • Vendor BOSCH
  • SKU 0986332402
  • Barcode 4047026885736
  • AUDI : KDWHL09678
  • FIAT : K3219084500 32190845 3219084500
  • HANOMAG HENSCHEL : 3097600M1
  • IVECO : 00000099434621 5158609 99434621
  • RENAULT : 77 00 807 154
  • VOLVO : 1324492
  • VW : KDWHL09678
  • CASE IH : 07074850 1301458C1
  • DEUTZ-FAHR : 01178519
  • JOHN DEERE : AL57418
  • HAKO : 01 06454 0 90 78704 5
  • VALMET : 32906800
  • IRMSCHER : 75312005
  • KRONE : 0200833970
  • SCHMITZ CARGOBULL : 1104
  • FEBI BILSTEIN : 33689
