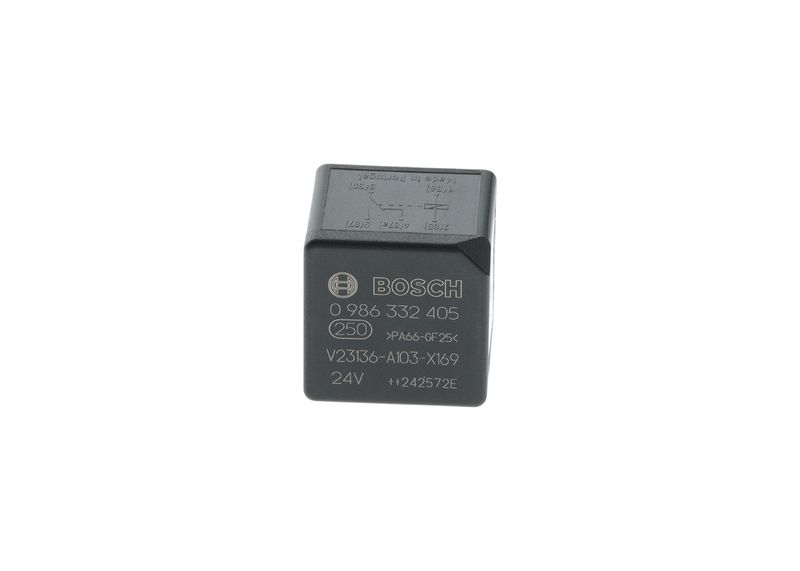

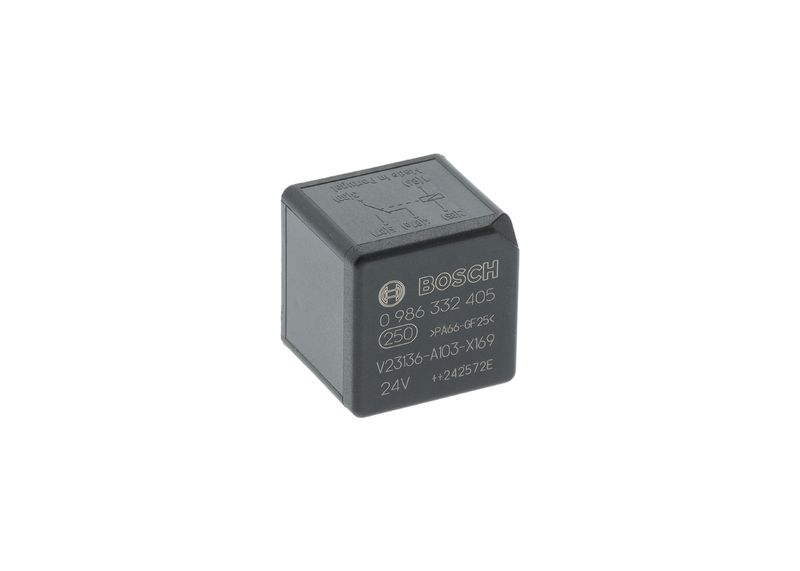

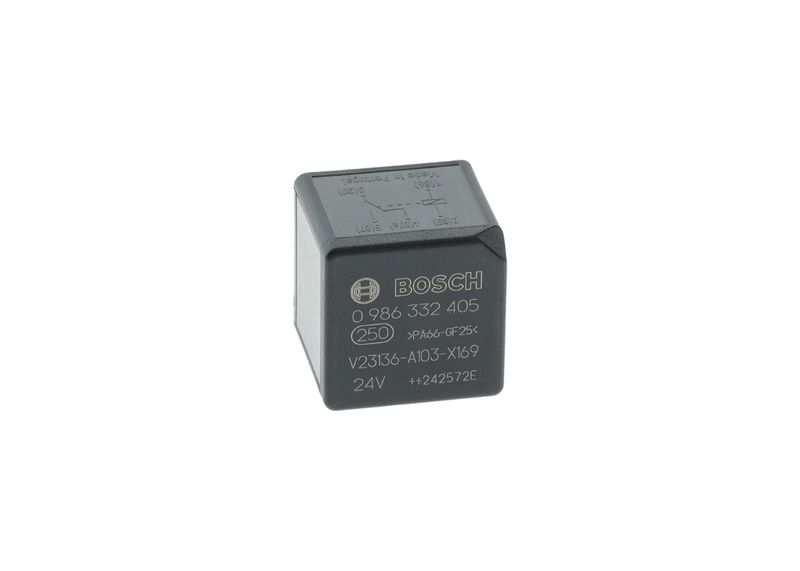

Bosch 0986332405 Relay, main current
Your selected vehicle
Regular price
£8.42
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986332405 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, 5 pins, -40 °C temperature range from, and 85 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Current Strength [A] :
20
Voltage [V] :
24
Number of pins :
5
Relay function :
Central electrics
Switch Function :
Changeover Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
85
- Vendor BOSCH
- SKU 0986332405
- AUWÄRTER : 0150551300 11025696
- BMW : 7 920 100
- DAF : 0118159 0867515 1403871 1519523
- FIAT : 1164018
- FORD : 1100010750 510082000126
- IVECO : 02471298EE 1164018 32190845 41040442 4718222
- KÄSSBOHRER : 7375111000
- MAN : 81 25902 0100 81 25902 0102 81 25902 0130 81 25902 0165 81 25902 0171 81 25902 0199 81 25902 0234 81 25902 0248 81 25902 0250 81 25902 0435 81 25902 0461 81 25902 0474
- MERCEDES-BENZ : A 000 545 54 05 A 000 545 84 05 A 000 545 84 25 A 000 820 17 10 A 000 982 21 26 A 001 531 02 60 A 001 542 05 19 A 001 542 21 19 A 001 545 10 05 A 003 545 96 05 000 545 54 05 000 545 84 05 000 545 84 25 000 820 17 10 000 982 21 26 001 531 02 60 001 542 05 19 001 542 21 19 001 545 10 05 003 545 96 05 005 458 425
- OPEL : V03436400
- RENAULT : 50 00 084 772 54 30 025 965
- SCANIA : 1391322 1431781 2077837 237722 243460 243879 400782
- VAUXHALL : V03436400
- VOLVO : 1259926 1504951
- FAUN : 1731 134 4901654M1 99700589082
- NEOPLAN : 11025696 150551300 88001233
- STEYR : 99000580236 99000580238
- CASE IH : 198161A1
- O&K : 058 90 82
- LIEBHERR : 11163649 600 21 53 620 25 11
- FENDT : R1863700014
- DEMAG : 51577440
- KÖGEL : 78006
- NOOTEBOOM : 3323168
- STILL : 521586
- AHLMANN : 4195687A
- CATERPILLAR : 0589082 4653110 4900735
- LINDE : 0019731302
- PACTON : 180698
- SCHMITZ CARGOBULL : 062864 1123
- TEREX : 1052253
- MANITOU : 604518 681116
- SOMMER : 2800093001 2801566001
- VDL : 30003346
- VISEON : 44150100027
- SCHWARZMÜLLER : 251713
- FEBI BILSTEIN : 11931
- FEBI BILSTEIN : 35475
- FEBI BILSTEIN : 45400
