BOSCH

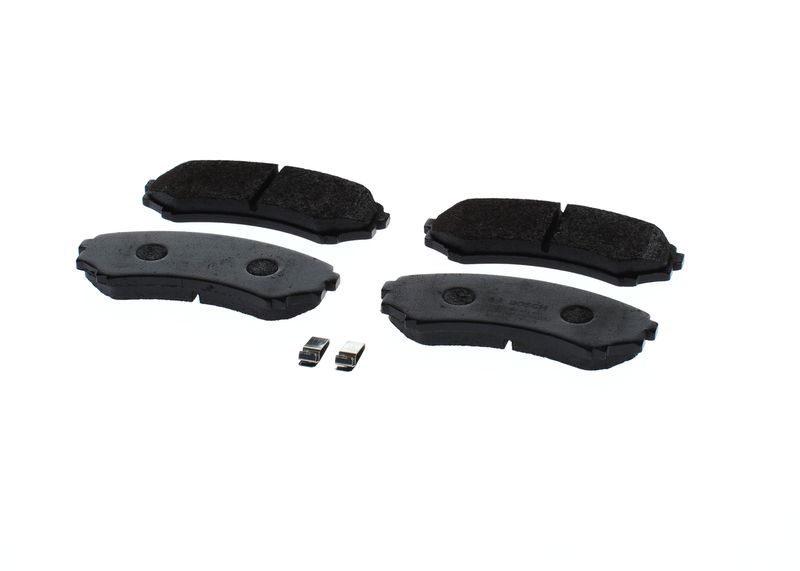

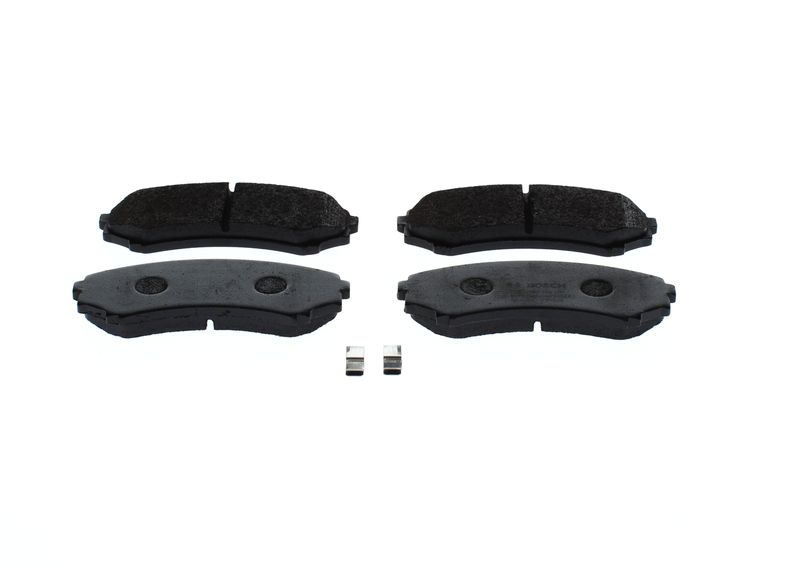

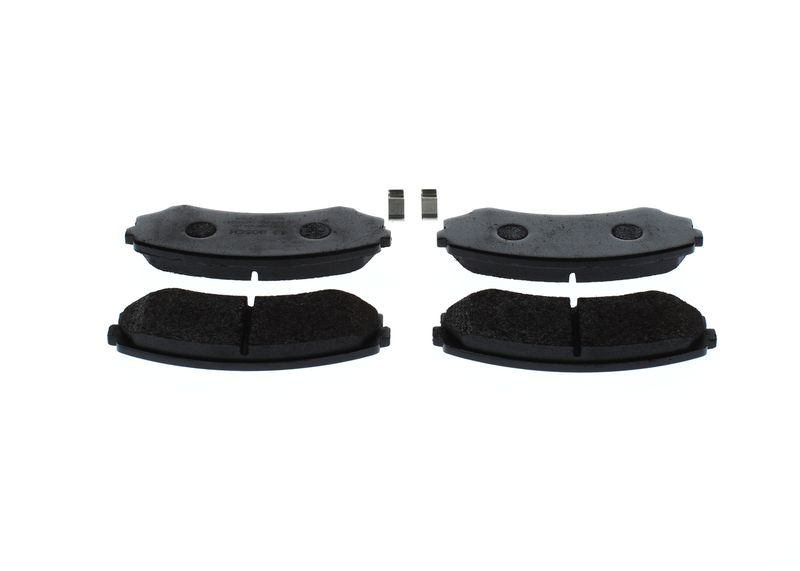

Bosch 0986424709 Brake Pad Set, disc brake

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986424709

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£30.27 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MAZDA
E Van (SR2)
Description Cylinder Capacity Horse Power Year
E2200 D 4WD 2184 CCM 71 HP 02/1997 - 05/2003
E2200 D 2184 CCM 71 HP 02/1997 - 08/2002
MITSUBISHI
GRANDIS (NA_W)
Description Cylinder Capacity Horse Power Year
2.4 MIVEC (NA4W) 2378 CCM 165 HP 04/2004 - 12/2011
2.0 DI-D (NA8W) 1968 CCM 136 HP 09/2005 - 03/2010
2.0 DI-D (NA8W) 1968 CCM 140 HP 02/2007 - 03/2010
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
3.5 Evolution (V55W) 3497 CCM 280 HP 10/1997 - 08/1999
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.5 (V65W, V75W) 3497 CCM 203 HP 04/2000 - 01/2007
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
2.5 TDi (V64W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
2.5 TD (V24W) 2477 CCM 115 HP From 07/2001
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 190 HP From 02/2007
3.0 4WD (V83W, V93W) 2972 CCM 178 HP From 02/2007
3.8 V6 (V87W, V97W) 3828 CCM 250 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.8 V6 (V87W) 3828 CCM 248 HP From 10/2006
3.2 DI-D 3200 CCM 167 HP From 02/2007
3.0 4WD 2972 CCM 174 HP From 08/2014
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
3.2 TD 4WD (V88V, V98V) 3200 CCM 200 HP From 01/2010
3.2 DI-D 4WD (V88W, V98W) 3200 CCM 190 HP From 02/2007
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 165 HP 04/2000 - 09/2007
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007

The Bosch 0986424709 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records with acoustic wear warning, low-Metallic construction, test mark ECE-R90, and 15.4 mm thickness. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Wear Warning Contact : with acoustic wear warning
Article number of recommended accessories : 1 987 474 325
Material : Low-Metallic
Test Mark : ECE-R90
WVA Number : 23488

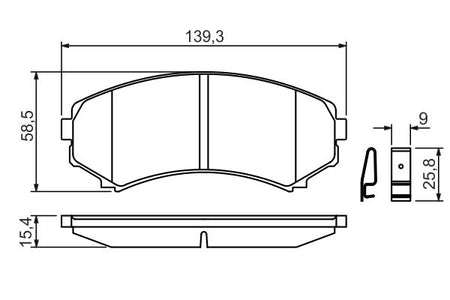

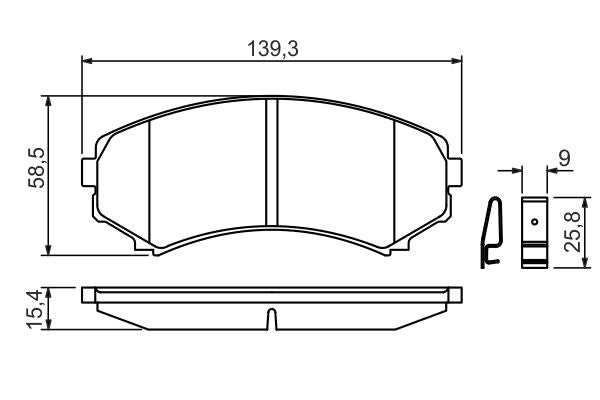

Thickness [mm] : 15.4
Width [mm] : 139.3
Height [mm] : 58.5
Manufacturer Restriction : SUMITOMO System
  • Vendor BOSCH
  • SKU 0986424709
  • Barcode 3165143542392
  • MAZDA : MR407422 MS4YP3328Z SHY63323Z SHY63328Z S4YR3323Z S4YR3323ZA S4Y93328Z S4Y93328ZA
  • MITSUBISHI : MN116445 MR407422 MR510539 MR527868 MR569592 MZ690340 MZ690347 MZ690347C 4605A041 4605A471
  • APEC : PAD1268
  • APEC : PD3183
  • BLUE PRINT : ADC44261
  • BLUE PRINT : ADM54278
  • BORG & BECK : BBP1757
  • BORG & BECK : BBP1891
  • BREMBO : P 54 029
  • DELPHI : LP1462
  • DELPHI : LX0559
  • Fahren : FBP3183
  • FEBI BILSTEIN : 16582
  • FTE : 9010385
  • HELLA : 8DB 355 009-461
  • MEYLE : 025 234 8816/PD
  • MEYLE : 025 234 8816/W
  • MINTEX : MDB1845
  • NAPA : NBP1227
  • National : NP2180
  • SKF : VKBP 80252 A
  • TEXTAR : 2348801
  • TRW : GDB3246
  • TRW : GDB3254
  • VALEO : 301518
  • VALEO : 301518A
  • VALEO : 598518
  • BOSCH : BP422
  • BOSCH : E9 - 90R-02A1425/0243
  • BOSCH : 23488
