BOSCH

Bosch 0986452063 Oil Filter

SKU: 0986452063
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£14.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
GALANT Mk V Saloon (E5_A, E7_A, E8_A)
Description Cylinder Capacity Horse Power Year
2.0 V6-24 (E64A, E54A) 1999 CCM 150 HP 11/1992 - 08/1996
L 300 III Van (P0_V, P1_V, P2_V)
Description Cylinder Capacity Horse Power Year
1.6 (P12V, P02V) 1598 CCM 69 HP 11/1986 - 05/1994
PAJERO SPORT II (KH_, KG_)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD 3200 CCM 165 HP From 07/2008
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
2.8 TD (V46W, V26W) 2835 CCM 125 HP 06/1994 - 10/1999
2.8 D (V46W, V26W) 2835 CCM 140 HP 11/1993 - 10/1999
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 190 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.2 DI-D 3200 CCM 167 HP From 02/2007
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
3.2 TD 4WD (V88V, V98V) 3200 CCM 200 HP From 01/2010
3.2 DI-D 4WD (V88W, V98W) 3200 CCM 190 HP From 02/2007
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 165 HP 04/2000 - 09/2007
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007

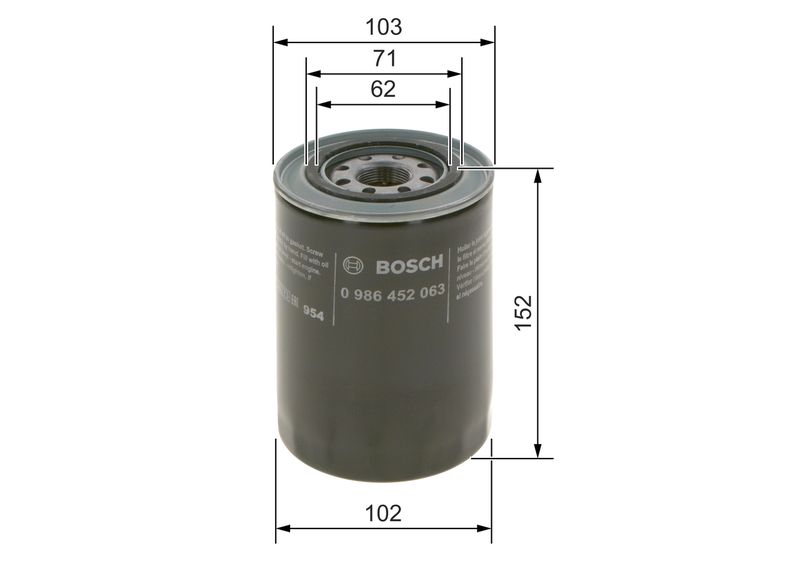

The Bosch 0986452063 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 102 mm outer diameter, 71 mm gasket outside diameter, and 62 mm gasket inside diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Oil Filter
Filter type : Spin-on Filter
Height [mm] : 151
Thread Size : M 26 x 1,5
Outer Diameter [mm] : 102
Gasket outside diameter [mm] : 71
Gasket inside diameter [mm] : 62
Bypass Valve Opening Pressure [bar] : 1
Construction Year to : 05.1996
  • Vendor BOSCH
  • SKU 0986452063
  • Barcode 3165143140918
  • BLUE PRINT : ADC42105
  • BLUE PRINT : ADC42117
  • BLUE PRINT : ADC42127
  • BORG & BECK : BFO4094
  • BOSCH : F 026 407 248
  • Fahren : FFL6015
  • FEBI BILSTEIN : 184432
  • HENGST FILTER : H395W
  • HENGST FILTER : H96W03
  • LUCAS : LFOS193
  • MAHLE : OC 297
  • MANN-FILTER : W 9069
  • MANN-FILTER : WP 1045
  • NAPA : NFO3035
  • UFI : 23.475.00
  • VALEO : 586085
  • WIX FILTERS : WL7199
  • BOSCH : P 2063
