BOSCH

Bosch 0986477033 Brake Drum

5.0/5 78 reviews

SKU: 0986477033

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£88.95 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details

Pay securely with

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

TRANSPORTER T3 Platform/Chassis (24_)

Description	Cylinder Capacity	Horse Power	Year
1.6 TD	1588 CCM	70 HP	10/1984 - 07/1992
1.7 D	1715 CCM	57 HP	08/1985 - 07/1992
2.1	2109 CCM	95 HP	08/1985 - 07/1992
2.0	1970 CCM	69 HP	05/1979 - 04/1986
1.9	1913 CCM	60 HP	09/1982 - 07/1992
1.9	1913 CCM	78 HP	08/1982 - 07/1992
2.1	2109 CCM	112 HP	03/1986 - 07/1992
2.1 i	2109 CCM	92 HP	07/1989 - 07/1992
1.6 D	1588 CCM	50 HP	01/1981 - 07/1987
1.9	1913 CCM	83 HP	10/1984 - 02/1989

TRANSPORTER T3 Van (24_, 25_)

Description	Cylinder Capacity	Horse Power	Year
2.1	2109 CCM	95 HP	08/1985 - 07/1992
1.9	1913 CCM	60 HP	10/1982 - 07/1992
2.0	1970 CCM	69 HP	05/1979 - 04/1986
1.6	1584 CCM	50 HP	05/1979 - 12/1982
1.9	1913 CCM	78 HP	10/1982 - 07/1992
1.6 TD	1588 CCM	69 HP	10/1984 - 07/1992
1.7 D	1715 CCM	57 HP	08/1984 - 07/1992
1.6 D	1588 CCM	50 HP	01/1981 - 07/1987
2.1	2109 CCM	112 HP	03/1986 - 07/1992
2.1 i	2109 CCM	92 HP	07/1989 - 07/1992
1.9	1913 CCM	90 HP	08/1983 - 02/1989

TRANSPORTER / CARAVELLE T3 Bus (25_)

Description	Cylinder Capacity	Horse Power	Year
1.6	1584 CCM	50 HP	05/1979 - 12/1982
1.6 D	1588 CCM	50 HP	01/1981 - 07/1987
1.6 TD	1588 CCM	70 HP	08/1984 - 07/1992
1.9	1913 CCM	60 HP	08/1982 - 07/1992
1.9	1913 CCM	78 HP	08/1982 - 07/1992
1.9	1913 CCM	83 HP	01/1983 - 07/1985
2.0	1970 CCM	70 HP	05/1979 - 12/1982
2.1	2109 CCM	95 HP	08/1985 - 07/1992
2.1	2109 CCM	112 HP	08/1984 - 07/1992
1.7 D	1716 CCM	57 HP	10/1986 - 07/1992
2.1 i	2109 CCM	92 HP	07/1989 - 07/1992
2.1 Cat	2109 CCM	95 HP	06/1989 - 07/1992
1.9	1913 CCM	90 HP	08/1983 - 07/1985

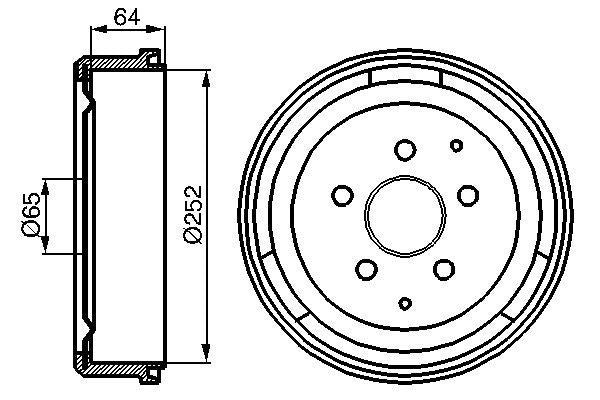

The Bosch 0986477033 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 252 mm inner brake drum diameter, 286 mm outer brake drum diameter, and 5 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 252

Outer brake drum diameter [mm] : 286

Inner brake drum height [mm] : 64

Total brake drum height [mm] : 77.4

Bolt Hole Circle Ø [mm] : 112

Number of Holes : 5

Centering Diameter [mm] : 65

APEC : DRM9700
BORG & BECK : BBR7047
BREMBO : 14.5495.10
FEBI BILSTEIN : 14062
FTE : 9620003
FTE : 9630003
MEYLE : 115 523 1011
MINTEX : MBD296
NAPA : NDR1044
National : NDR380
TEXTAR : 94008300
TEXTAR : 94048300
TRW : DB4053
