BOSCH

Bosch 0986477116 Brake Drum

SKU: 0986477116

Your selected vehicle

Out of stock

Out of Stock

£78.25 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN

AX (ZA-_)

Description	Cylinder Capacity	Horse Power	Year
1.4 GTi	1360 CCM	90 HP	08/1991 - 12/1996

SAXO (S0, S1)

Description	Cylinder Capacity	Horse Power	Year
1.0 X	954 CCM	45 HP	05/1996 - 11/1998
1.1 X, SX	1124 CCM	54 HP	05/1996 - 09/2003
1.4 VTS	1360 CCM	75 HP	05/1996 - 06/2003
1.6 VTL, VTR	1587 CCM	88 HP	05/1996 - 06/2003
1.5 D	1527 CCM	54 HP	09/1996 - 09/2003
1.5 D	1527 CCM	57 HP	09/1996 - 06/2001
1.1 X, SX	1124 CCM	60 HP	05/1996 - 09/2003
1.0 X	954 CCM	50 HP	05/1998 - 06/2003
1.6 VTS	1587 CCM	98 HP	09/2000 - 09/2003
1.6	1587 CCM	90 HP	02/1996 - 06/2003
1.6	1587 CCM	101 HP	02/2001 - 04/2004
1.5 D	1527 CCM	58 HP	07/2001 - 04/2004

PEUGEOT

106 I (1A, 1C)

Description	Cylinder Capacity	Horse Power	Year
1.3	1294 CCM	98 HP	10/1993 - 04/1996
1.4 Le Mans	1361 CCM	94 HP	09/1991 - 11/1994
1.6	1587 CCM	103 HP	11/1994 - 04/1996
1.4	1360 CCM	98 HP	08/1991 - 03/1996

106 II (1A_, 1C_)

Description	Cylinder Capacity	Horse Power	Year
1.0 i	954 CCM	45 HP	05/1996 - 10/1999
1.1 i	1124 CCM	60 HP	05/1996 - 07/2004
1.4 i	1360 CCM	75 HP	05/1996 - 07/2004
1.6 i	1587 CCM	89 HP	05/1996 - 10/1999
1.6 S16	1587 CCM	118 HP	05/1996 - 07/2004
1.6 i	1587 CCM	101 HP	05/1996 - 01/2001
1.5 D	1527 CCM	55 HP	05/1996 - 03/2001
1.1 i	1124 CCM	54 HP	01/1997 - 03/2001
1.0 i	954 CCM	50 HP	04/1996 - 03/2001
1.5 D	1527 CCM	57 HP	04/1998 - 07/2004
Electric		27 HP	04/1996 - 07/2004
1.6 S16	1587 CCM	120 HP	04/1998 - 09/2001

106 Van II Hatchback Van (1S_)

Description	Cylinder Capacity	Horse Power	Year
Electric		27 HP	04/1996 - 03/2001
1.5 D	1527 CCM	57 HP	06/1996 - 03/2001

206 Hatchback (2A/C)

Description	Cylinder Capacity	Horse Power	Year
1.1 i	1124 CCM	60 HP	09/1998 - 02/2007
1.4 i	1360 CCM	75 HP	09/1998 - 12/2012
1.6 i	1587 CCM	89 HP	09/1998 - 12/2000
1.9 D	1868 CCM	69 HP	09/1998 - 11/2001
1.4 HDi eco 70	1398 CCM	68 HP	09/2001 - 04/2009
1.1	1124 CCM	54 HP	08/1998 - 07/2000
1.4 HDi	1398 CCM	69 HP	09/2002 - 02/2007

206 Van

Description	Cylinder Capacity	Horse Power	Year
1.4 HDi	1398 CCM	68 HP	09/2001 - 03/2009
1.9 D	1868 CCM	69 HP	04/1999 - 05/2007

206 SW (2E/K)

Description	Cylinder Capacity	Horse Power	Year
1.4	1360 CCM	75 HP	07/2002 - 02/2007

206 Saloon

Description	Cylinder Capacity	Horse Power	Year
1.4	1360 CCM	75 HP	From 03/2007
1.4 HDi eco 70	1398 CCM	68 HP	From 09/2008

206+ (2L_, 2M_)

Description	Cylinder Capacity	Horse Power	Year
1.4 i	1360 CCM	73 HP	09/2010 - 06/2013
1.1	1124 CCM	60 HP	01/2009 - 06/2013
1.4 i (2LKFWA, 2MKFWA)	1360 CCM	75 HP	01/2009 - 08/2013
1.4 HDi eco 70	1398 CCM	68 HP	01/2009 - 06/2013

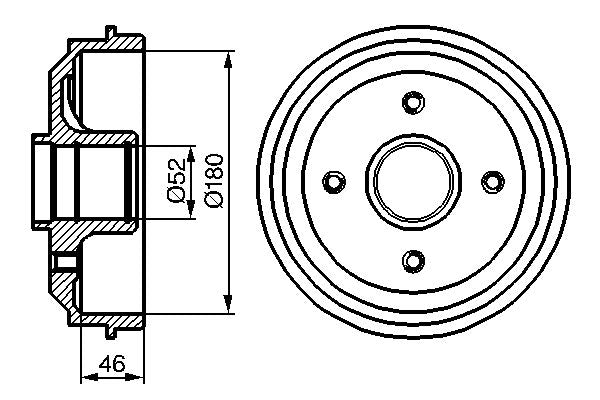

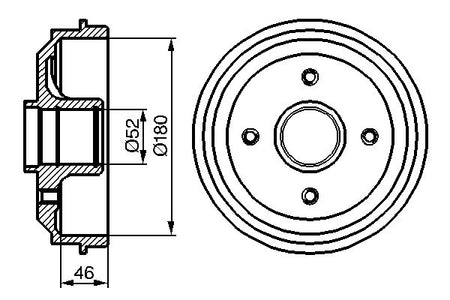

The Bosch 0986477116 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 180 mm inner brake drum diameter, 212 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 180

Outer brake drum diameter [mm] : 212

Inner brake drum height [mm] : 46

Total brake drum height [mm] : 80

Bolt Hole Circle Ø [mm] : 108

Number of Holes : 4

Centering Diameter [mm] : 52

Supplementary Article/Supplementary Info 2 : without wheel bearing

APEC : DRM9142
BLUE PRINT : ADBP470016
BORG & BECK : BBR7099
BREMBO : 14.7093.10
FEBI BILSTEIN : 10537
FTE : 9190007
HELLA : 8DT 355 301-281
HELLA : 8DT 355 302-811
MEYLE : 11-15 523 0031
MINTEX : MBD035
TEXTAR : 94014200
TEXTAR : 94041800
TRW : DB4159
TRW : DB4159B

Bosch 0986477116 Brake Drum
