BOSCH

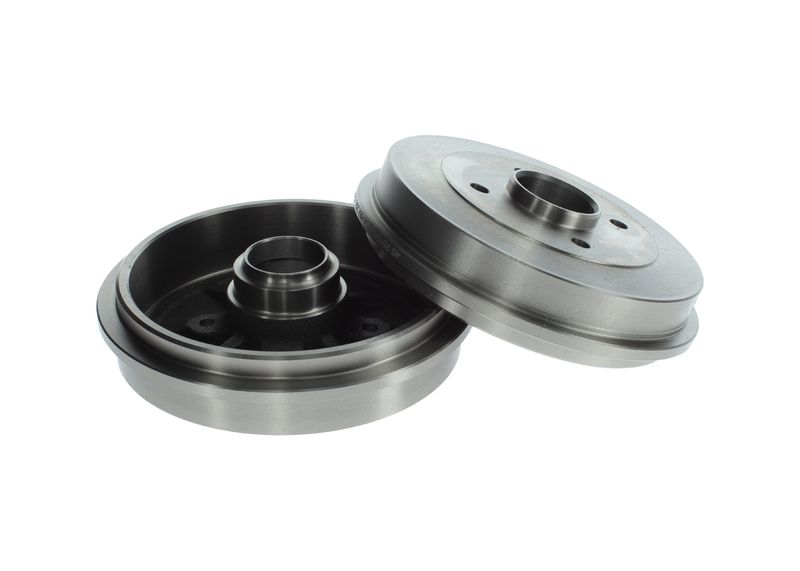

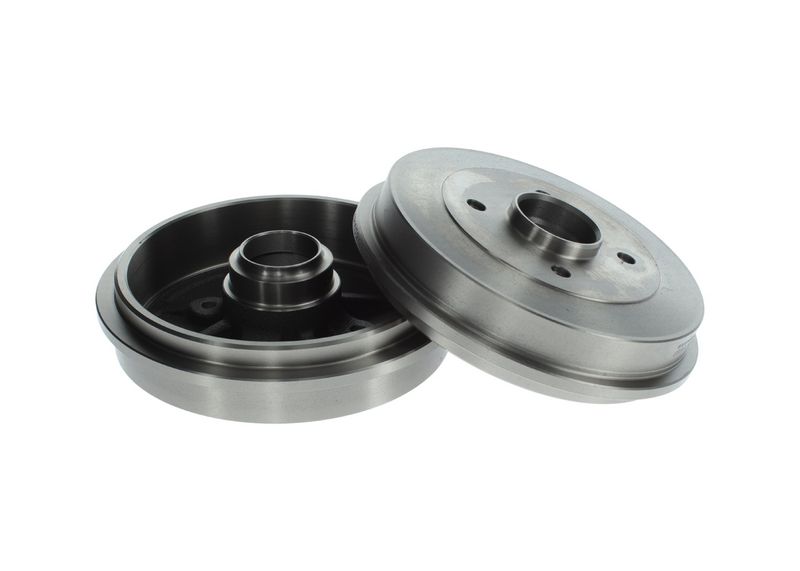

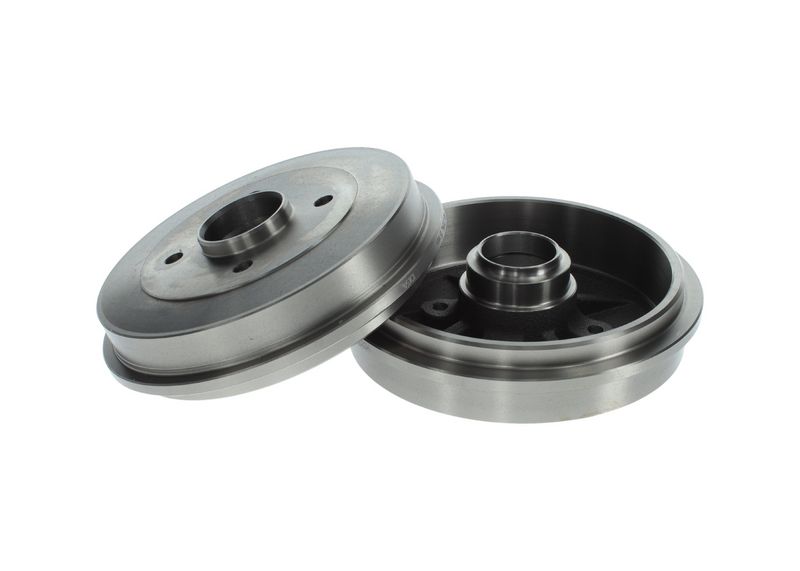

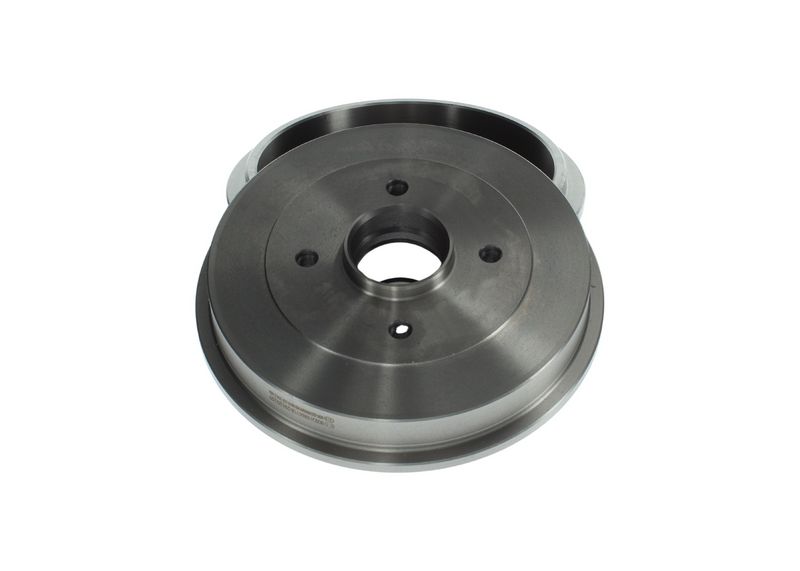

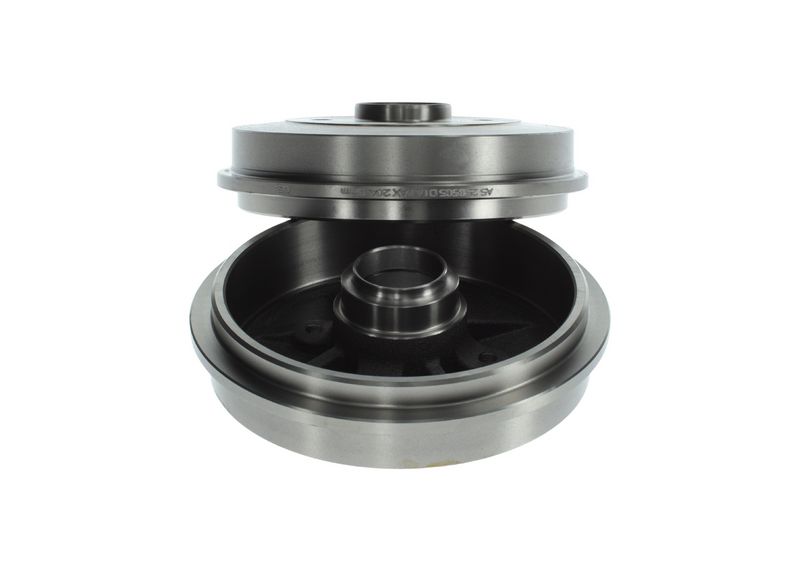

Bosch 0986477126 Brake Drum

SKU: 0986477126

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£104.65 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN

XSARA (N1)

Description	Cylinder Capacity	Horse Power	Year
1.8 i	1761 CCM	90 HP	04/1997 - 09/2000
1.8 i Aut.	1761 CCM	101 HP	04/1997 - 09/2000
1.4 i	1360 CCM	75 HP	04/1997 - 03/2005
1.5 D	1527 CCM	57 HP	04/1997 - 09/2000
1.6 i	1587 CCM	88 HP	04/1997 - 09/2000
1.9 TD	1905 CCM	90 HP	04/1997 - 09/2000
1.8 D	1769 CCM	58 HP	04/1997 - 09/2000
1.9 D	1905 CCM	68 HP	04/1997 - 09/2000
1.9 SD	1905 CCM	75 HP	01/1998 - 09/2000
1.9 D	1868 CCM	70 HP	07/1998 - 03/2005

XSARA Coupe (N0)

Description	Cylinder Capacity	Horse Power	Year
1.8 i	1761 CCM	90 HP	02/1998 - 09/2000
1.4 i	1360 CCM	75 HP	03/1998 - 03/2005
1.9 TD	1905 CCM	90 HP	02/1998 - 09/2000
1.9 D	1868 CCM	70 HP	02/1999 - 03/2005
1.9 D	1905 CCM	68 HP	02/1998 - 09/2000
1.6 i	1587 CCM	88 HP	02/1998 - 09/2000
1.8 i	1761 CCM	101 HP	02/1998 - 09/2000
1.4 HDi	1398 CCM	68 HP	01/2003 - 03/2005

XSARA Hatchback Van (N3_)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	88 HP	05/1998 - 08/2000

ZX (N2)

Description	Cylinder Capacity	Horse Power	Year
1.4 i	1360 CCM	75 HP	03/1991 - 06/1997
1.6 i	1580 CCM	88 HP	03/1991 - 06/1997
1.8 i	1761 CCM	101 HP	07/1992 - 06/1997
1.9 D	1905 CCM	68 HP	07/1993 - 06/1997
1.8 i 16V	1761 CCM	110 HP	01/1996 - 06/1997
1.4	1360 CCM	75 HP	03/1991 - 06/1997
1.8 D	1769 CCM	60 HP	06/1993 - 06/1997

PEUGEOT

306 Hatchback (7A, 7C, N3, N5)

Description	Cylinder Capacity	Horse Power	Year
1.9 DT	1905 CCM	90 HP	05/1993 - 05/2001
1.1	1124 CCM	60 HP	05/1993 - 05/2001
1.4	1360 CCM	75 HP	04/1993 - 07/2001
1.6	1587 CCM	89 HP	05/1993 - 10/2000
1.9 D	1905 CCM	68 HP	06/1994 - 05/2001
1.9 D	1905 CCM	75 HP	03/1998 - 05/2001
1.9 D	1868 CCM	69 HP	09/1998 - 05/2001

306 (7B, N3, N5)

Description	Cylinder Capacity	Horse Power	Year
1.1	1124 CCM	60 HP	06/1994 - 05/2001
1.4 SL	1360 CCM	75 HP	06/1994 - 05/2001
1.8 ST	1761 CCM	101 HP	06/1994 - 05/2001
1.6 SR	1587 CCM	89 HP	06/1994 - 10/2000
1.9 SRDT	1905 CCM	90 HP	06/1994 - 05/2001
1.9 SLD	1905 CCM	68 HP	06/1994 - 05/2001
1.9 D	1905 CCM	75 HP	03/1998 - 05/2001
1.9 D	1868 CCM	69 HP	09/1998 - 05/2001

306 Hatchback Van

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	68 HP	05/1997 - 05/1999
1.9 D	1868 CCM	69 HP	02/1999 - 08/2001
1.9 STD	1905 CCM	69 HP	02/1994 - 10/1995

306 Convertible (7D, N3, N5)

Description	Cylinder Capacity	Horse Power	Year
1.8	1761 CCM	101 HP	03/1994 - 04/2002
1.6	1587 CCM	89 HP	04/1996 - 10/2000
1.6	1587 CCM	98 HP	10/2000 - 04/2002
1.8	1761 CCM	101 HP	05/1997 - 04/1999

The Bosch 0986477126 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 203 mm inner brake drum diameter, 247 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

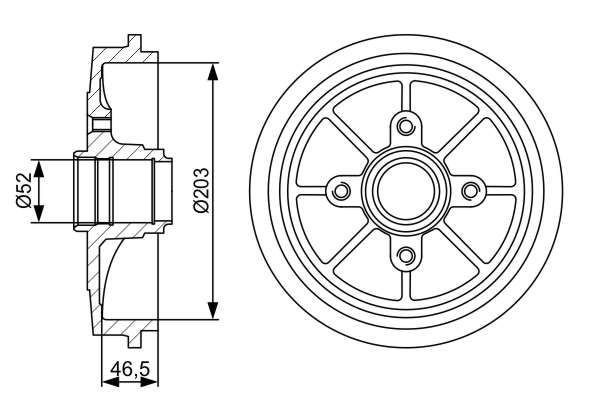

Inner brake drum diameter [mm] : 203

Outer brake drum diameter [mm] : 247

Inner brake drum height [mm] : 46

Total brake drum height [mm] : 81

Bolt Hole Circle Ø [mm] : 108

Number of Holes : 4

Centering Diameter [mm] : 52

Supplementary Article/Supplementary Info 2 : without wheel bearing

Bosch 0986477126 Brake Drum
