BOSCH

Bosch 0986477135 Brake Drum

SKU: 0986477135

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£62.56 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL

CORSA C (X01)

Description	Cylinder Capacity	Horse Power	Year
1.0 (F08, F68)	973 CCM	58 HP	09/2000 - 06/2003
1.2 (F08, F68)	1199 CCM	75 HP	09/2000 - 12/2009
1.7 DTI (F08, F68)	1686 CCM	75 HP	09/2000 - 12/2009
1.7 DI (F08, F68)	1686 CCM	65 HP	09/2000 - 12/2009
1.4 (F08, F68)	1389 CCM	90 HP	09/2000 - 12/2009
1.0 (F08, F68)	998 CCM	60 HP	06/2003 - 12/2009
1.3 CDTI (F08, F68)	1248 CCM	70 HP	06/2003 - 12/2009
1.2 Twinport (F08, F68)	1229 CCM	80 HP	07/2004 - 12/2009
1.4 Twinport (F08, F68)	1364 CCM	90 HP	06/2003 - 12/2009

CORSA C Hatchback Van (X01)

Description	Cylinder Capacity	Horse Power	Year
1.2 16V (F08, W5L)	1199 CCM	75 HP	09/2000 - 07/2003
1.7 DI 16V (F08, W5L)	1686 CCM	65 HP	09/2000 - 07/2003
1.7 DTI 16V (F08, W5L)	1686 CCM	75 HP	09/2000 - 07/2003
1.3 CDTI 16V (F08, W5L)	1248 CCM	69 HP	07/2005 - 06/2006
1.2 (F08, W5L)	1229 CCM	80 HP	07/2005 - 06/2006

TIGRA TwinTop (X04)

Description	Cylinder Capacity	Horse Power	Year
1.4 (R97)	1364 CCM	90 HP	06/2004 - 12/2010
1.8 (R97)	1796 CCM	125 HP	06/2004 - 12/2010
1.3 CDTI (R97)	1248 CCM	69 HP	06/2004 - 12/2010

VAUXHALL

CORSA Mk II (C) (X01)

Description	Cylinder Capacity	Horse Power	Year
1.4 Twinport (F08, F68)	1364 CCM	90 HP	06/2003 - 10/2006
1.2 Twinport (F08, F68)	1229 CCM	80 HP	07/2004 - 10/2006
1.0 12V (F08, F68)	973 CCM	58 HP	09/2000 - 10/2003
1.2 16V (F08, F68)	1199 CCM	75 HP	09/2000 - 10/2006
1.8 16V (F08, F68)	1796 CCM	125 HP	08/2000 - 09/2006
1.7 DI 16V (F08, F68)	1686 CCM	65 HP	08/2000 - 09/2006
1.7 DTI 16V (F08, F68)	1686 CCM	75 HP	08/2000 - 09/2006
1.4 16V (F08, F68)	1389 CCM	90 HP	09/2000 - 10/2006
1.3 CDTI 16V (F08, F68)	1248 CCM	69 HP	10/2003 - 04/2007
1.2 16V Dualfuel (F08)	1199 CCM	75 HP	08/2001 - 10/2006
1.0 12V (F08, F68)	998 CCM	60 HP	11/2003 - 10/2006

CORSAVAN Mk II (C) Hatchback Van (X01)

Description	Cylinder Capacity	Horse Power	Year
1.2 16V (F08)	1199 CCM	75 HP	09/2000 - 06/2006
1.7 DI 16V (F08)	1686 CCM	65 HP	09/2000 - 06/2006
1.7 DTI 16V (F08)	1686 CCM	75 HP	09/2000 - 06/2006
1.3 CDTI 16V (F08)	1248 CCM	70 HP	04/2004 - 06/2006
1.2 16V Dualfuel (F08)	1199 CCM	75 HP	08/2001 - 06/2006
1.4 (F08)	1364 CCM	89 HP	11/2003 - 06/2006
1.2 16V Dualfuel (F08)	1229 CCM	80 HP	07/2004 - 12/2005
1.2 16V (F08)	1229 CCM	80 HP	07/2004 - 11/2006

TIGRA TwinTop (X04)

Description	Cylinder Capacity	Horse Power	Year
1.4	1364 CCM	90 HP	06/2004 - 08/2009
1.8	1796 CCM	125 HP	06/2004 - 08/2009
1.3 CDTI	1248 CCM	69 HP	06/2004 - 08/2009

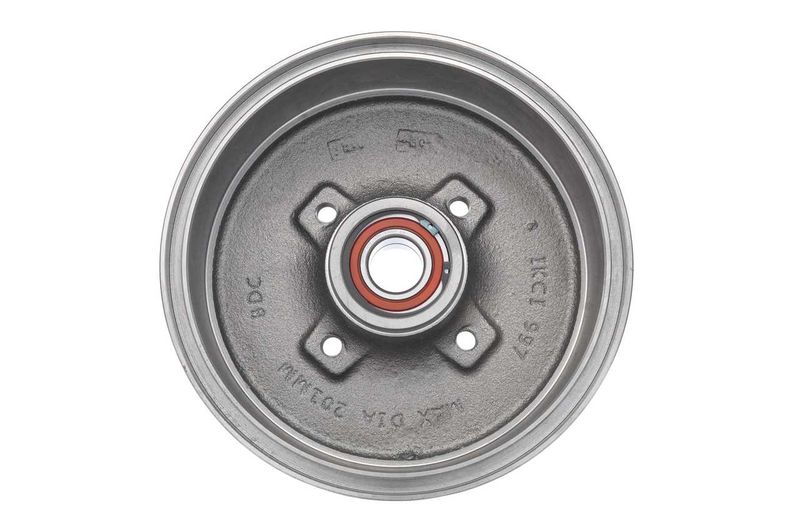

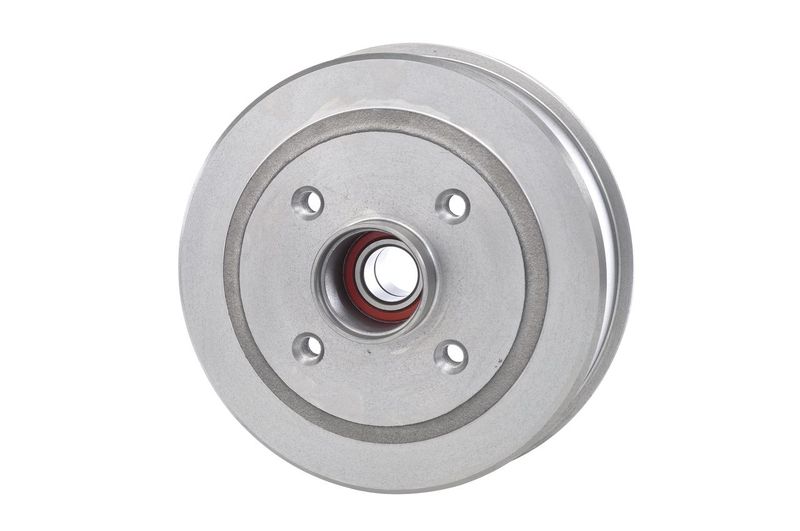

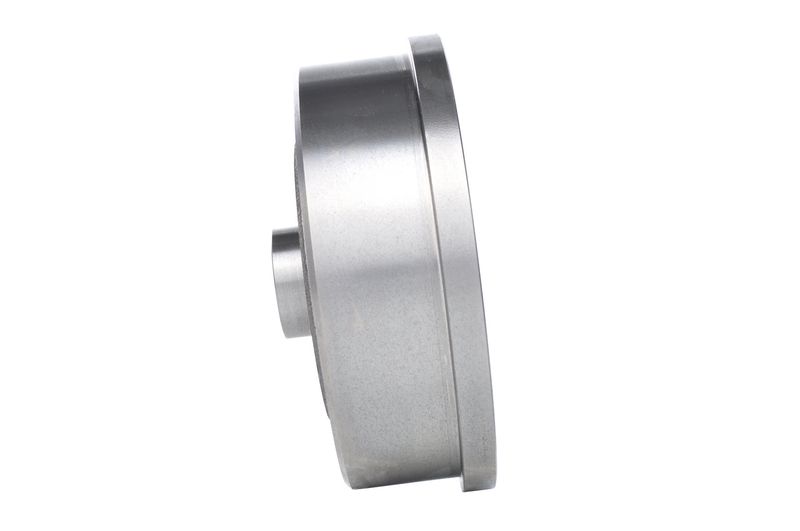

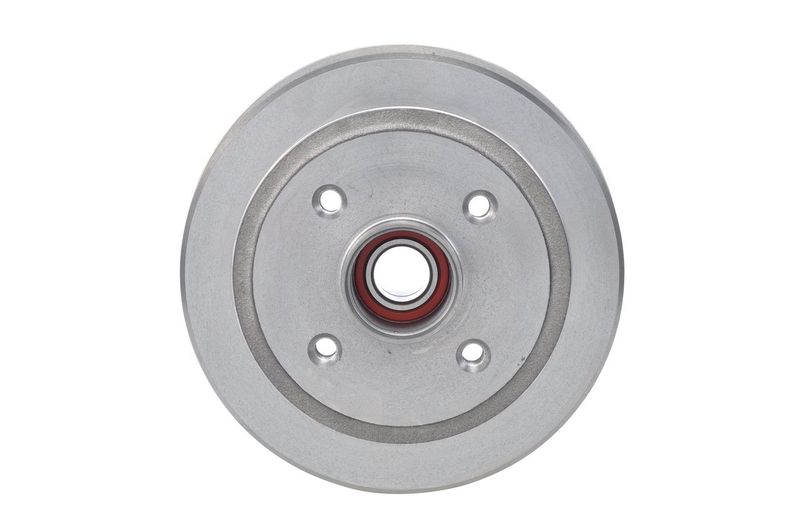

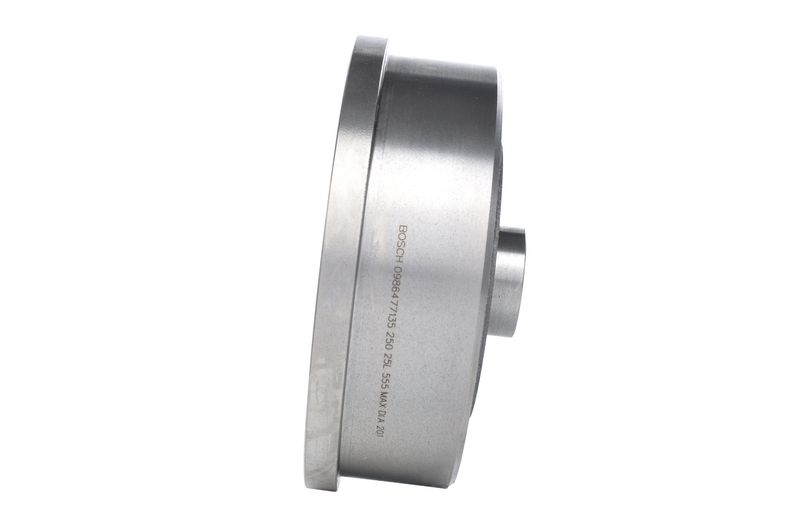

The Bosch 0986477135 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 200 mm inner brake drum diameter, 228 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

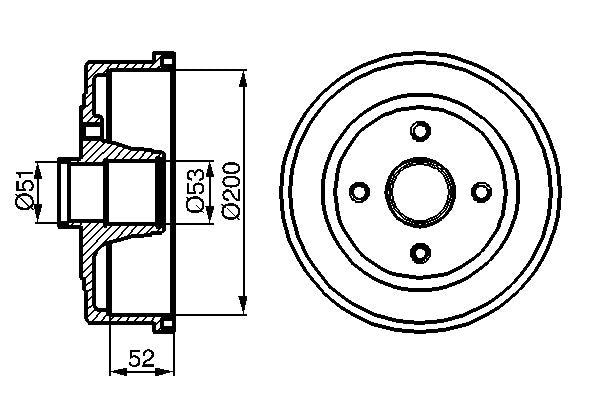

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 200

Outer brake drum diameter [mm] : 228

Inner brake drum height [mm] : 54

Total brake drum height [mm] : 94.2

Bolt Hole Circle Ø [mm] : 100

Number of Holes : 4

Centering Diameter [mm] : 52.9

Supplementary Article/Supplementary Info 2 : with wheel bearing

APEC : BDR9014
APEC : DRM9924
BLUE PRINT : ADBP470001
BORG & BECK : BBR7124
BREMBO : 14.E311.10
BREMBO : 14.E311.50
FEBI BILSTEIN : 171003
FTE : 9190059
HELLA : 8DT 355 300-411
HELLA : 8DT 355 302-731
MINTEX : MBD200
National : NDR244
TEXTAR : 94024200
TEXTAR : 94041100
TRW : DB4302
TRW : DB4302B

Bosch 0986477135 Brake Drum
