BOSCH

Bosch 0986477148 Brake Drum

SKU: 0986477148
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£90.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C1 (PM_, PN_)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 68 HP 06/2005 - 09/2014
1.4 HDi 1398 CCM 54 HP 06/2005 - 09/2014
C1 II (PA_, PS_)
Description Cylinder Capacity Horse Power Year
1.0 VTi 68 998 CCM 69 HP 04/2014 - 04/2018
1.2 VTi 82 1199 CCM 82 HP 04/2014 - 04/2018
PEUGEOT
107 (PM_, PN_)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 68 HP 06/2005 - 05/2014
1.4 HDi 1398 CCM 54 HP 06/2005 - 05/2014
108
Description Cylinder Capacity Horse Power Year
1.0 VTi 998 CCM 69 HP From 05/2014
1.2 1199 CCM 82 HP From 05/2014
SUZUKI
SPLASH (EX)
Description Cylinder Capacity Horse Power Year
1.2 VVT (A5B412) 1242 CCM 94 HP From 09/2010
1.0 (A5B310) 996 CCM 68 HP From 06/2011
1.2 VVT (A5B412) 1242 CCM 90 HP From 06/2011
1.0 (A5B310) 996 CCM 65 HP From 01/2008
1.2 (A5B412) 1242 CCM 86 HP From 01/2008
1.3 CDTI (A5B413D) 1248 CCM 75 HP From 01/2008
1.2 VVT (A5B412) 1242 CCM 91 HP From 08/2012
SWIFT III (MZ, EZ)
Description Cylinder Capacity Horse Power Year
1.5 (RS415, ZC21S) 1490 CCM 102 HP From 02/2005
1.3 (RS413, ZC11S) 1328 CCM 92 HP From 02/2005
1.3 DDiS (RS413D) 1248 CCM 69 HP From 08/2005
1.3 DDiS (RS413D) 1248 CCM 75 HP 08/2005 - 12/2011
1.3 (RS413, ZC11S) 1328 CCM 91 HP 02/2005 - 06/2015
TOYOTA
AYGO (_B1_)
Description Cylinder Capacity Horse Power Year
1.0 (KGB10_, KGB10R) 998 CCM 68 HP 07/2005 - 05/2014
1.4 D-4D (WNB10_, WNB10R) 1398 CCM 54 HP 07/2005 - 08/2010
AYGO (_B4_)
Description Cylinder Capacity Horse Power Year
1.0 (KGB40) 998 CCM 69 HP From 05/2014

The Bosch 0986477148 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 200 mm inner brake drum diameter, 233 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

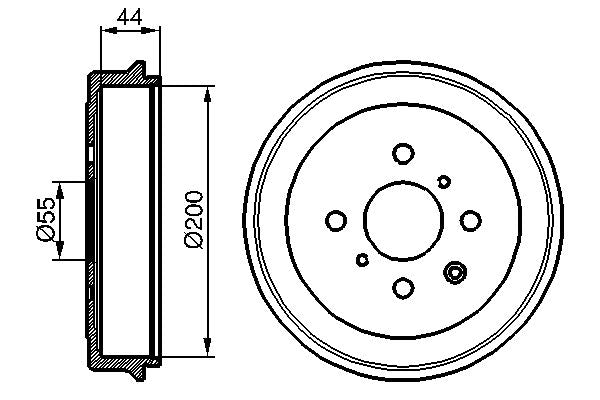

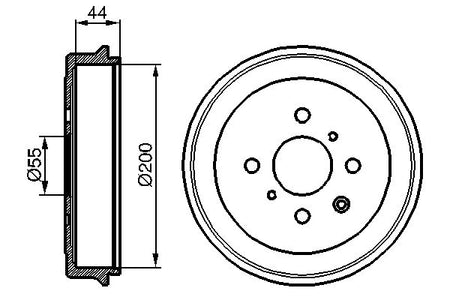

Function : Brake Drum
Fitting Position : Rear Axle
Inner brake drum diameter [mm] : 200
Outer brake drum diameter [mm] : 233
Inner brake drum height [mm] : 44
Total brake drum height [mm] : 53.5
Bolt Hole Circle Ø [mm] : 100
Number of Holes : 4
Centering Diameter [mm] : 55
  • Vendor BOSCH
  • SKU 0986477148
  • Barcode 4047024172340
  • CITROËN : 4247 48
  • PEUGEOT : 4247 48
  • SUZUKI : 43511-62J10
  • TOYOTA : 424310H010 424748
  • BLUE PRINT : ADT34724
  • BORG & BECK : BBR7120
  • BORG & BECK : BBR7268
  • BREMBO : 14.E276.10
  • DELPHI : BF506
  • FTE : 9190013
  • HELLA : 8DT 355 300-581
  • MEYLE : 11-15 523 0005
  • MINTEX : MBD303
  • National : NDR349
  • National : NDR376
  • TEXTAR : 94026500
  • TRW : DB4362
  • BOSCH : DB219
