Bosch 0986477197 Brake Drum
Your selected vehicle
Regular price
£128.49
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

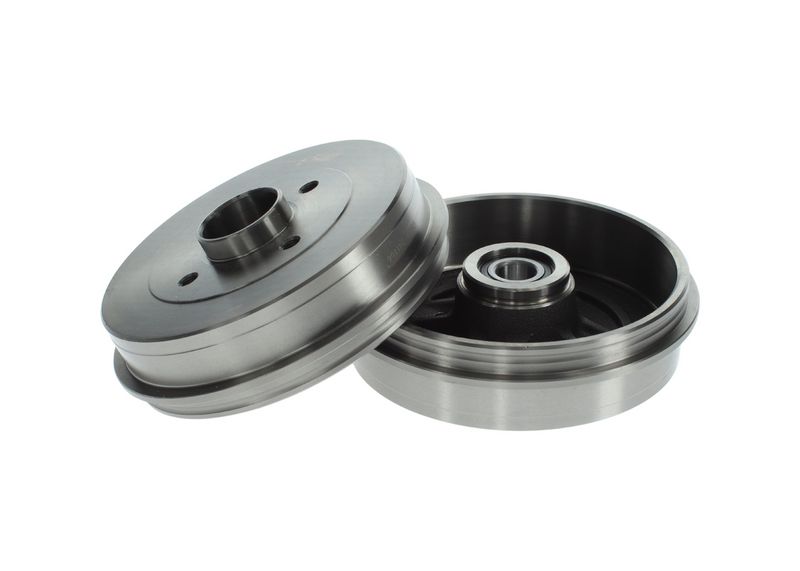

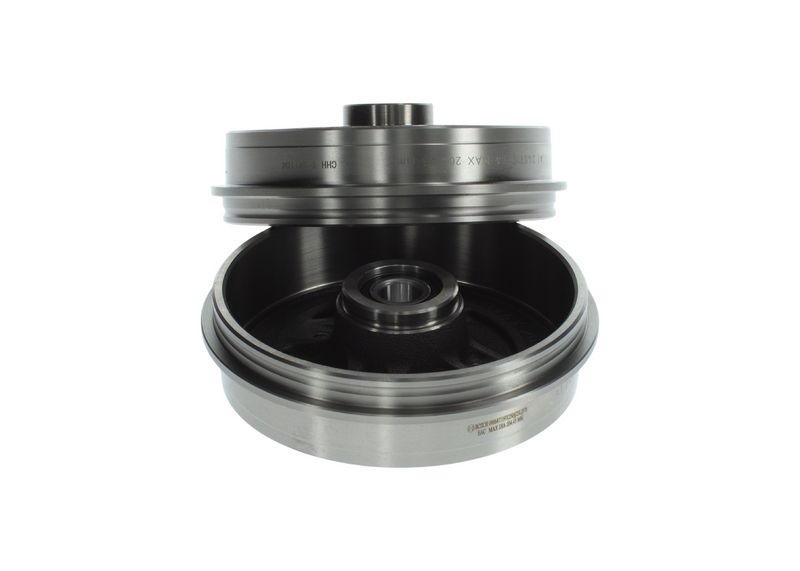

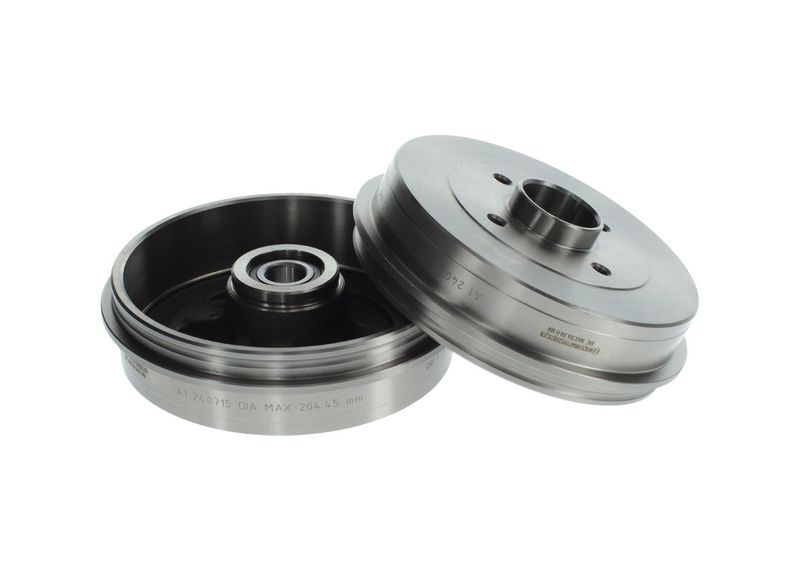

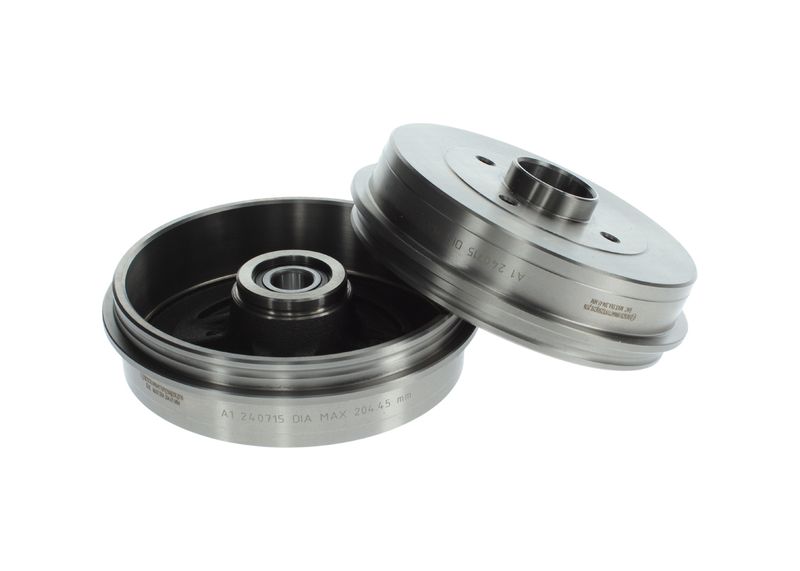

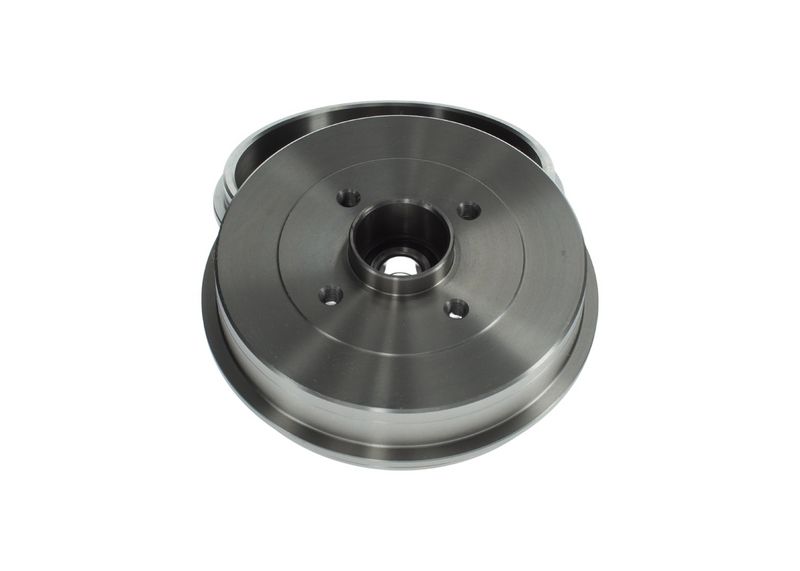

The Bosch 0986477197 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 203.3 mm inner brake drum diameter, 234 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Drum
Fitting Position :
Rear Axle

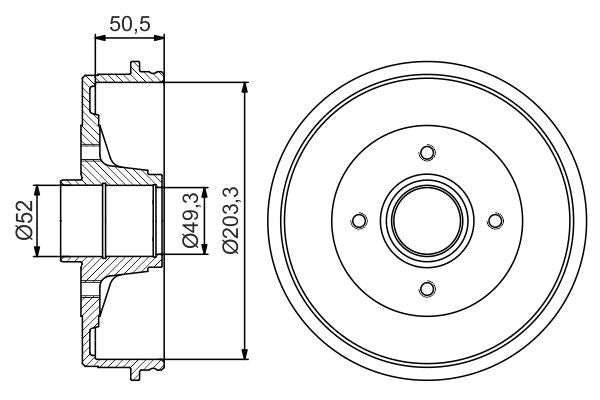

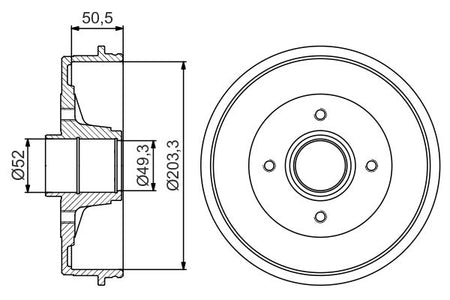

Inner brake drum diameter [mm] :
203.3
Outer brake drum diameter [mm] :
234
Inner brake drum height [mm] :
50
Total brake drum height [mm] :
76
Bolt Hole Circle Ø [mm] :
100
Number of Holes :
4
Centering Diameter [mm] :
52
Supplementary Article/Supplementary Info 2 :
with wheel bearing
- Vendor BOSCH
- SKU 0986477197
- NISSAN : 43206 AX650
- BLUE PRINT : ADN14717
- DELPHI : BF427
- DELPHI : BF480
- FTE : 9190012
- MEYLE : 36-15 523 0058
- MINTEX : MBD261
- TEXTAR : 94026800
- TRW : DB4340
- TRW : DB4340B
- BOSCH : DB268
