BOSCH

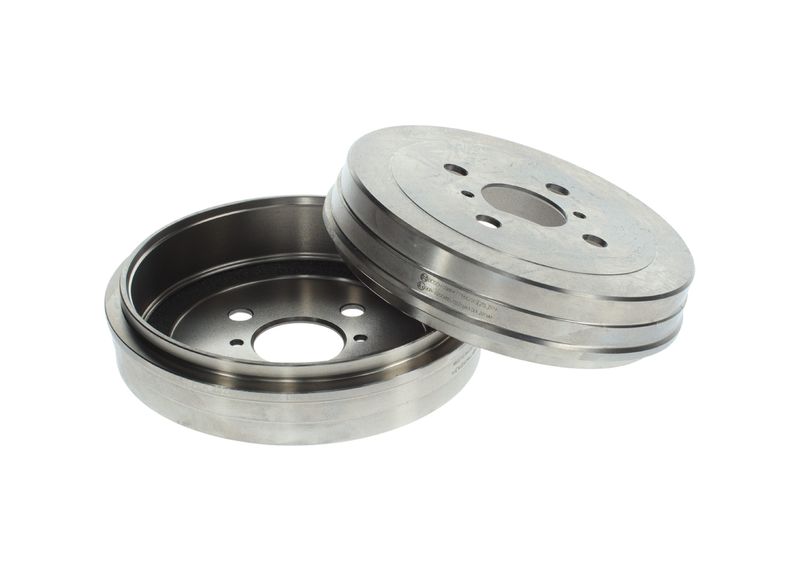

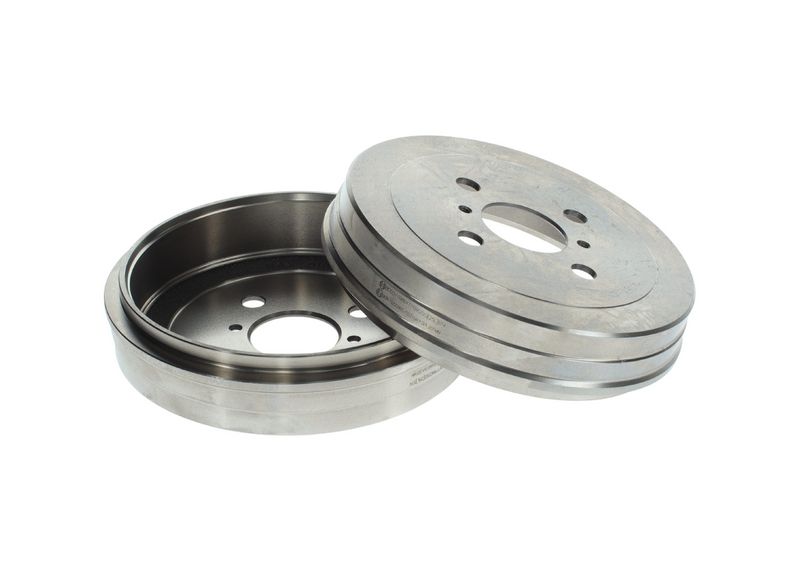

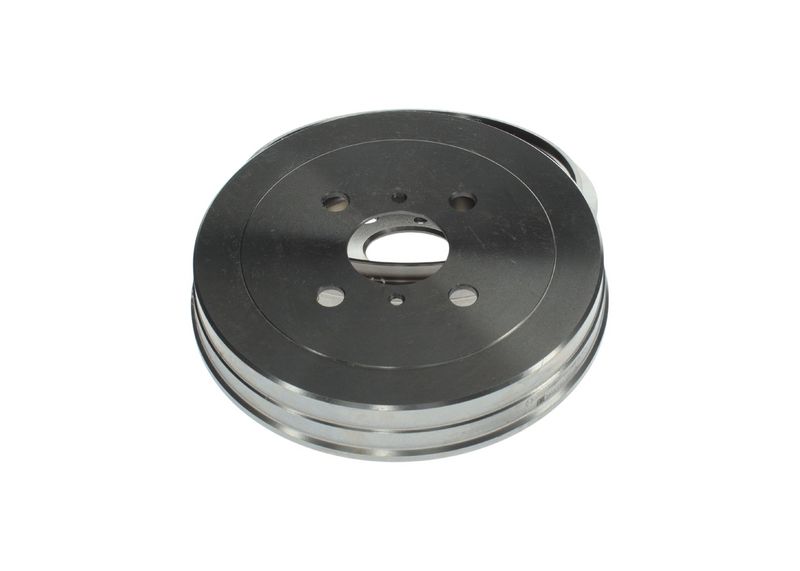

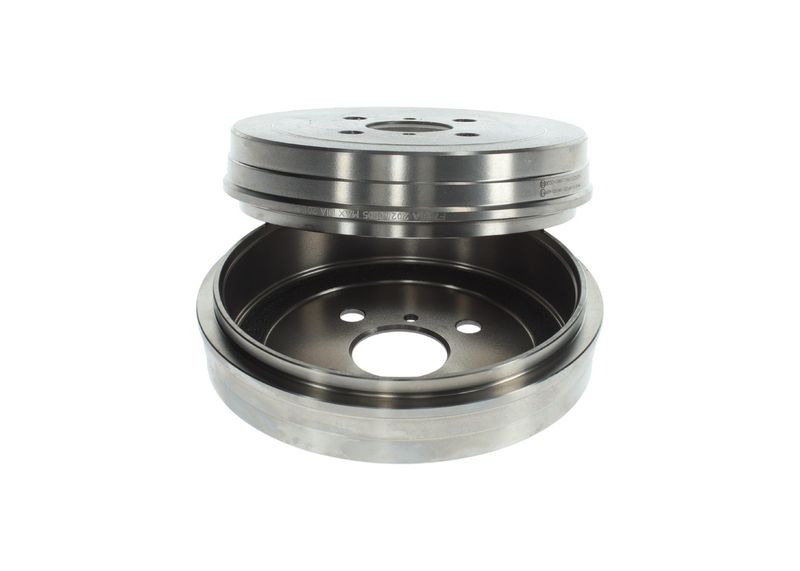

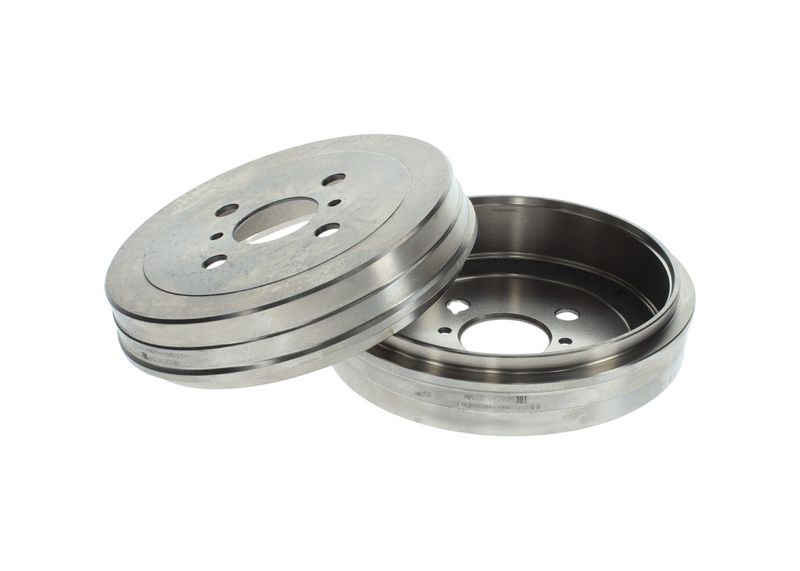

Bosch 0986477199 Brake Drum

SKU: 0986477199

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£101.60 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

YARIS/VITZ (_P1_)

Description	Cylinder Capacity	Horse Power	Year
1.4 D-4D (NLP10_, NLP10R)	1364 CCM	75 HP	10/2001 - 09/2005
1.3 (SCP12_, SCP13_, SCP12R, SCP13R)	1298 CCM	87 HP	04/2002 - 09/2005
1.0 (SCP10_, SCP10R)	998 CCM	65 HP	03/2003 - 09/2005

The Bosch 0986477199 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 200 mm inner brake drum diameter, 233 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

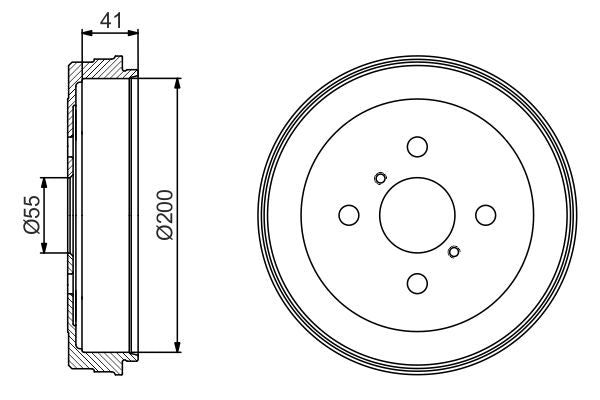

Inner brake drum diameter [mm] : 200

Outer brake drum diameter [mm] : 233

Inner brake drum height [mm] : 41

Total brake drum height [mm] : 51.5

Bolt Hole Circle Ø [mm] : 100

Number of Holes : 4

Centering Diameter [mm] : 55

APEC : BDR9035
APEC : DRM9998
BLUE PRINT : ADT34728
BORG & BECK : BBR7231
DELPHI : BF530
HELLA : 8DT 355 301-751
MINTEX : MBD325
NAPA : NDR1028
National : NDR372
TEXTAR : 94034600
TRW : DB4339

Bosch 0986477199 Brake Drum
