BOSCH

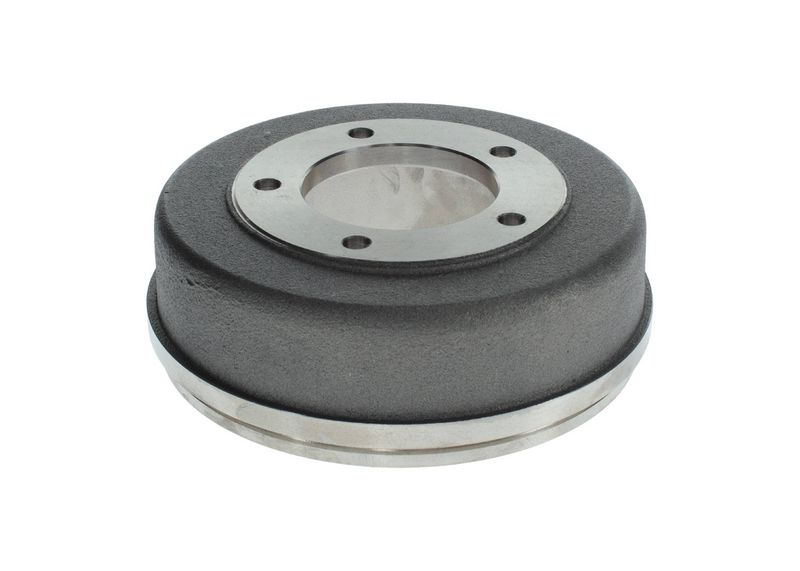

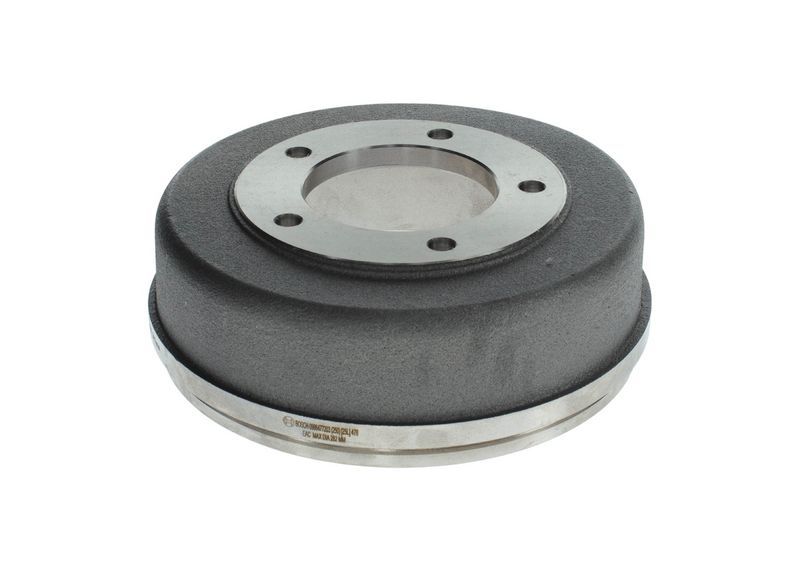

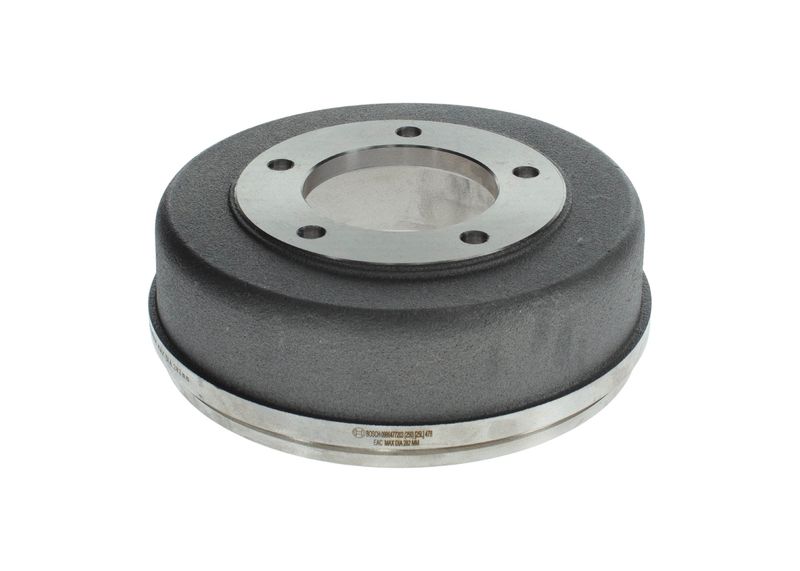

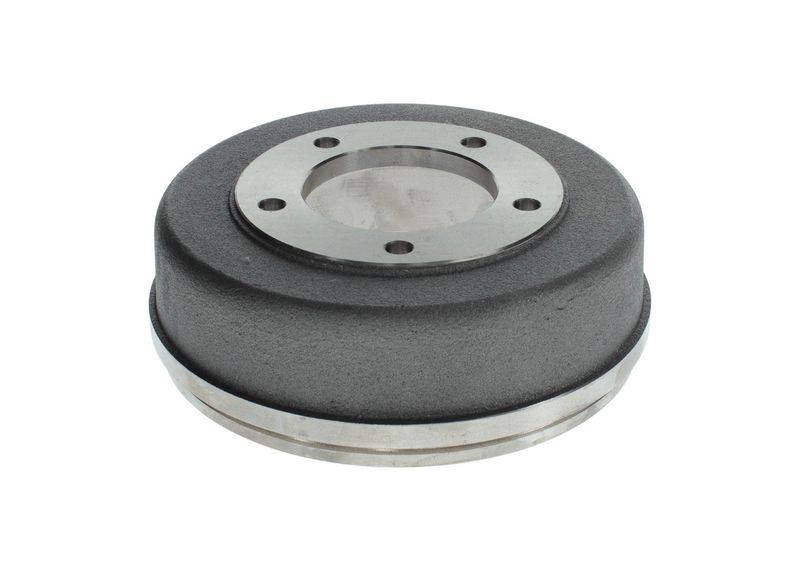

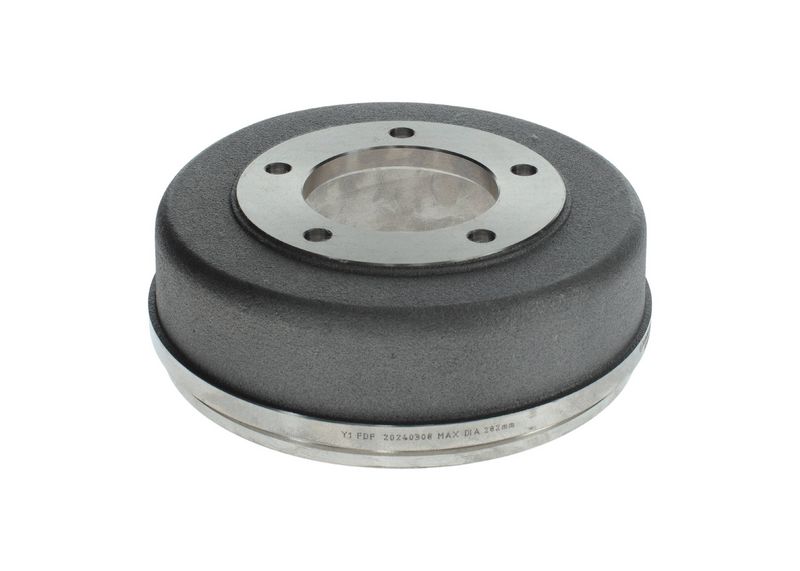

Bosch 0986477203 Brake Drum

Position: Rear

5.0/5 78 reviews

SKU: 0986477203

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£60.58 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details

Pay securely with

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

FORD

TRANSIT Platform/Chassis (FM_ _, FN_ _)

Description	Cylinder Capacity	Horse Power	Year
2.4 DI (F_A_, F_B_, F_C_, F_D_)	2402 CCM	90 HP	01/2000 - 05/2006
2.4 DI (F_A_, F_B_, F_C_, F_D_)	2402 CCM	120 HP	01/2000 - 05/2006
2.4 DI (F_A_, F_B_, F_C_, F_D_)	2402 CCM	75 HP	01/2000 - 05/2006
2.0 DI (F_E_, F_F_)	1998 CCM	100 HP	08/2000 - 05/2006
2.3 16V (F_A_, F_B_, F_C_, F_D_)	2295 CCM	146 HP	04/2001 - 05/2006
2.0 TDCi (F_E_, F_F_)	1998 CCM	125 HP	08/2002 - 05/2006
2.4 TDE	2402 CCM	125 HP	07/2001 - 05/2006
2.4 TDE	2402 CCM	115 HP	03/2004 - 05/2006
2.4 TDCi	2402 CCM	137 HP	03/2004 - 05/2006
2.3 BiFuel	2295 CCM	143 HP	03/2001 - 03/2006

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.4 DI RWD (F_B_, F_C_, F_A_)	2402 CCM	120 HP	01/2000 - 05/2006
2.4 DI (F_B_, F_C_, F_A_)	2402 CCM	90 HP	01/2000 - 05/2006
2.4 DI RWD (F_B_, F_C_)	2402 CCM	75 HP	01/2000 - 05/2006
2.3 16V RWD (F_B_, F_C_, F_A_)	2295 CCM	146 HP	08/2000 - 05/2006
2.4 TDE (F_C_, F_B_, F_A_)	2402 CCM	125 HP	07/2001 - 05/2006
2.4 TDE	2402 CCM	115 HP	03/2004 - 05/2006
2.4 TDCi	2402 CCM	137 HP	03/2004 - 05/2006

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.4 DI (FAA_, FAB_, FAC_, FAD_)	2402 CCM	90 HP	01/2000 - 05/2006
2.4 DI RWD (FAA_, FAB_, FAC_, FAD_)	2402 CCM	120 HP	01/2000 - 05/2006
2.4 DI RWD (FAA_, FAB_, FAC_, FAD_)	2402 CCM	75 HP	01/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_)	1998 CCM	100 HP	08/2000 - 05/2006
2.3 16V RWD (FAA_, FAB_, FAC_)	2295 CCM	146 HP	04/2001 - 05/2006
2.0 TDCi	1998 CCM	125 HP	08/2002 - 05/2006
2.4 TDE	2402 CCM	125 HP	07/2001 - 05/2006
2.4 TDE	2402 CCM	115 HP	03/2004 - 05/2006
2.4 TDCi	2402 CCM	137 HP	03/2004 - 05/2006
2.4 TD	2402 CCM	75 HP	08/2000 - 08/2003
2.3	2295 CCM	143 HP	03/2001 - 03/2006
2.3 BiFuel	2295 CCM	143 HP	03/2001 - 03/2006

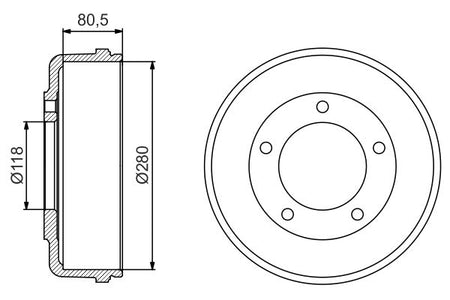

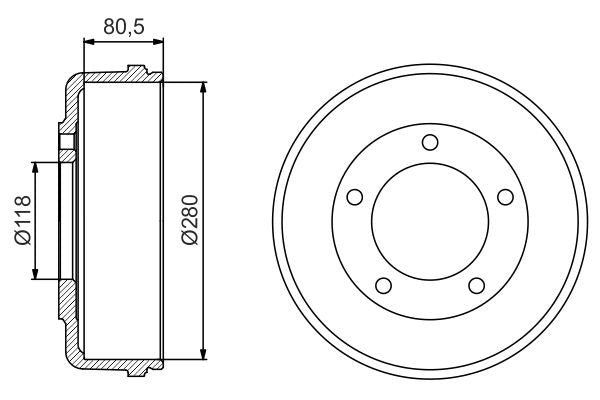

The Bosch 0986477203 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 280 mm inner brake drum diameter, 314 mm outer brake drum diameter, and 5 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 280

Outer brake drum diameter [mm] : 314

Inner brake drum height [mm] : 80

Total brake drum height [mm] : 105

Bolt Hole Circle Ø [mm] : 160

Number of Holes : 5

Centering Diameter [mm] : 118
