BOSCH

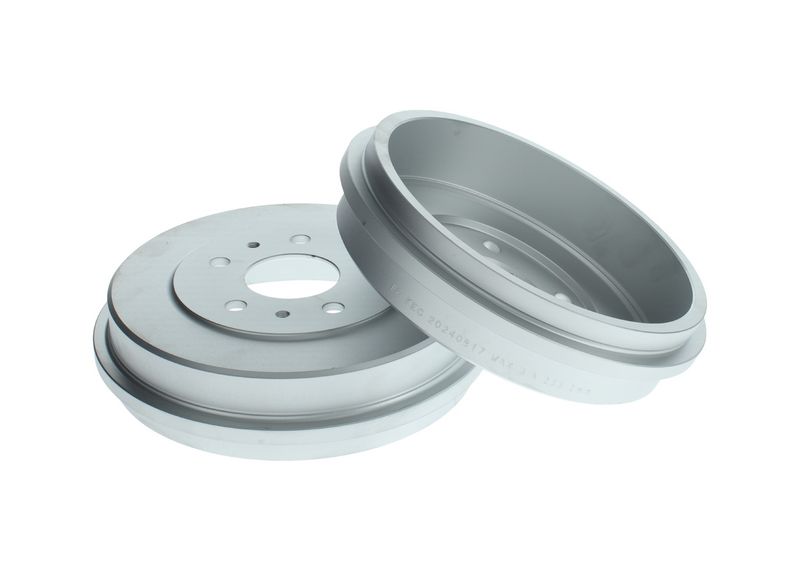

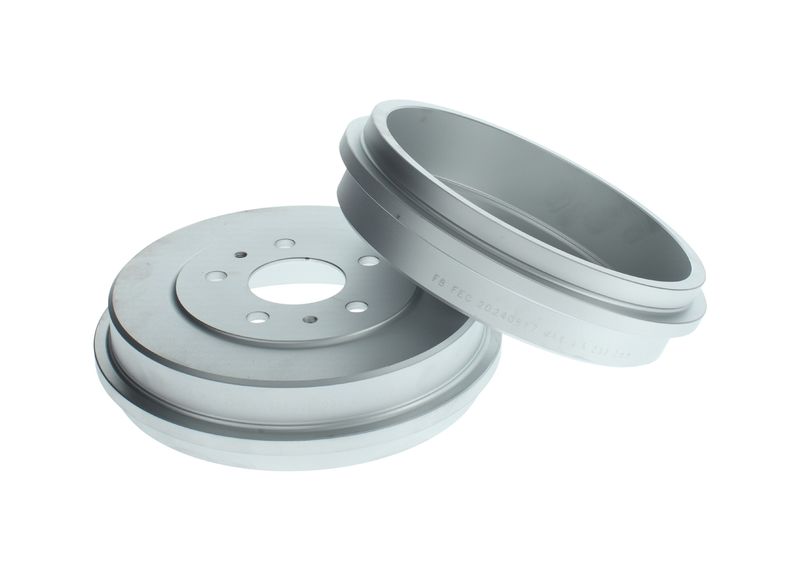

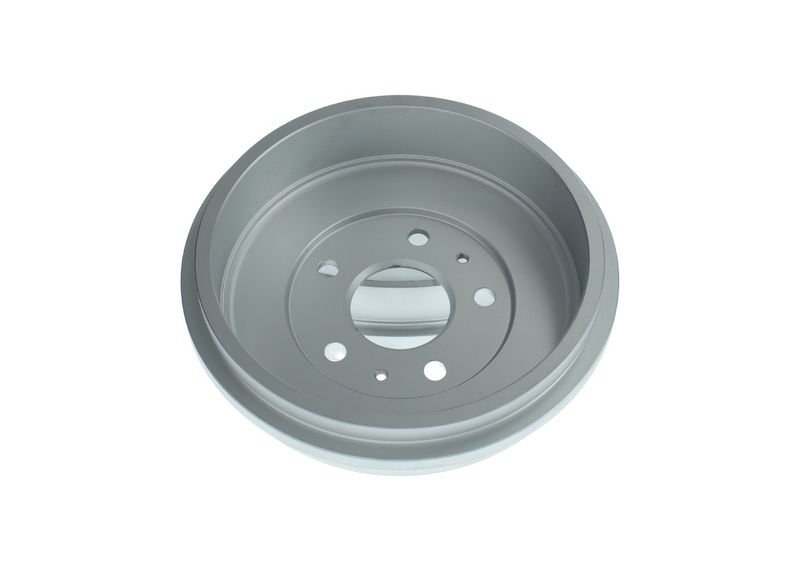

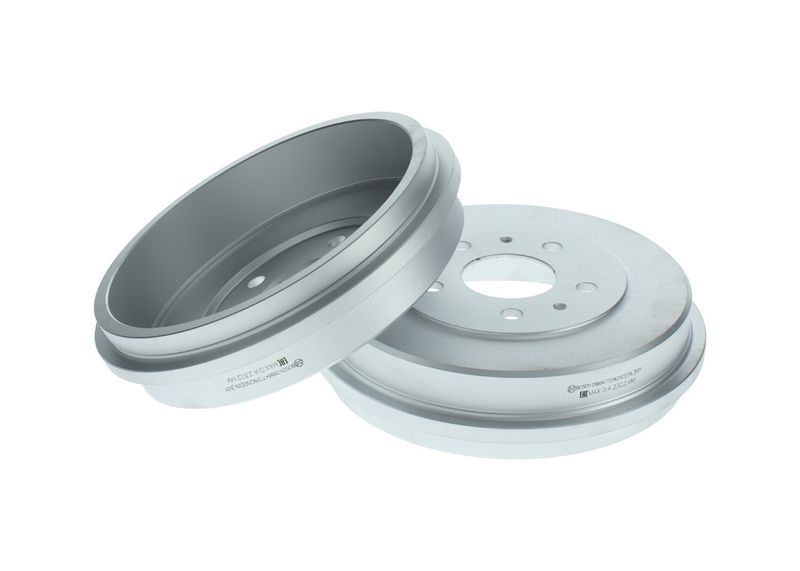

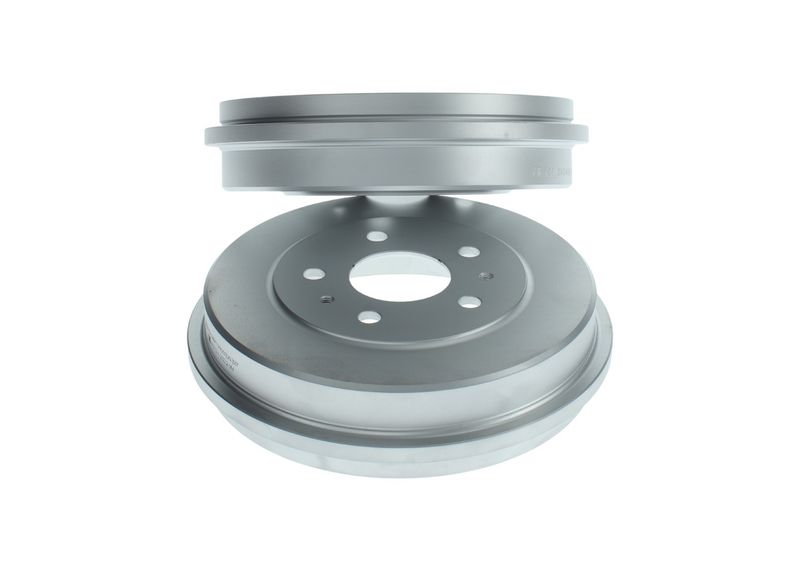

Bosch 0986477219 Brake Drum

Position: Rear
5.0/5 78 reviews
SKU: 0986477219

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£86.59 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

FORD
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 09/2012
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 10/2005 - 03/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Estate Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 101 HP 11/2004 - 07/2011
1.6 TDCi 1560 CCM 109 HP 07/2004 - 07/2011
1.6 Ti-VCT 1596 CCM 116 HP 09/2005 - 07/2011
1.6 1596 CCM 101 HP 09/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 09/2005 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 110 HP 12/2007 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 07/2011
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 07/2004 - 09/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.0 LPG 1999 CCM 145 HP 06/2008 - 07/2011
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 04/2005 - 09/2012
1.4 1388 CCM 80 HP 04/2005 - 09/2012
1.6 1596 CCM 100 HP 04/2005 - 09/2012
1.6 Ti 1596 CCM 115 HP 04/2005 - 09/2012
2.0 1999 CCM 145 HP 04/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 109 HP 04/2005 - 09/2012
1.8 TDCi 1753 CCM 115 HP 04/2005 - 09/2012
2.0 TDCi 1997 CCM 136 HP 04/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 06/2006 - 07/2011
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012

The Bosch 0986477219 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 228.3 mm inner brake drum diameter, 271 mm outer brake drum diameter, and 5 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Fitting Position : Rear Axle

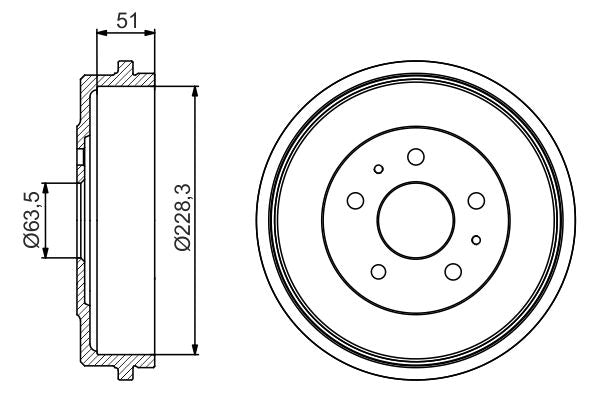

Inner brake drum diameter [mm] : 228.3
Outer brake drum diameter [mm] : 271
Inner brake drum height [mm] : 51
Total brake drum height [mm] : 66
Bolt Hole Circle Ø [mm] : 108
Number of Holes : 5
Centering Diameter [mm] : 63.5
  • Vendor BOSCH
  • SKU 0986477219
  • Barcode 4047025225779
  • FORD : 1327834 1458826 1743443 3M511126AC 3M511126BA 3M511126BB
  • BLUE PRINT : ADBP470002
  • BORG & BECK : BBR7212
  • DELPHI : BF568
  • FEBI BILSTEIN : 171014
  • HELLA : 8DT 355 300-661
  • MEYLE : 715 523 0016
  • MINTEX : MBD262
  • National : NDR345
  • TEXTAR : 94027400
  • TRW : DB4392
  • BOSCH : DB290
