Bosch 0986477227 Brake Drum

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986477227

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£158.65 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

LAND ROVER

FREELANDER I (L314)

Description	Cylinder Capacity	Horse Power	Year
1.8 i 16V 4x4	1796 CCM	120 HP	02/1998 - 11/2000
2.0 DI 4x4	1994 CCM	98 HP	02/1998 - 11/2000
2.5 V6 4x4	2497 CCM	177 HP	11/2000 - 10/2006
2.0 Td4 4x4	1951 CCM	112 HP	11/2000 - 10/2006
1.8 16V 4x4	1796 CCM	117 HP	04/1998 - 10/2006
2.0 Td4 4x4	1951 CCM	109 HP	03/2001 - 10/2006

FREELANDER I Soft Top (L314)

Description	Cylinder Capacity	Horse Power	Year
1.8 i 16V 4x4	1796 CCM	120 HP	02/1998 - 10/2006
2.0 DI 4x4	1994 CCM	98 HP	02/1998 - 10/2006
1.8 4x4	1796 CCM	117 HP	10/2000 - 10/2006
2.0 TD4 4x4	1951 CCM	112 HP	10/2000 - 10/2006
2.5 V6 4x4	2497 CCM	177 HP	11/2000 - 10/2006

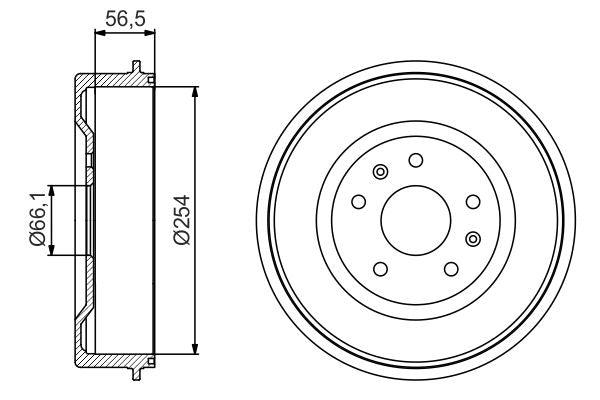

The Bosch 0986477227 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 254 mm inner brake drum diameter, 303 mm outer brake drum diameter, and 5 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 254

Outer brake drum diameter [mm] : 303

Inner brake drum height [mm] : 56

Total brake drum height [mm] : 75.5

Bolt Hole Circle Ø [mm] : 114.3

Number of Holes : 5

Centering Diameter [mm] : 66.1
