BOSCH

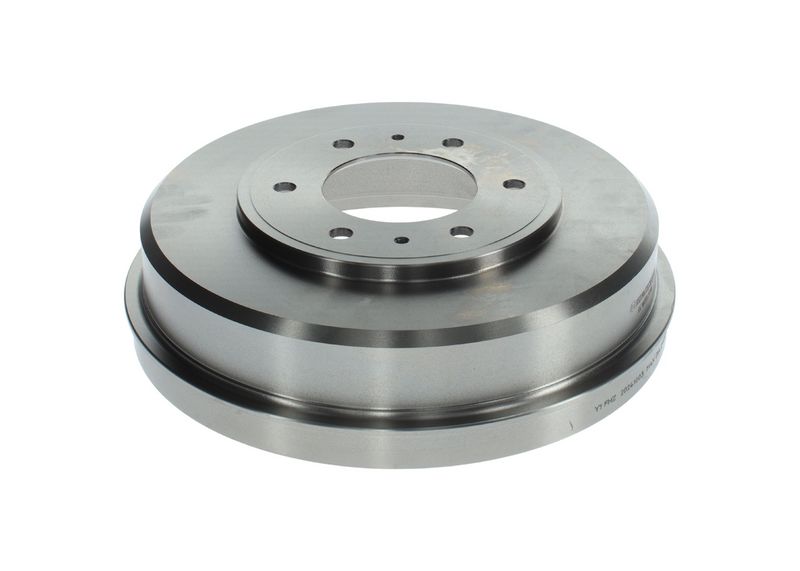

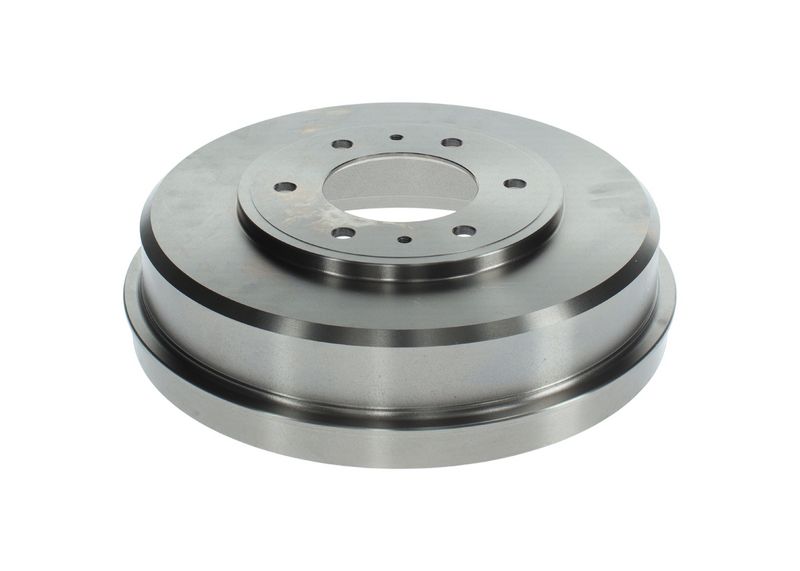

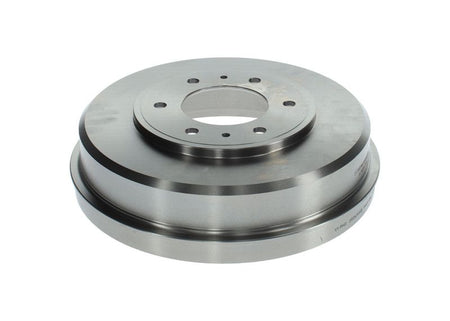

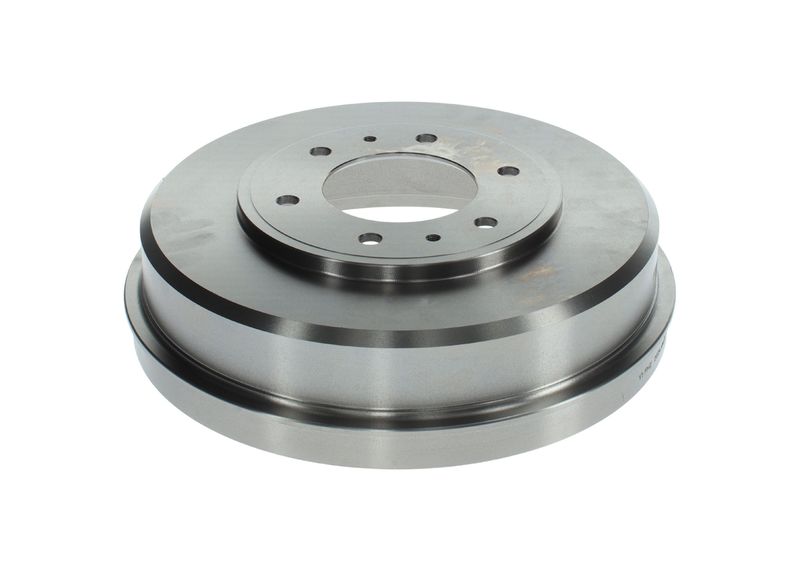

Bosch 0986477232 Brake Drum

SKU: 0986477232

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£67.95 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI

L200 / TRITON (KA_T, KB_T)

Description	Cylinder Capacity	Horse Power	Year
2.5 DI-D (KA4T)	2477 CCM	167 HP	08/2007 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	136 HP	11/2005 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	167 HP	10/2007 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	178 HP	04/2010 - 12/2015
2.5 DI-D 16V 4WD	2477 CCM	133 HP	04/2007 - 12/2015

L200 / TRITON Platform/Chassis (KA_T, KB_T)

Description	Cylinder Capacity	Horse Power	Year
2.5 DI-D (KA4T)	2477 CCM	128 HP	08/2007 - 12/2015

PAJERO SPORT II (KH_, KG_)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D 4WD	3200 CCM	165 HP	From 07/2008

The Bosch 0986477232 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 295 mm inner brake drum diameter, 342.5 mm outer brake drum diameter, and 6 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

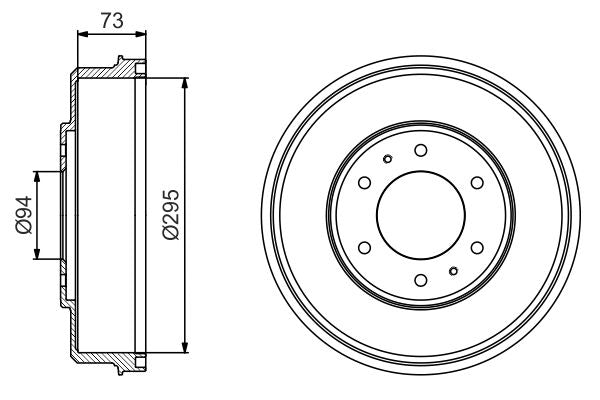

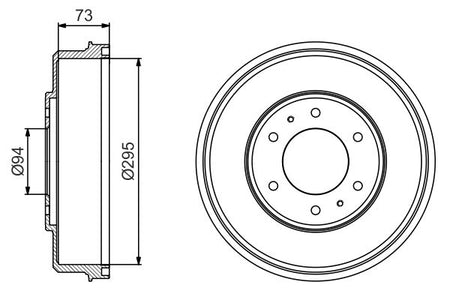

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 295

Outer brake drum diameter [mm] : 342.5

Inner brake drum height [mm] : 73

Total brake drum height [mm] : 91.5

Bolt Hole Circle Ø [mm] : 139.7

Number of Holes : 6

Centering Diameter [mm] : 94

Bosch 0986477232 Brake Drum
