BOSCH

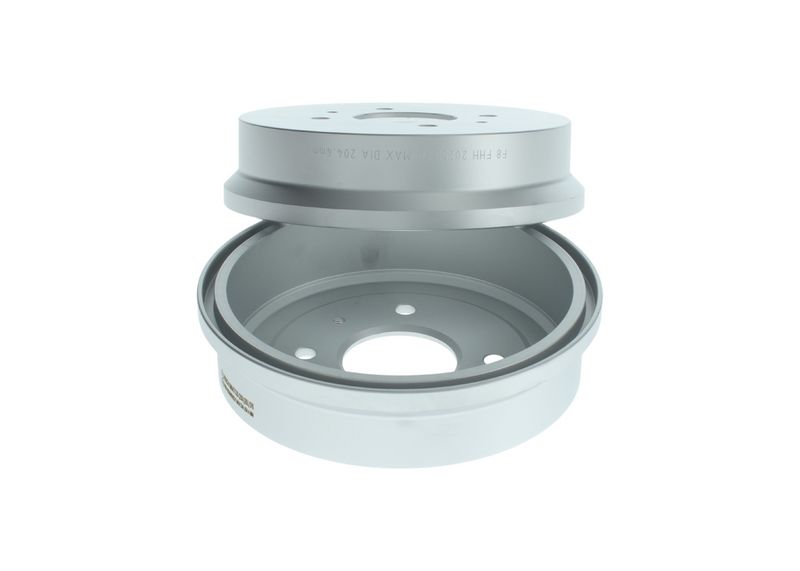

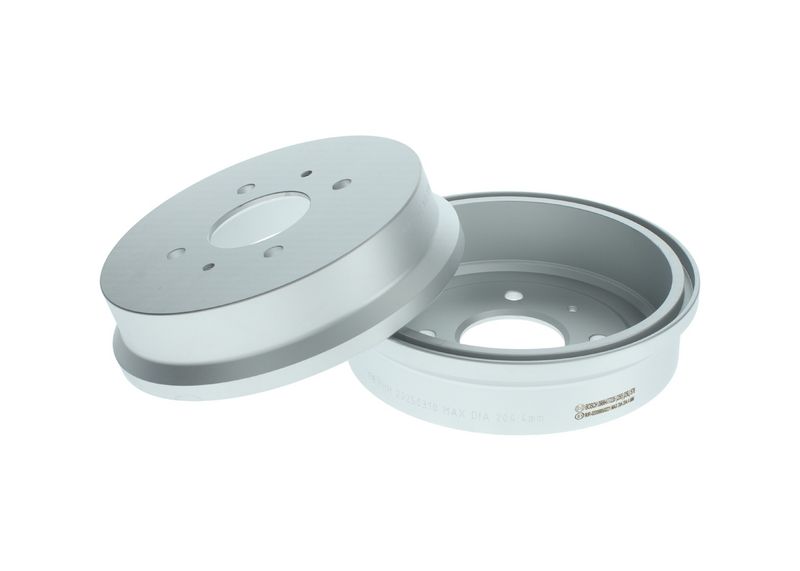

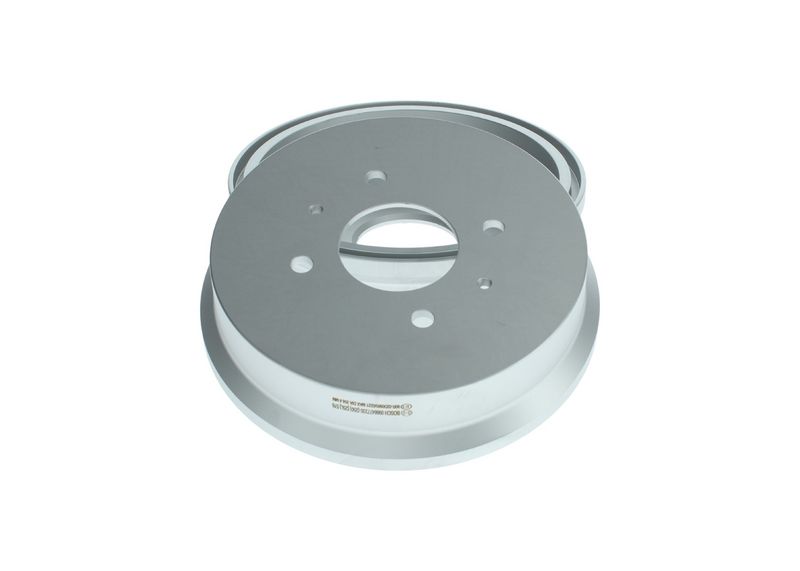

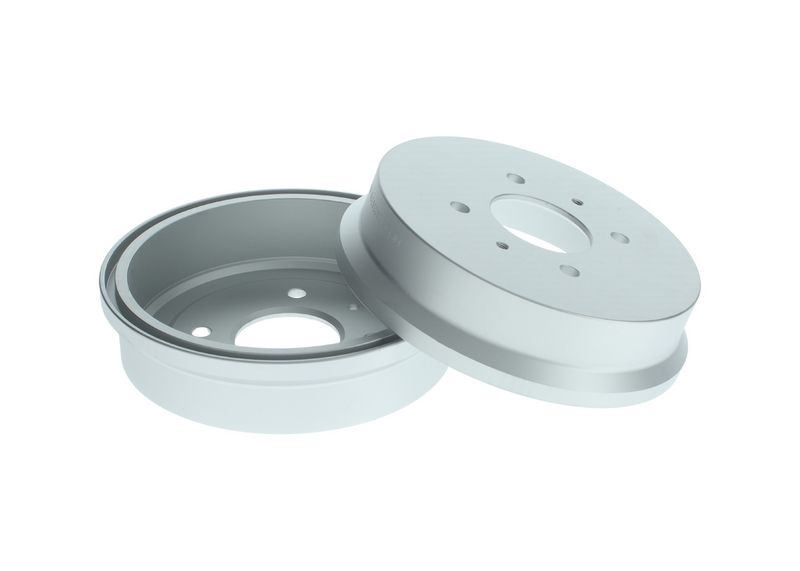

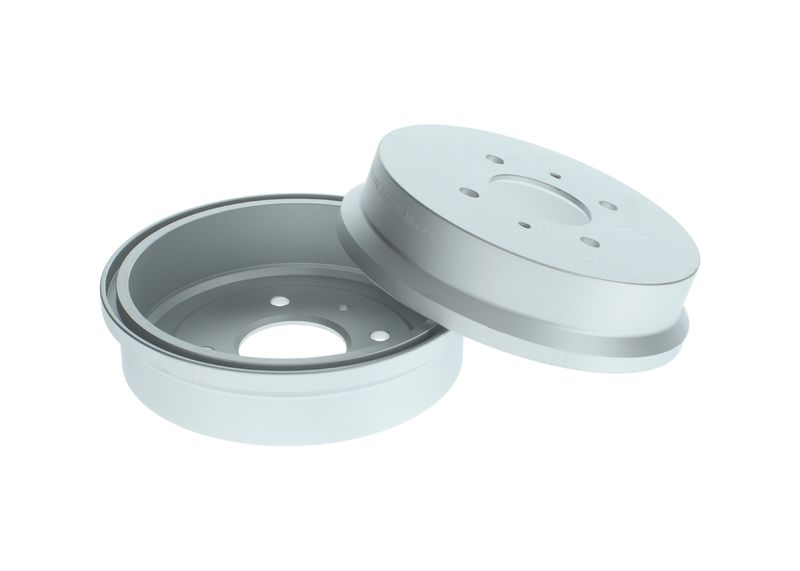

Bosch 0986477235 Brake Drum

SKU: 0986477235

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£98.37 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI

COLT VI (Z3_A, Z2_A)

Description	Cylinder Capacity	Horse Power	Year
1.3 (Z21A)	1332 CCM	95 HP	06/2004 - 06/2012
1.1 (Z31A, Z32A)	1124 CCM	75 HP	10/2004 - 06/2012
1.5 DI-D (Z38A)	1493 CCM	68 HP	08/2004 - 06/2012
1.5 DI-D (Z39A)	1493 CCM	95 HP	08/2004 - 06/2012
1.3 LPG (Z33A)	1332 CCM	95 HP	06/2004 - 06/2012
1.3 Flexfuel (Z35A)	1332 CCM	95 HP	10/2008 - 06/2012

SMART

FORFOUR (454)

Description	Cylinder Capacity	Horse Power	Year
1.1 (454.030)	1124 CCM	75 HP	01/2004 - 06/2006
1.3 (454.031)	1332 CCM	95 HP	01/2004 - 06/2006
1.5 CDI (454.000)	1493 CCM	68 HP	09/2004 - 06/2006
1.1 (454.033)	1124 CCM	64 HP	02/2005 - 06/2006

The Bosch 0986477235 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 203 mm inner brake drum diameter, 239 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

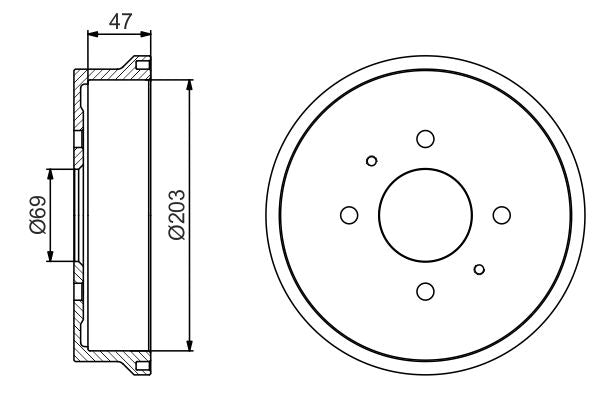

Inner brake drum diameter [mm] : 203

Outer brake drum diameter [mm] : 239

Inner brake drum height [mm] : 47

Total brake drum height [mm] : 57.5

Bolt Hole Circle Ø [mm] : 114.3

Number of Holes : 4

Centering Diameter [mm] : 69

Bosch 0986477235 Brake Drum
