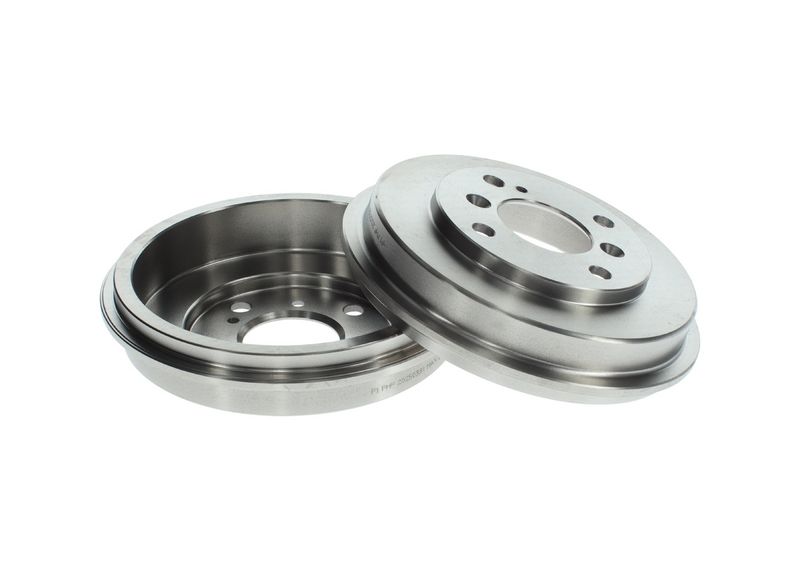

Bosch 0986477240 Brake Drum - 1

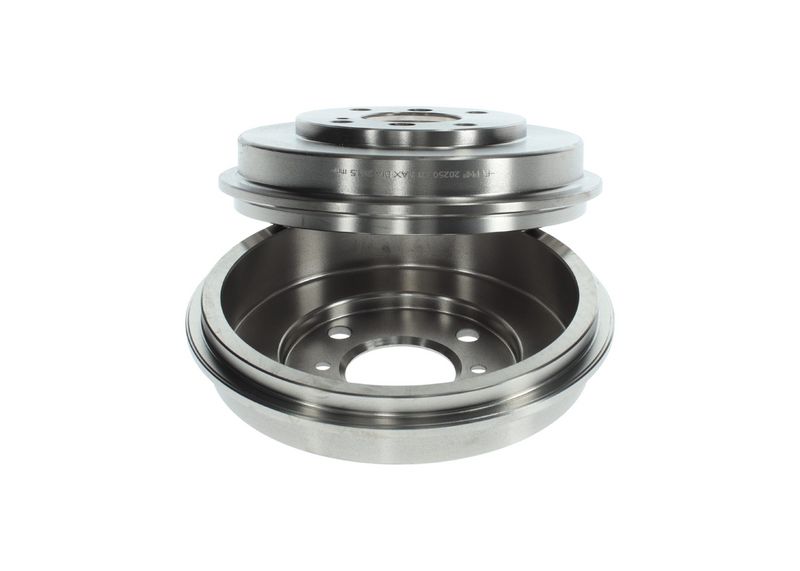

Bosch 0986477240 Brake Drum - 2

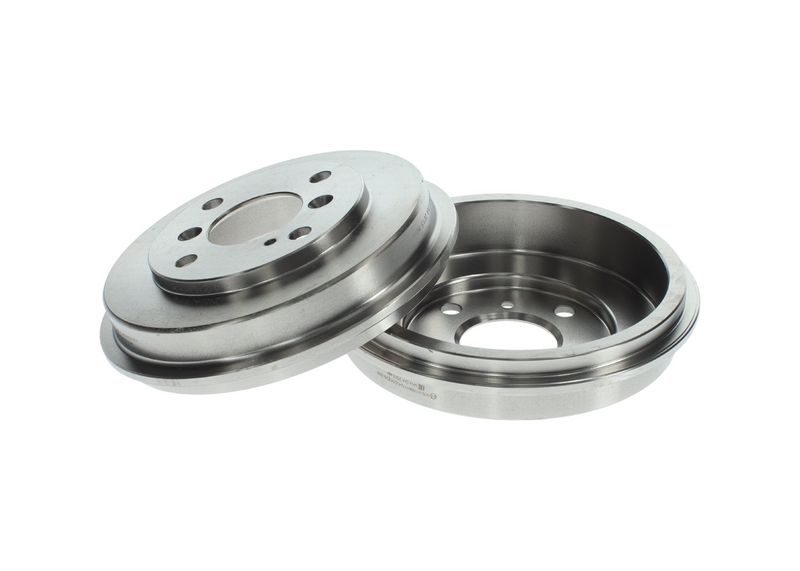

Bosch 0986477240 Brake Drum - 3

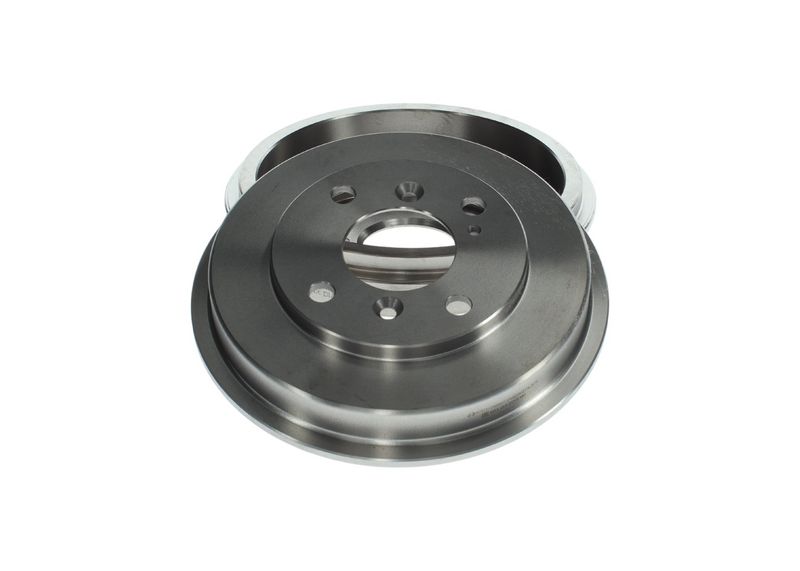

Bosch 0986477240 Brake Drum - 4

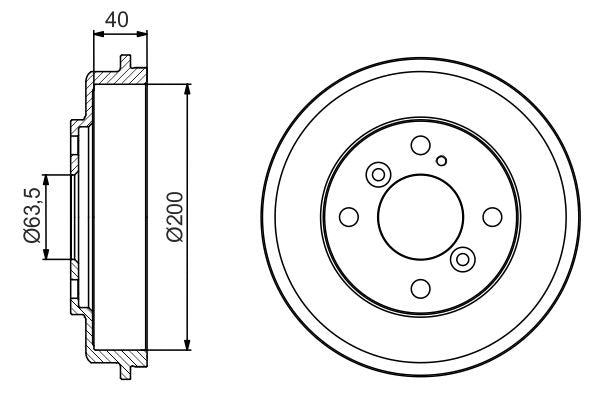

Bosch 0986477240 Brake Drum - 5

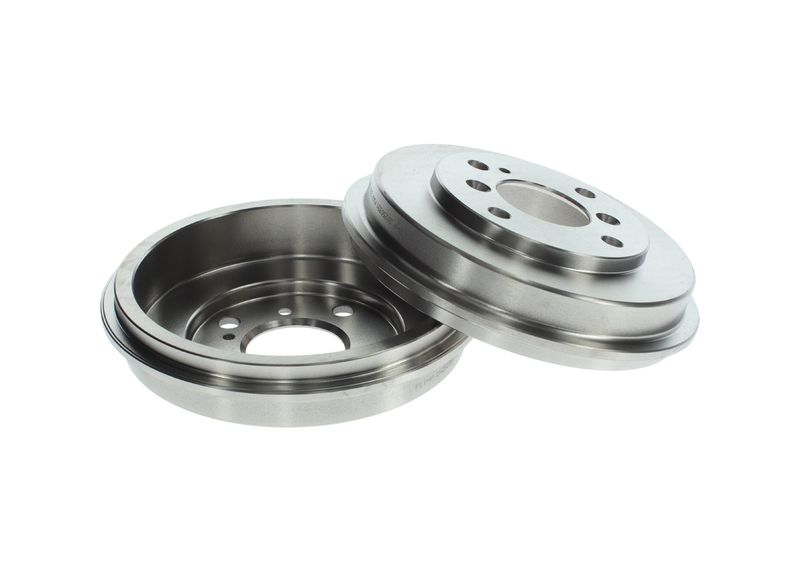

Bosch 0986477240 Brake Drum - 6
Bosch 0986477240 Brake Drum - 1
Bosch 0986477240 Brake Drum - 2
Bosch 0986477240 Brake Drum - 3
Bosch 0986477240 Brake Drum - 4
Bosch 0986477240 Brake Drum - 5
Bosch 0986477240 Brake Drum - 6
BOSCH

Bosch 0986477240 Brake Drum

SKU: 0986477240
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£65.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
FIESTA VI (CB1, CCN)
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 134 HP 12/2010 - 04/2017
1.4 TDCi 1399 CCM 70 HP 07/2010 - 09/2012
1.25 1242 CCM 60 HP 06/2008 - 04/2017
1.25 1242 CCM 82 HP 06/2008 - 04/2017
1.6 TDCi 1560 CCM 90 HP 06/2008 - 12/2012
1.4 1388 CCM 97 HP 10/2008 - 12/2017
1.6 Ti 1596 CCM 120 HP 06/2008 - 09/2012
1.4 TDCi 1399 CCM 68 HP 08/2008 - 09/2012
1.6 TDCi 1560 CCM 75 HP 06/2008 - 12/2012
1.4 LPG 1388 CCM 97 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 12/2015
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 12/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 12/2017
1.6 Ti 1596 CCM 105 HP 09/2012 - 04/2017
FIESTA VI Van
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 70 HP 07/2010 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 05/2015
1.25 1242 CCM 82 HP 01/2009 - 04/2017
1.4 TDCi 1399 CCM 68 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 90 HP 01/2009 - 04/2017
1.5 TDCi 1499 CCM 75 HP 10/2012 - 04/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 04/2017
1.0 EcoBoost 998 CCM 140 HP 05/2014 - 04/2017
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 04/2017
1.5 TDCi 1499 CCM 95 HP 05/2015 - 04/2017
1.0 998 CCM 80 HP 10/2012 - 04/2017
1.6 Ti-VCT 1596 CCM 120 HP 10/2008 - 12/2012
1.4 1388 CCM 97 HP 10/2008 - 12/2012
FIESTA Saloon
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 120 HP 04/2010 - 04/2017
1.6 Ti 1596 CCM 105 HP 03/2015 - 04/2017
1.6 1596 CCM 85 HP 03/2015 - 04/2017
KA+ III (UK, FK)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 70 HP From 06/2016
1.2 Ti-VCT 1196 CCM 85 HP From 06/2016

The Bosch 0986477240 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 200 mm inner brake drum diameter, 244 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Fitting Position : Rear Axle
Inner brake drum diameter [mm] : 200
Outer brake drum diameter [mm] : 244
Inner brake drum height [mm] : 40
Total brake drum height [mm] : 57.5
Bolt Hole Circle Ø [mm] : 108
Number of Holes : 4
Centering Diameter [mm] : 63.5
  • Vendor BOSCH
  • SKU 0986477240
  • Barcode 4047025226011
  • FORD : 1523797 1535923 2017683 5214583 8V511113AA 8V511113AB
  • BLUE PRINT : ADBP470045
  • BLUE PRINT : ADM54707
  • BORG & BECK : BBR7263
  • BREMBO : 14.F041.10
  • BREMBO : 14.F041.20
  • DELPHI : BF525
  • DELPHI : BF591
  • FEBI BILSTEIN : 194818
  • FTE : 9190031
  • HELLA : 8DT 355 302-631
  • MINTEX : MBD372
  • National : NDR350
  • TEXTAR : 94031900
  • TRW : DB4553
  • BOSCH : DB311
