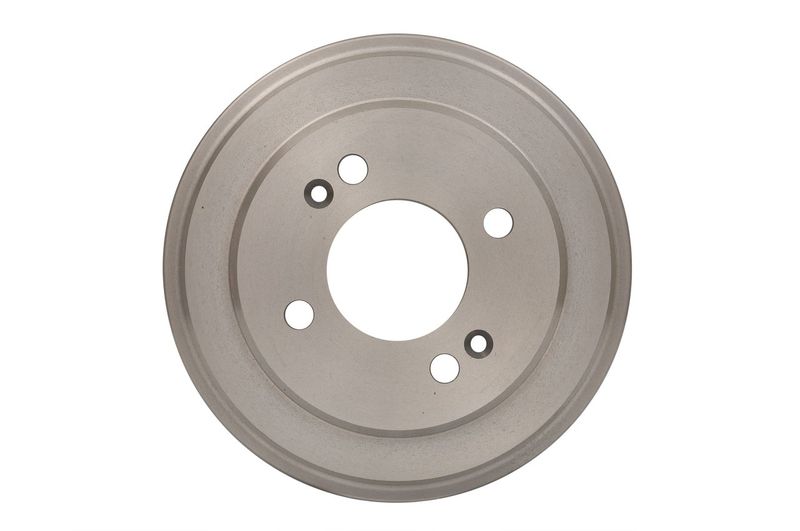

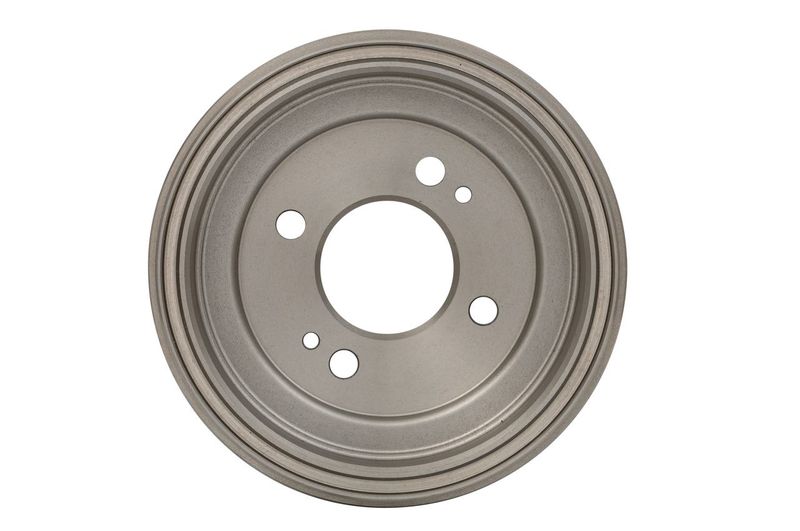

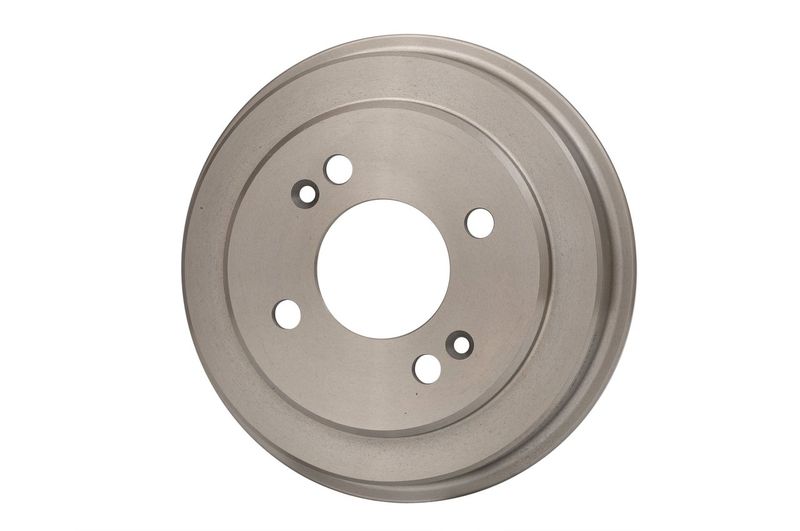

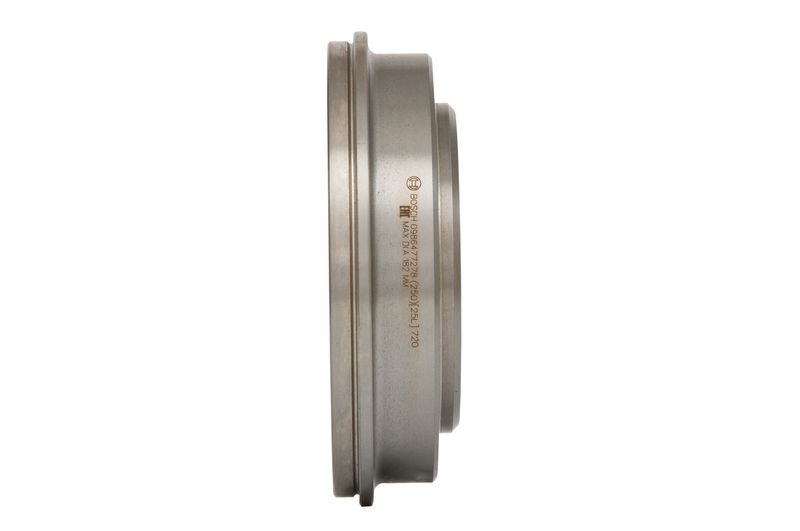

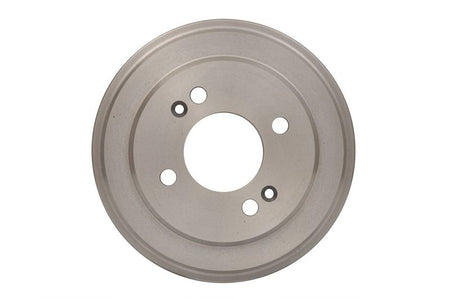

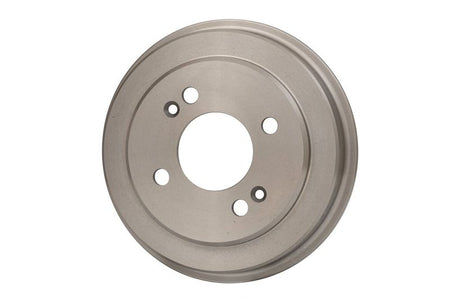

Bosch 0986477278 Brake Drum

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986477278

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£61.82 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

KIA

PICANTO I (SA)

Description	Cylinder Capacity	Horse Power	Year
1.1	1086 CCM	65 HP	04/2004 - 09/2011
1.0	999 CCM	61 HP	04/2004 - 04/2011
1.1 CRDi	1120 CCM	75 HP	10/2005 - 04/2011
1.0	999 CCM	63 HP	09/2007 - 04/2011

The Bosch 0986477278 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 180 mm inner brake drum diameter, 219.5 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

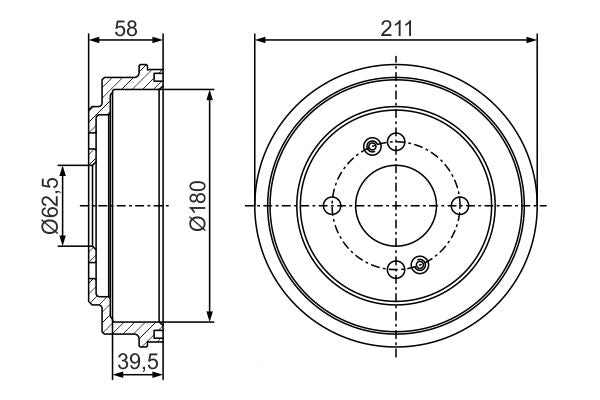

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 180

Outer brake drum diameter [mm] : 219.5

Inner brake drum height [mm] : 39

Total brake drum height [mm] : 58

Bolt Hole Circle Ø [mm] : 100

Number of Holes : 4

Centering Diameter [mm] : 62.5
