BOSCH

Bosch 0986477297 Brake Drum

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986477297

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£133.23 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA

HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)

Description	Cylinder Capacity	Horse Power	Year
2.5 D-4D (KUN15, KUN35)	2494 CCM	144 HP	01/2010 - 05/2015
2.5 D 4WD (KUN25)	2494 CCM	102 HP	03/2005 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	171 HP	08/2005 - 09/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	163 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25)	2494 CCM	144 HP	12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_)	2494 CCM	128 HP	11/2004 - 12/2005
3.0 D-4D 4WD (KUN26)	2982 CCM	169 HP	08/2005 - 05/2015

HILUX VII Platform/Chassis (_N1_, _N2_)

Description	Cylinder Capacity	Horse Power	Year
3.0 D 4WD (KUN26)	2982 CCM	171 HP	From 02/2005

HILUX VIII Platform/Chassis (_N1_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D 4WD (GUN125_, GUN125R)	2393 CCM	150 HP	From 07/2015

HILUX VIII Pickup (_N1_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,...	2393 CCM	150 HP	From 05/2015
2.4 D 4WD (GUN125_, GUN125R)	2393 CCM	150 HP	From 05/2015
2.8 D-4D (GUN123_, GUN136_, GUN136)	2755 CCM	177 HP	From 05/2015

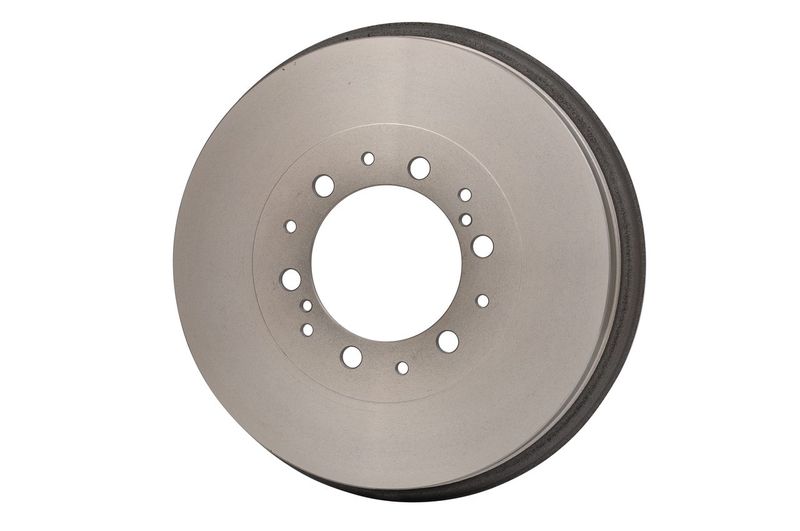

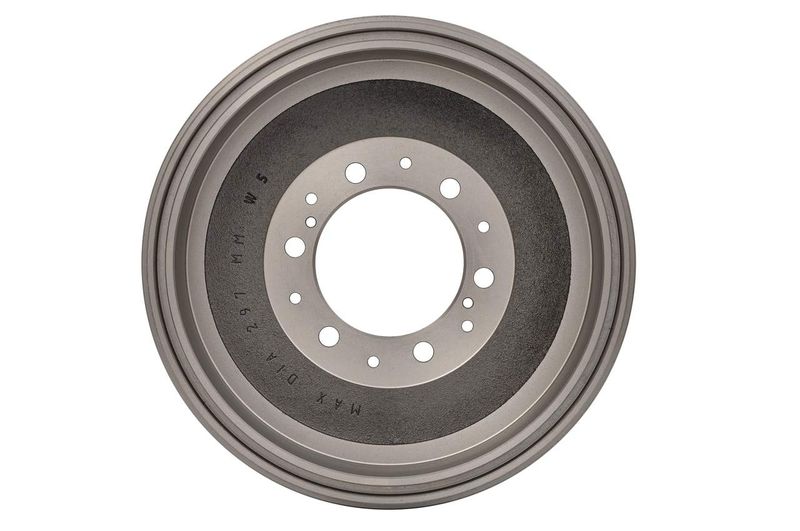

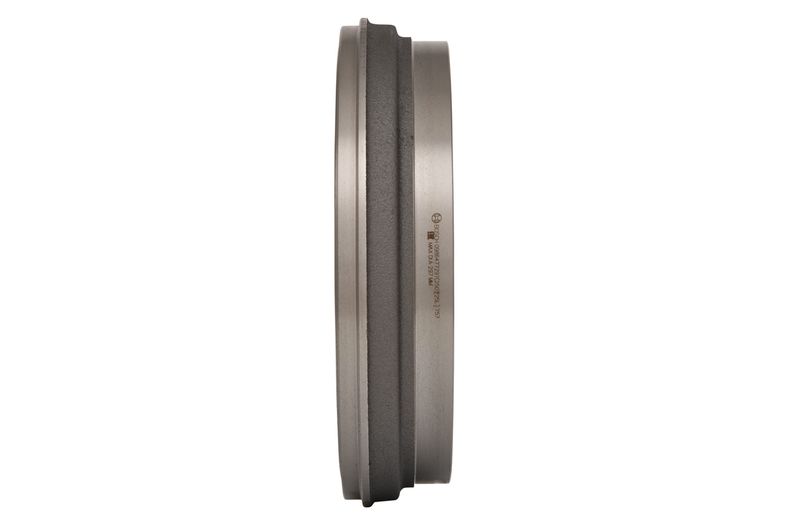

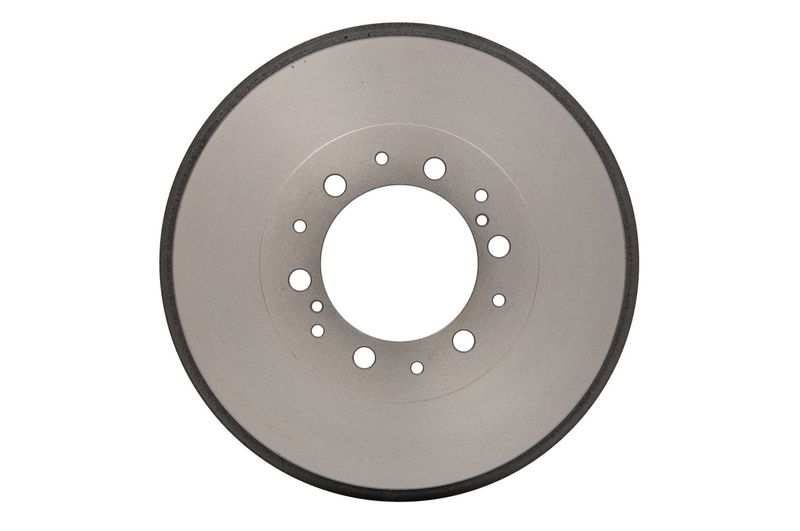

The Bosch 0986477297 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 295 mm inner brake drum diameter, 344.5 mm outer brake drum diameter, and 6 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

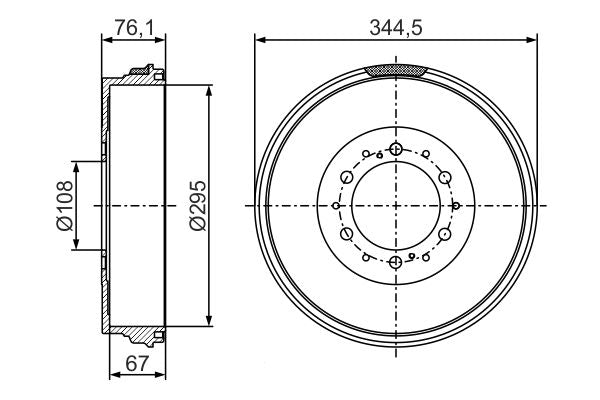

Inner brake drum diameter [mm] : 295

Outer brake drum diameter [mm] : 344.5

Inner brake drum height [mm] : 67

Total brake drum height [mm] : 76.1

Bolt Hole Circle Ø [mm] : 139.7

Number of Holes : 6

Centering Diameter [mm] : 108
