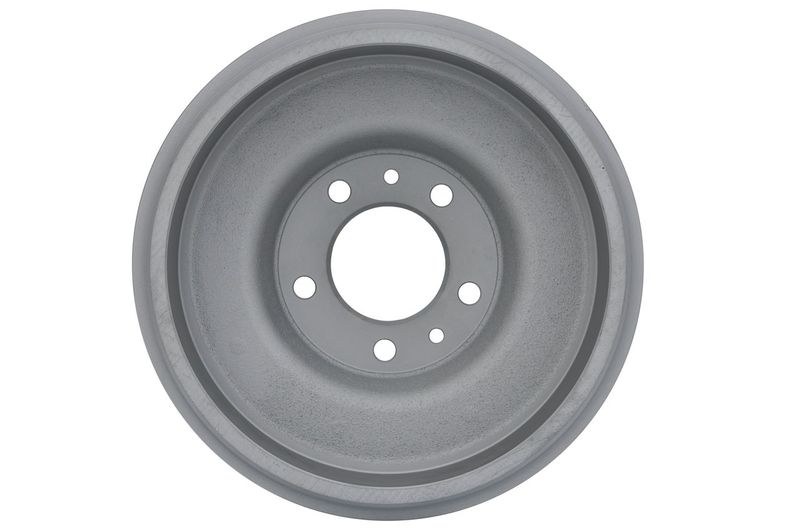

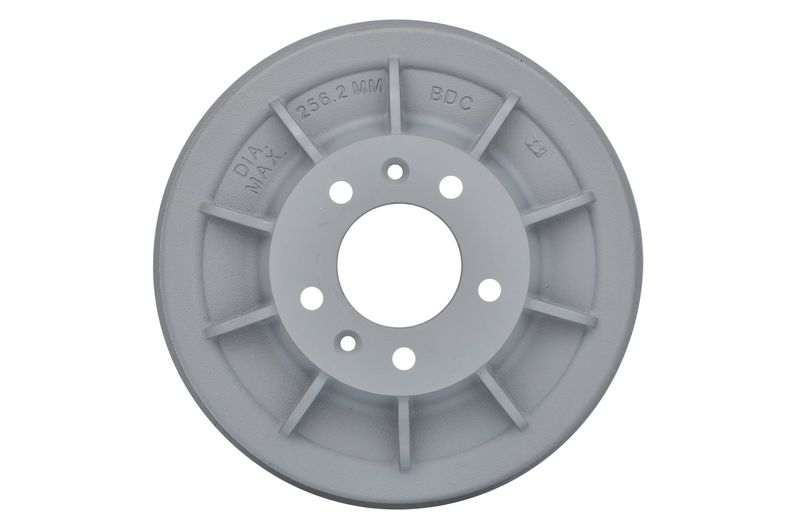

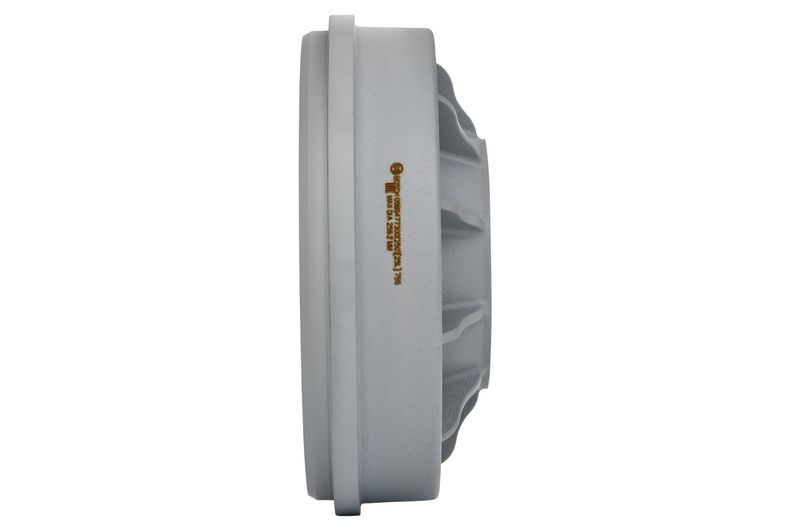

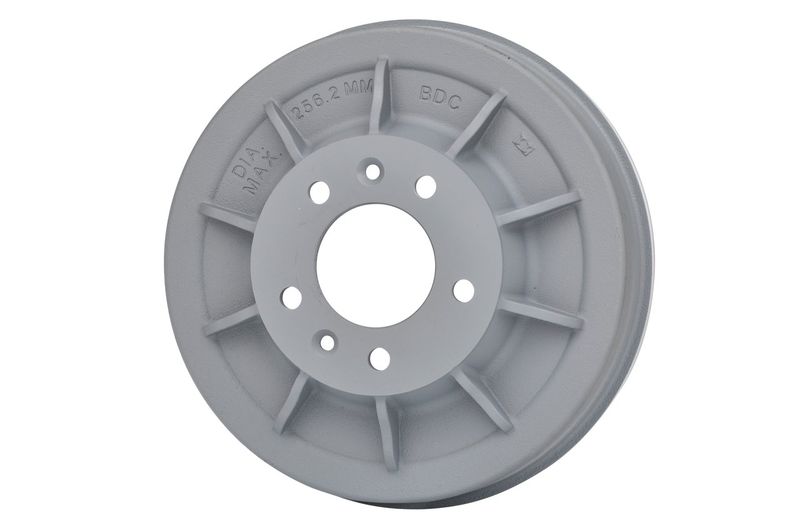

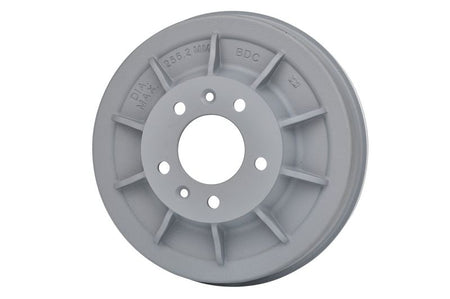

Bosch 0986477300 Brake Drum
Your selected vehicle
Regular price
£65.02
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986477300 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 254 mm inner brake drum diameter, 298 mm outer brake drum diameter, and 5 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Drum
Fitting Position :
Rear Axle

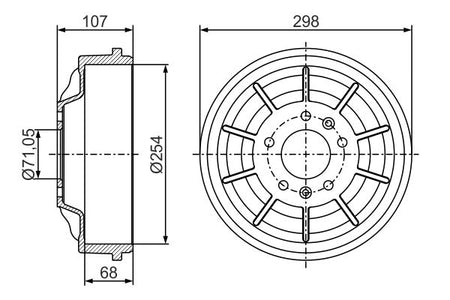

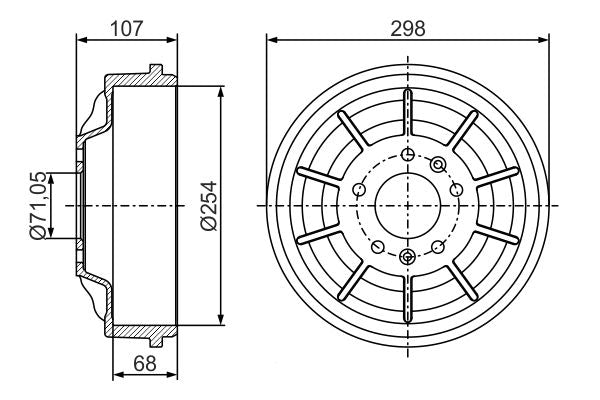

Inner brake drum diameter [mm] :
254
Outer brake drum diameter [mm] :
298
Inner brake drum height [mm] :
68
Total brake drum height [mm] :
107
Bolt Hole Circle Ø [mm] :
108
Number of Holes :
5
Centering Diameter [mm] :
71.05
- Vendor BOSCH
- SKU 0986477300
- CITROËN : 14 001 789 80 14 014 171 80 4247 51 4247 56
- FIAT : K1400178980 K1401417180 1400178980 1401417180 424751 424756
- PEUGEOT : 14 001 789 80 14 014 171 80 4247 51 4247 56
- BLUE PRINT : ADBP470008
- BORG & BECK : BBR7203
- DELPHI : BF562
- FEBI BILSTEIN : 171086
- MINTEX : MBD310
- National : NDR362
- TEXTAR : 94032900
- TRW : DB4405
- BOSCH : DB370
