BOSCH

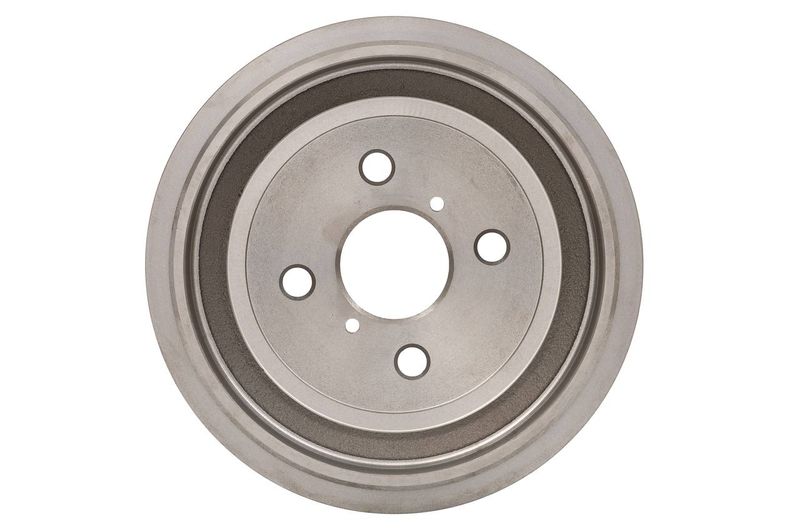

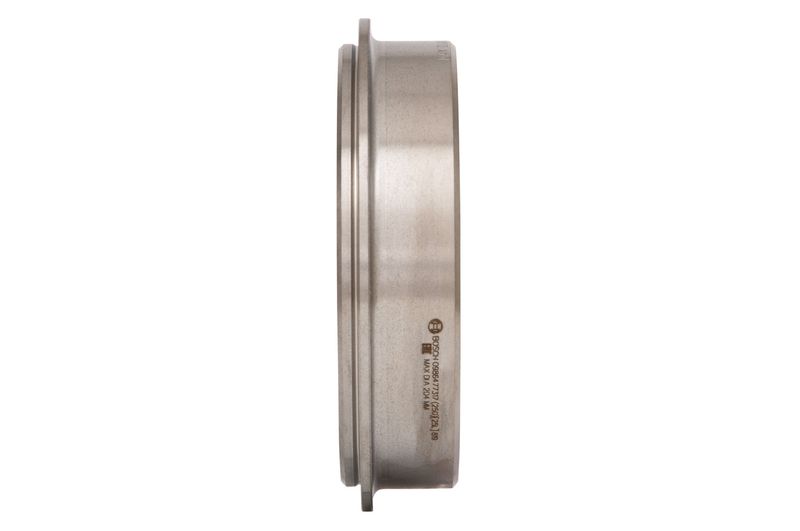

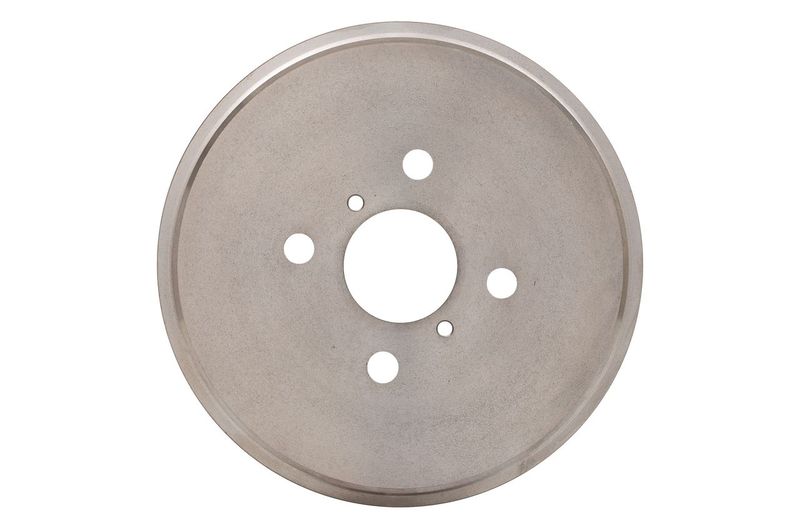

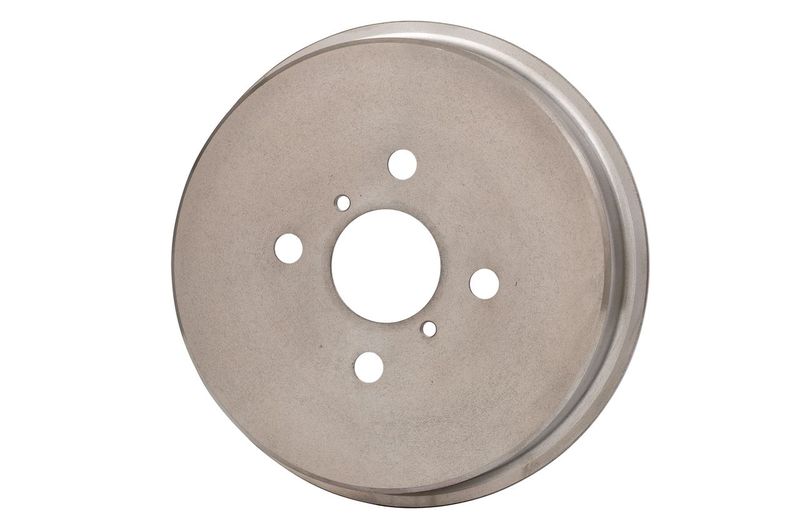

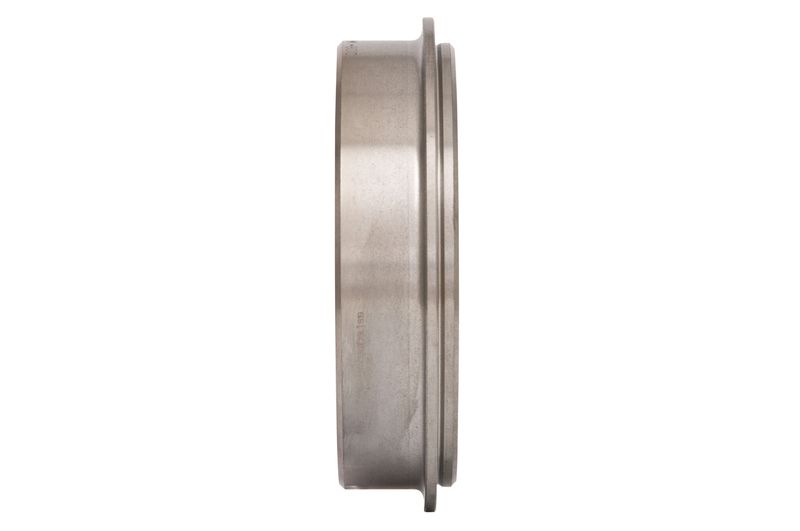

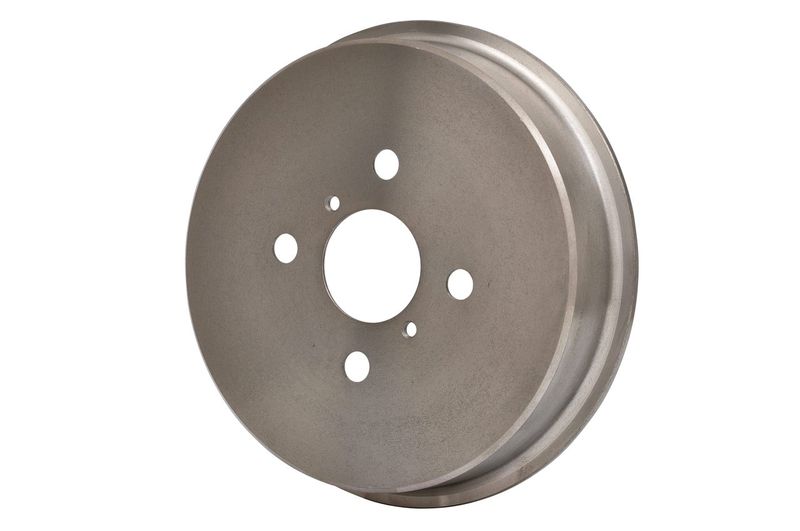

Bosch 0986477317 Brake Drum

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986477317

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£80.34 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

DAIHATSU

CHARADE VIII

Description	Cylinder Capacity	Horse Power	Year
1.33 16V	1329 CCM	99 HP	From 05/2011

TOYOTA

YARIS Hatchback Van (_P13_)

Description	Cylinder Capacity	Horse Power	Year
1.0 VVTi (KSP130)	998 CCM	69 HP	07/2014 - 06/2020
1.4 D4d (NLP130)	1364 CCM	90 HP	07/2014 - 05/2018

YARIS/VITZ (_P9_)

Description	Cylinder Capacity	Horse Power	Year
1.33 VVT-i (NSP90_, NSP90R)	1329 CCM	99 HP	07/2010 - 05/2011
1.0 VVT-i (KSP90_, KSP90R)	998 CCM	69 HP	08/2005 - 12/2011
1.4 D-4D (NLP90_, NLP90R)	1364 CCM	90 HP	08/2005 - 12/2012
1.3 VVT-i (SCP90_, SCP90R)	1298 CCM	87 HP	08/2005 - 11/2010
1.33 VVT-i (NSP90_, NSP90R)	1329 CCM	100 HP	11/2008 - 12/2011
1.0 VVT-i (KSP90)	998 CCM	71 HP	11/2005 - 11/2010

YARIS/VITZ (_P13_)

Description	Cylinder Capacity	Horse Power	Year
1.3 (NSP130_, NSP130)	1329 CCM	95 HP	12/2010 - 07/2014
1.0 (KSP130_, KSP130)	998 CCM	69 HP	12/2010 - 06/2020
1.4 D (NLP130_, NLP130)	1364 CCM	90 HP	09/2011 - 05/2018
1.3 (NSP130_, NSP130)	1329 CCM	99 HP	09/2011 - 03/2017

The Bosch 0986477317 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 202.5 mm inner brake drum diameter, 243 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 202.5

Outer brake drum diameter [mm] : 243

Inner brake drum height [mm] : 45

Total brake drum height [mm] : 57

Bolt Hole Circle Ø [mm] : 100

Number of Holes : 4

Centering Diameter [mm] : 55
