BOSCH

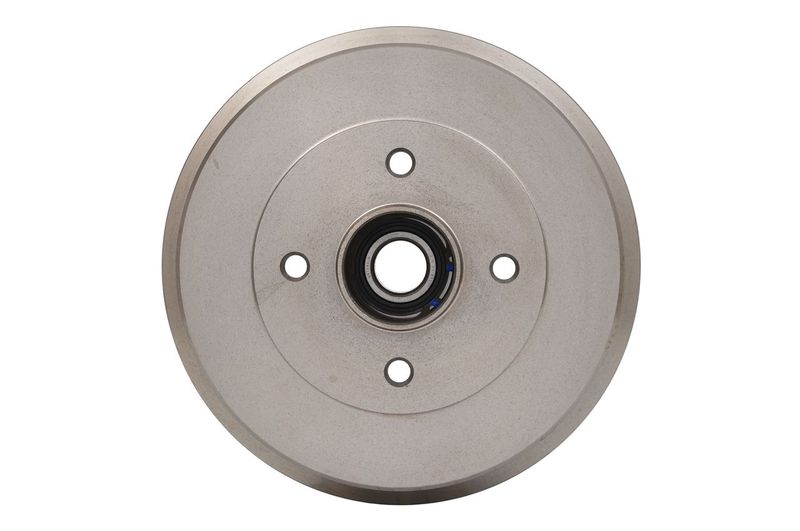

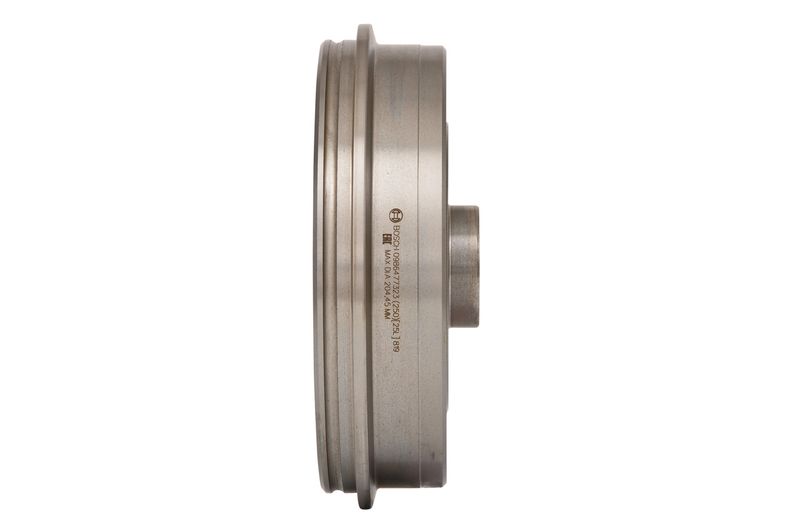

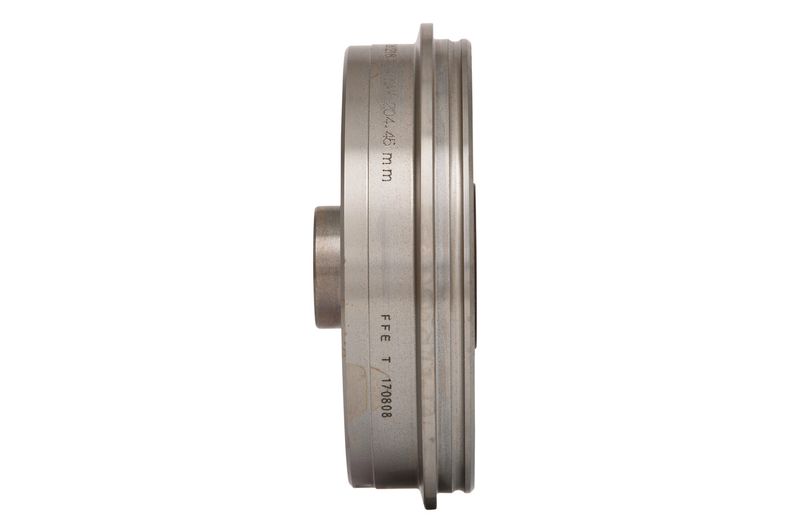

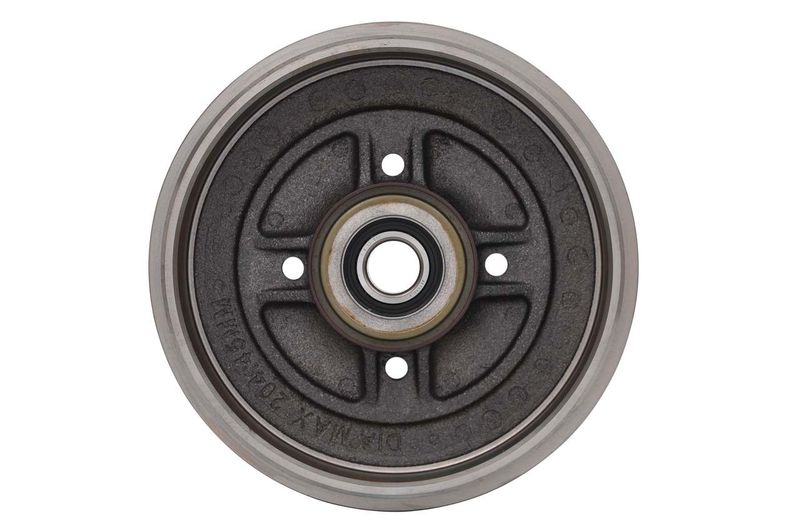

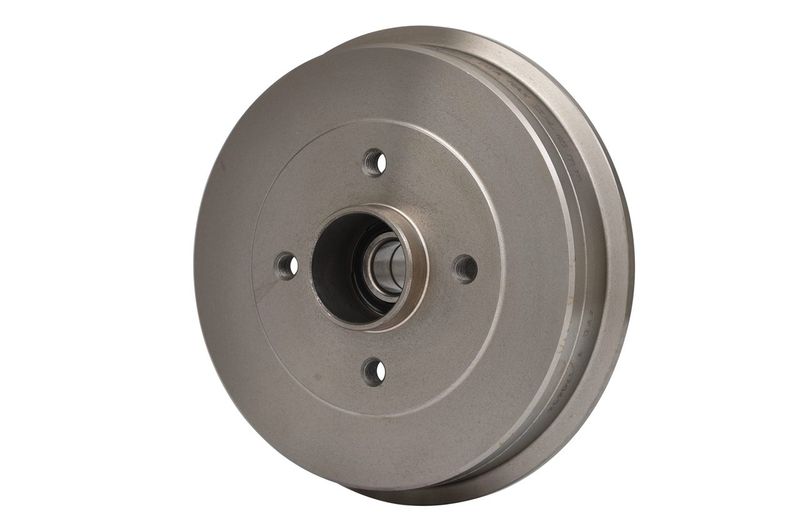

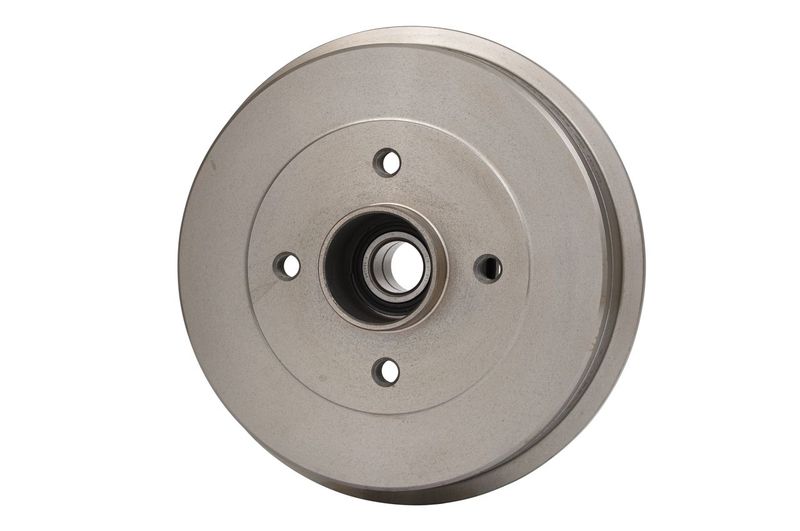

Bosch 0986477323 Brake Drum

SKU: 0986477323

Your selected vehicle

Out of stock

Out of Stock

£136.46 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

CLIO Mk II (BB_, CB_)

Description	Cylinder Capacity	Horse Power	Year
1.2 (BB0A, BB0F, BB10, BB1K, BB28, BB2D, BB2H, CB0A,...	1149 CCM	58 HP	09/1998 - 02/2010
1.4 (B/CB0C, B/CB0S)	1390 CCM	75 HP	09/1998 - 05/2005
1.6 (B/CB0D, BB00)	1598 CCM	90 HP	09/1998 - 05/2005
1.6 16V (BB01, BB0H, BB0T, BB14, BB1D, BB1R, BB2KL, BB3G...	1598 CCM	107 HP	09/1998 - 04/2005
1.9 D (B/CB0E, BB0J)	1870 CCM	64 HP	09/1998 - 05/2005
1.6 (BB01, BB1J)	1598 CCM	110 HP	06/1999 - 02/2009
1.6 16V	1598 CCM	112 HP	03/1999 - 12/2008
1.4 16V (B/CB0L)	1390 CCM	95 HP	10/1999 - 09/2004
1.9 dTi (B/CB0U)	1870 CCM	80 HP	12/1999 - 05/2005
1.4 16V (B/CB0P, BB13)	1390 CCM	98 HP	02/2000 - 07/2008
1.2 16V (BB05, BB0W, BB11, BB27, BB2T, BB2U, BB2V, CB05,...	1149 CCM	75 HP	06/2001 - 08/2016
1.5 dCi (B/CB07)	1461 CCM	65 HP	06/2001 - 07/2009
1.5 dCi (B/CB08)	1461 CCM	82 HP	06/2001 - 04/2005

CLIO II Hatchback Van (SB0/1/2_)

Description	Cylinder Capacity	Horse Power	Year
1.9 D (SB0E)	1870 CCM	64 HP	From 09/1998
1.2 (SB0A, SB0F, SB1K, SB2D)	1149 CCM	58 HP	From 09/1998
1.5 dCi (SB07)	1461 CCM	65 HP	From 06/2001
1.5 dCi	1461 CCM	82 HP	From 11/2003
1.5 dCi	1461 CCM	80 HP	06/2001 - 10/2004

LOGAN I (LS_)

Description	Cylinder Capacity	Horse Power	Year
1.4	1390 CCM	75 HP	From 09/2004
1.6	1598 CCM	87 HP	From 09/2004
1.5 dCi	1461 CCM	65 HP	04/2006 - 10/2013

THALIA I (LB_)

Description	Cylinder Capacity	Horse Power	Year
1.4	1390 CCM	75 HP	08/2000 - 10/2005
1.4 16V	1390 CCM	98 HP	08/2000 - 02/2009
1.5 dCi	1461 CCM	65 HP	04/2002 - 02/2009
1.6 16V	1598 CCM	107 HP	07/2000 - 02/2009
1.5 dCi	1461 CCM	82 HP	06/2001 - 02/2009
1.2 16V	1149 CCM	75 HP	04/2002 - 02/2009
1.5 dCi	1461 CCM	68 HP	02/2003 - 02/2009
1.5 dCi	1461 CCM	79 HP	04/2004 - 02/2009
1.5 dCi	1461 CCM	84 HP	06/2001 - 02/2009

TWINGO I (C06_)

Description	Cylinder Capacity	Horse Power	Year
1.2 (C067)	1149 CCM	54 HP	05/1996 - 03/2007
1.2 (C066, C068)	1149 CCM	58 HP	05/1996 - 06/2007
1.2 16V (C06C, C06D, C06K)	1149 CCM	75 HP	01/2001 - 06/2007
1.2 16V (C060)	1149 CCM	60 HP	08/2004 - 06/2007
1.2 LPG	1149 CCM	60 HP	10/2003 - 06/2007

The Bosch 0986477323 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 203.3 mm inner brake drum diameter, 234 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Fitting Position : Rear Axle

Inner brake drum diameter [mm] : 203.3

Outer brake drum diameter [mm] : 234

Inner brake drum height [mm] : 50

Total brake drum height [mm] : 76

Bolt Hole Circle Ø [mm] : 100

Number of Holes : 4

Centering Diameter [mm] : 52

Supplementary Article/Supplementary Info 2 : without wheel bearing
