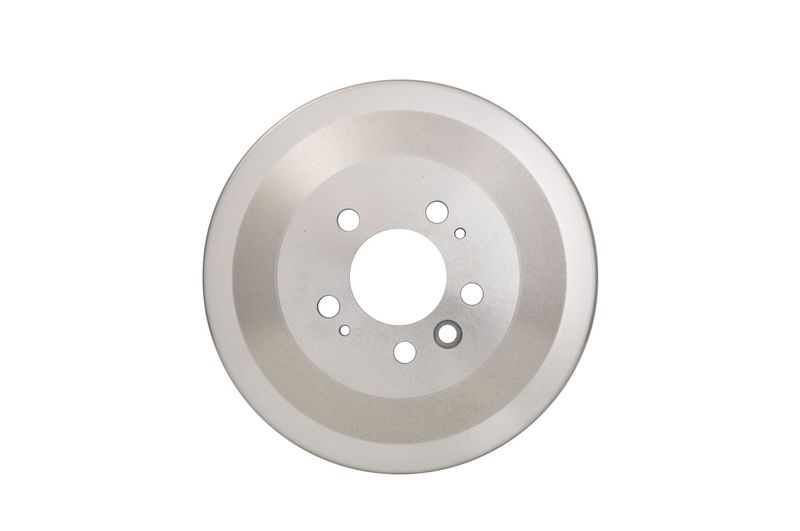

Bosch 0986477324 Brake Drum - 1
Bosch 0986477324 Brake Drum - 2

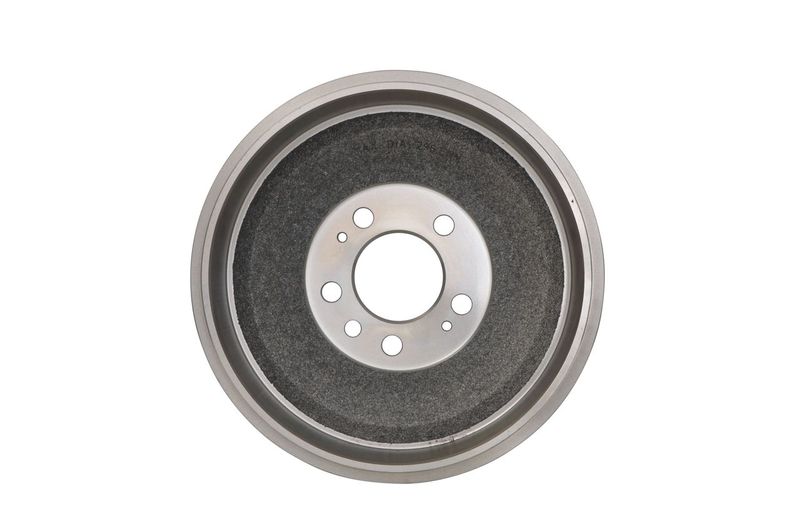

Bosch 0986477324 Brake Drum - 3
Bosch 0986477324 Brake Drum - 4

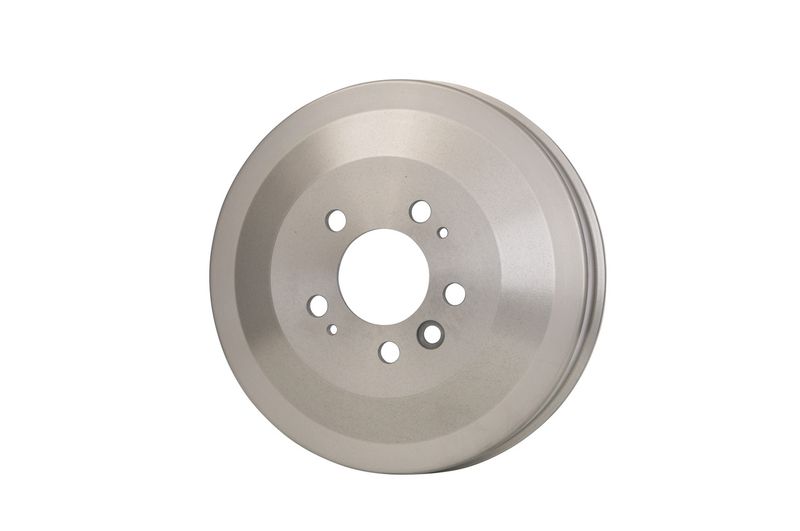

Bosch 0986477324 Brake Drum - 5

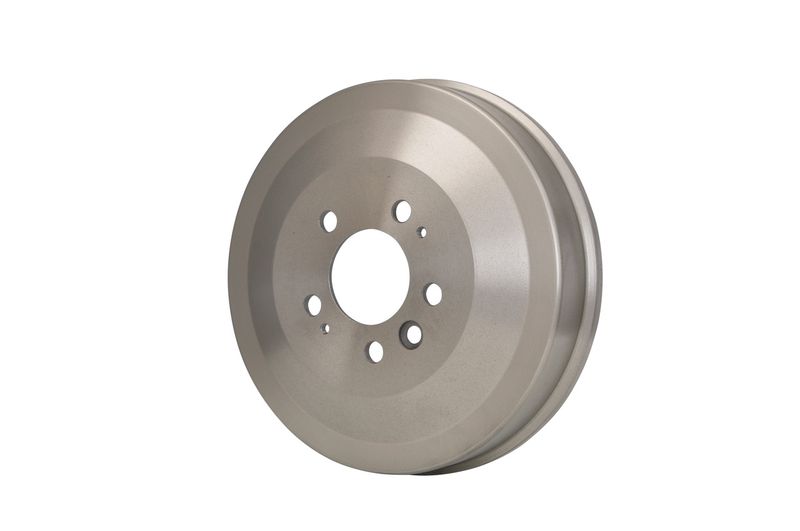

Bosch 0986477324 Brake Drum - 6
Bosch 0986477324 Brake Drum - 1
Bosch 0986477324 Brake Drum - 2
Bosch 0986477324 Brake Drum - 3
Bosch 0986477324 Brake Drum - 4
Bosch 0986477324 Brake Drum - 5
Bosch 0986477324 Brake Drum - 6
BOSCH

Bosch 0986477324 Brake Drum

SKU: 0986477324
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£75.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD)
Description Cylinder Capacity Horse Power Year
2.0 TSI 1984 CCM 160 HP 12/2010 - 10/2016
2.0 BiTDI 4motion 1968 CCM 180 HP 11/2011 - 05/2022
2.0 BiTDI 1968 CCM 163 HP 09/2010 - 08/2012
2.0 BiTDI 4motion 1968 CCM 163 HP 09/2010 - 08/2012
2.0 TDI 4motion 1968 CCM 122 HP 09/2010 - 10/2013
2.0 TDI 1968 CCM 122 HP 09/2010 - 10/2013
2.0 BiTDI 1968 CCM 180 HP 11/2011 - 05/2022
2.0 TDI 1968 CCM 140 HP From 07/2012
2.0 TDI 4motion 1968 CCM 140 HP 06/2012 - 05/2022
3.0 TDI 4motion 2967 CCM 224 HP 06/2016 - 05/2022
3.0 TDI 4motion 2967 CCM 204 HP 06/2016 - 08/2020
3.0 TDI 4motion 2967 CCM 163 HP 06/2016 - 06/2020
3.0 TDI 2967 CCM 163 HP 06/2016 - 06/2020
AMAROK Platform/Chassis (S1B, S6B, S7B)
Description Cylinder Capacity Horse Power Year
2.0 BiTDI 4motion 1968 CCM 180 HP 09/2011 - 07/2019
2.0 TDI 4motion 1968 CCM 140 HP 09/2011 - 10/2016

The Bosch 0986477324 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records rear axle fitting position, 295 mm inner brake drum diameter, 335.5 mm outer brake drum diameter, and 5 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Fitting Position : Rear Axle
Inner brake drum diameter [mm] : 295
Outer brake drum diameter [mm] : 335.5
Inner brake drum height [mm] : 72
Total brake drum height [mm] : 95.5
Bolt Hole Circle Ø [mm] : 120
Number of Holes : 5
Centering Diameter [mm] : 76
  • Vendor BOSCH
  • SKU 0986477324
  • Barcode 4047026205350
  • VW : 2H0609617
  • APEC : DRM9207
  • BLUE PRINT : ADBP470028
  • BORG & BECK : BBR7275
  • FEBI BILSTEIN : 183833
  • HELLA : 8DT 355 303-011
  • MINTEX : MBD392
  • NAPA : NDR1024
  • National : NDR375
  • TEXTAR : 94043900
  • BOSCH : DB390
