BOSCH

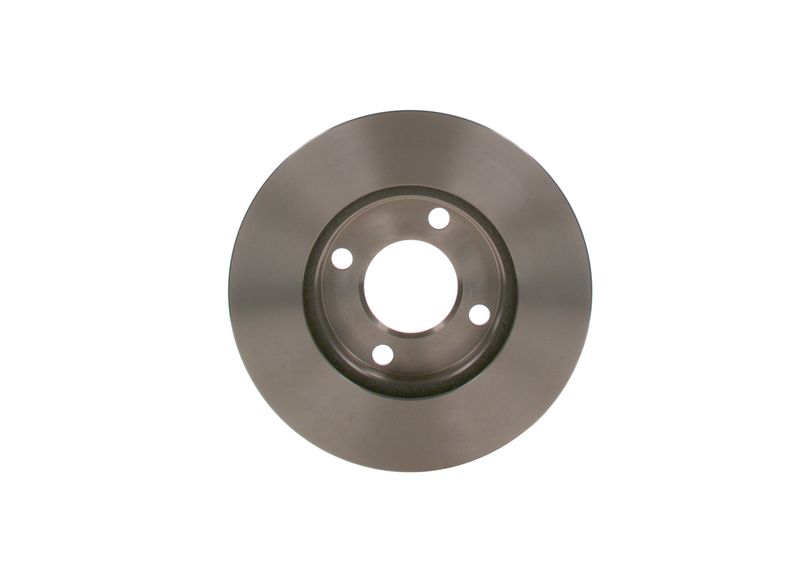

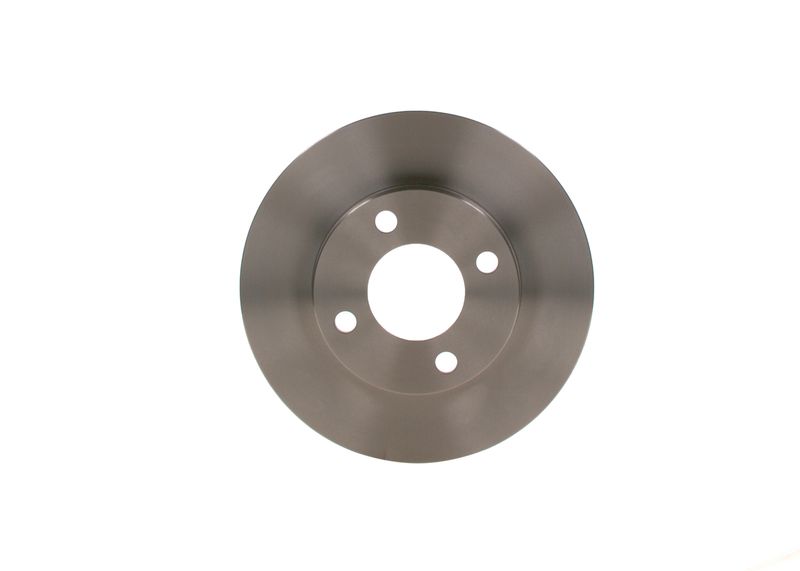

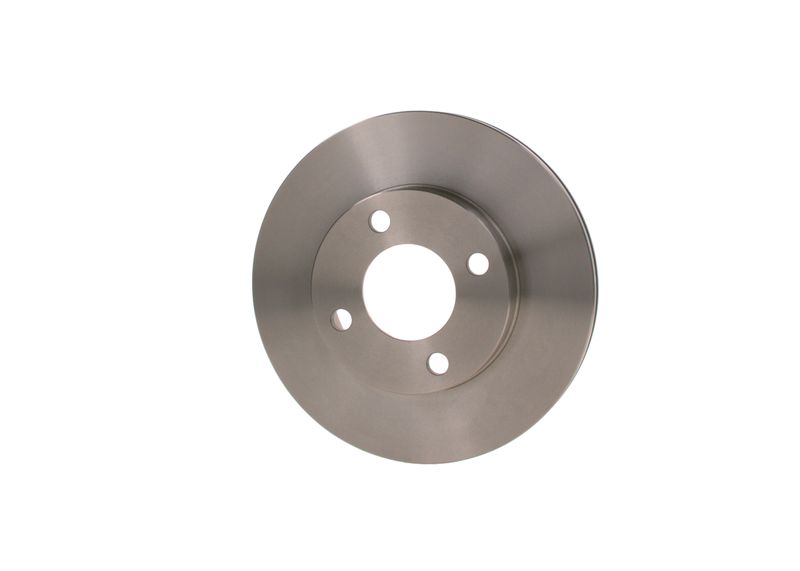

Bosch 0986478018 Brake Disc

SKU: 0986478018

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£53.91 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI

80 B3 Saloon (893, 894, 8A2)

Description	Cylinder Capacity	Horse Power	Year
1.8 S	1781 CCM	88 HP	08/1986 - 01/1990
1.8 S	1781 CCM	90 HP	09/1986 - 10/1991
1.8 E	1781 CCM	112 HP	06/1986 - 08/1991
1.8	1847 CCM	113 HP	09/1986 - 07/1988
2.0 E	1984 CCM	113 HP	08/1988 - 10/1990
2.0 E 16V	1984 CCM	137 HP	03/1990 - 09/1991
1.8 quattro	1847 CCM	113 HP	From 09/1986

90 B3 (893, 894, 8A2)

Description	Cylinder Capacity	Horse Power	Year
2.0	1994 CCM	115 HP	07/1988 - 09/1991
2.3 E	2309 CCM	136 HP	04/1987 - 07/1991
2.3 E	2309 CCM	133 HP	04/1987 - 09/1991
2.3 E quattro	2309 CCM	136 HP	04/1987 - 07/1991
2.3 E quattro	2309 CCM	133 HP	04/1987 - 09/1991
2.2 E	2226 CCM	136 HP	04/1987 - 07/1991
2.2 E quattro	2226 CCM	136 HP	04/1987 - 09/1991
2.0 20 V	1994 CCM	160 HP	08/1989 - 07/1991
2.0 20 V quattro	1994 CCM	160 HP	08/1988 - 09/1991

100 C2 Saloon (431, 433, 434)

Description	Cylinder Capacity	Horse Power	Year
1.9	1921 CCM	100 HP	08/1980 - 08/1984
2.1	2144 CCM	115 HP	10/1977 - 07/1982
2.0 D	1986 CCM	70 HP	08/1978 - 07/1982

100 C2 Avant (435, 436)

Description	Cylinder Capacity	Horse Power	Year
2.1	2144 CCM	115 HP	07/1977 - 02/1983
2.0 D	1986 CCM	70 HP	08/1978 - 02/1983
1.9	1921 CCM	100 HP	08/1980 - 07/1982

100 C3 Avant (445, 446)

Description	Cylinder Capacity	Horse Power	Year
1.8	1781 CCM	75 HP	08/1982 - 12/1987
1.8	1781 CCM	88 HP	02/1986 - 07/1990
1.8	1781 CCM	90 HP	08/1983 - 07/1989
2.0	1994 CCM	113 HP	09/1986 - 11/1987
2.0 E Cat	1994 CCM	115 HP	01/1988 - 11/1990
2.1	2144 CCM	136 HP	08/1982 - 07/1984
2.2	2226 CCM	115 HP	10/1984 - 09/1986
2.2	2226 CCM	137 HP	08/1984 - 12/1988
2.3	2309 CCM	136 HP	08/1986 - 11/1990
2.0 D	1986 CCM	70 HP	03/1983 - 11/1990
2.0 TD	1986 CCM	87 HP	03/1983 - 10/1987
2.0 TD	1986 CCM	100 HP	03/1988 - 11/1990
2.3	2309 CCM	133 HP	03/1990 - 11/1990

100 C3 Saloon (443, 444)

Description	Cylinder Capacity	Horse Power	Year
2.0	1994 CCM	113 HP	08/1986 - 11/1987
2.0 Cat	1994 CCM	115 HP	01/1988 - 11/1990
2.1	2144 CCM	136 HP	08/1982 - 07/1984
2.2	2226 CCM	115 HP	10/1984 - 09/1986
2.2	2226 CCM	137 HP	08/1984 - 12/1988
2.3 E	2309 CCM	136 HP	10/1986 - 11/1990
2.0 D	1986 CCM	70 HP	08/1982 - 07/1988
2.0 D Turbo	1986 CCM	87 HP	08/1982 - 07/1988
2.0 D Turbo	1986 CCM	100 HP	03/1988 - 11/1990
2.3 E	2309 CCM	133 HP	01/1990 - 11/1990

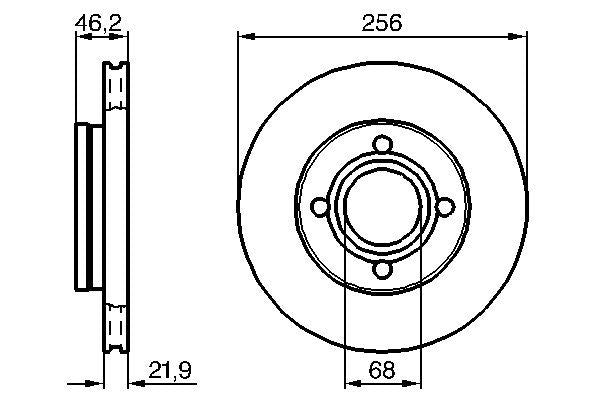

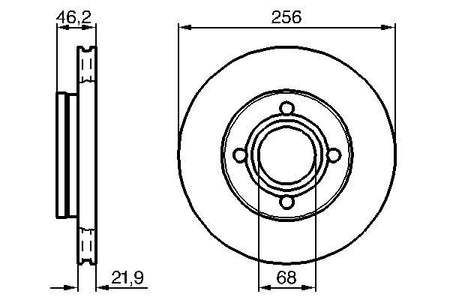

The Bosch 0986478018 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 256 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 256

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 20

Height [mm] : 46.2

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 68

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.3

APEC : DSK547
BORG & BECK : BBD4142
BREMBO : 09.5033.10
DELPHI : BG2272
FEBI BILSTEIN : 08554
HELLA : 8DD 355 100-591
MEYLE : 115 521 1003
MINTEX : MDC328
National : NBD094
TEXTAR : 92026000
TRW : DF1530
VALEO : 186112
VALEO : 673431

Bosch 0986478018 Brake Disc
