BOSCH

Bosch 0986478029 Brake Disc

SKU: 0986478029

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£39.63 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

3 (E30)

Description	Cylinder Capacity	Horse Power	Year
316 (Ecotronic)	1766 CCM	90 HP	09/1983 - 06/1988
316 i	1596 CCM	100 HP	09/1987 - 06/1991
318 i	1766 CCM	102 HP	12/1984 - 08/1988
318 i	1766 CCM	105 HP	09/1982 - 08/1987
318 i	1796 CCM	115 HP	09/1987 - 06/1991
318 i	1796 CCM	113 HP	06/1987 - 12/1991

3 Convertible (E30)

Description	Cylinder Capacity	Horse Power	Year
318 i	1796 CCM	113 HP	09/1990 - 10/1993

The Bosch 0986478029 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 260 mm outer diameter, 12.6 mm brake disc thickness, 11.1 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

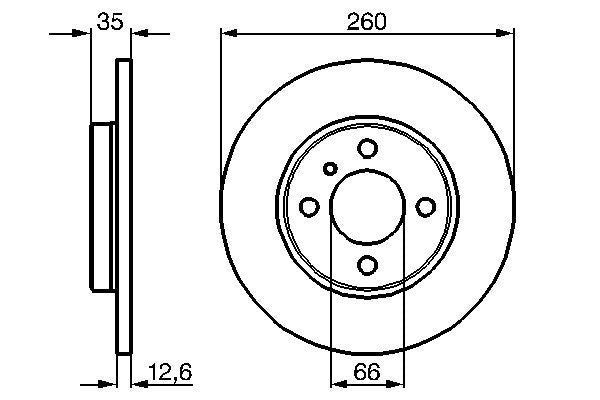

Outer Diameter [mm] : 260

Brake Disc Thickness [mm] : 12.6

Minimum thickness [mm] : 11.1

Height [mm] : 35

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : solid

Centering Diameter [mm] : 66

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.5

Bosch 0986478029 Brake Disc
