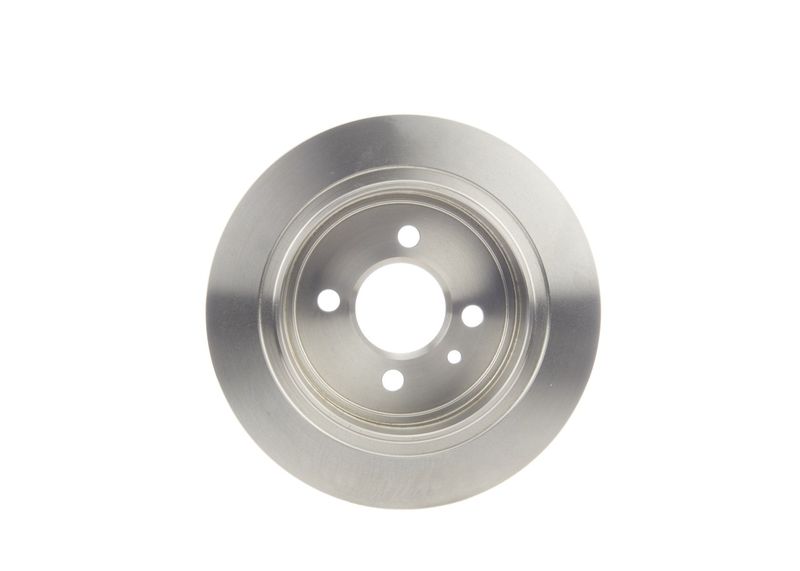

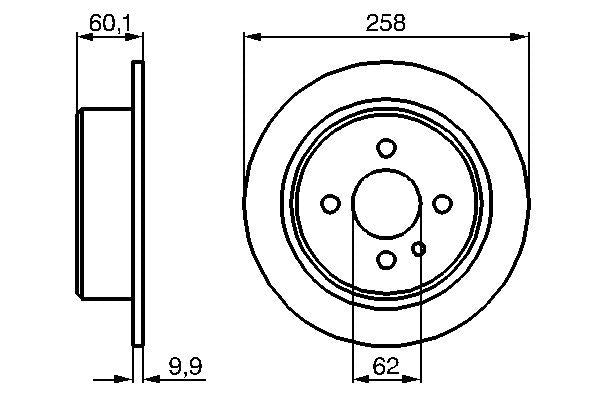

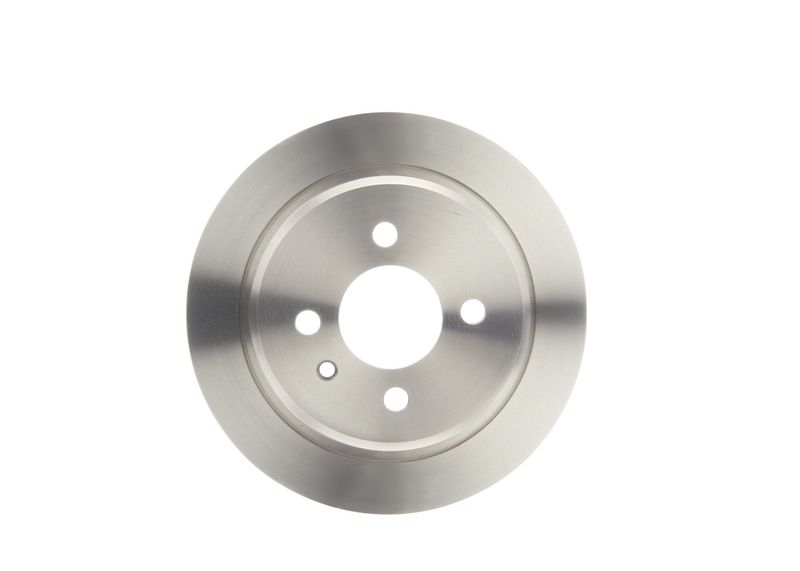

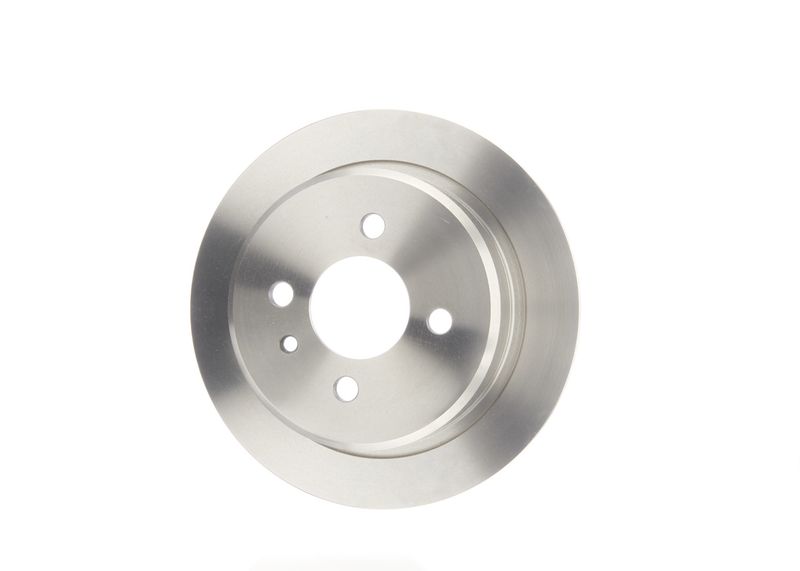

The Bosch 0986478034 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 258 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
258
Brake Disc Thickness [mm] :
10
Minimum thickness [mm] :
8.4
Height [mm] :
60.1
Bolt Hole Circle Ø [mm] :
100
Brake Disc Type :
solid
Centering Diameter [mm] :
62
Number of Holes :
4
Surface :
Oiled
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
14.5
- Vendor BOSCH
- SKU 0986478034
- APEC : DSK553
- BLUE PRINT : ADB114390
- BORG & BECK : BBD5343
- BREMBO : 08.3947.24
- BREMBO : 08.3947.2X
- DELPHI : BG2202
- FEBI BILSTEIN : 04091
- FTE : 9082462
- HELLA : 8DD 355 100-351
- MEYLE : 315 523 3001
- MINTEX : MDC470
- National : NBD105
- TEXTAR : 92019200
- TRW : DF1561
- VALEO : 673360
- BOSCH : BD37
- BOSCH : E1 90R-02C0241/0752
