BOSCH

Bosch 0986478068 Brake Disc

SKU: 0986478068

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£25.14 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

FIESTA (GFBT)

Description	Cylinder Capacity	Horse Power	Year
0.9	957 CCM	40 HP	05/1976 - 08/1983
0.9	957 CCM	45 HP	05/1976 - 08/1983
1.1	1117 CCM	53 HP	05/1976 - 08/1983
1.3	1297 CCM	66 HP	08/1977 - 08/1983
1.1 (WFBT)	1117 CCM	55 HP	02/1981 - 08/1983

FIESTA Hatchback Van (WFVT)

Description	Cylinder Capacity	Horse Power	Year
1.0 (WFVT)	957 CCM	40 HP	10/1977 - 11/1986
1.1 (WFVT)	1117 CCM	53 HP	10/1977 - 11/1986

FIESTA Hatchback Van (FVD)

Description	Cylinder Capacity	Horse Power	Year
1.0	957 CCM	45 HP	08/1983 - 11/1989
1.4	1392 CCM	71 HP	09/1986 - 09/1989
1.6 D	1608 CCM	54 HP	09/1983 - 09/1989

FIESTA Mk II (FBD)

Description	Cylinder Capacity	Horse Power	Year
1.1 (FBD)	1117 CCM	49 HP	05/1986 - 02/1989
1.0 (FBD)	957 CCM	45 HP	09/1983 - 02/1989
1.1 (FBD)	1117 CCM	50 HP	09/1983 - 02/1989
1.3 (FBD)	1298 CCM	69 HP	09/1983 - 01/1987
1.4 (FBD)	1392 CCM	71 HP	10/1986 - 02/1989
1.4 (FBD)	1392 CCM	73 HP	02/1987 - 02/1989
1.4 (FBD)	1392 CCM	75 HP	10/1985 - 11/1989
1.6 D (FBD)	1608 CCM	54 HP	04/1984 - 02/1989
1.4	1392 CCM	69 HP	09/1983 - 01/1987
1.3	1297 CCM	69 HP	09/1983 - 09/1989
1.6	1597 CCM	79 HP	01/1985 - 11/1989

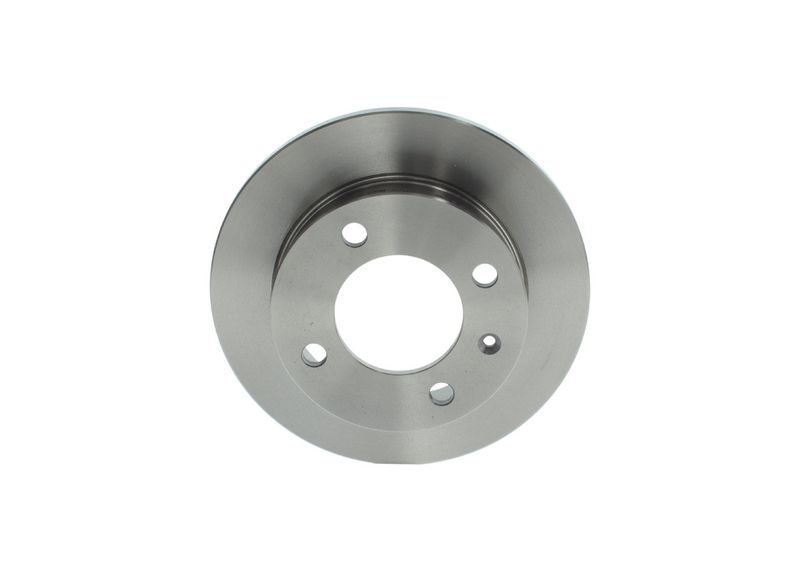

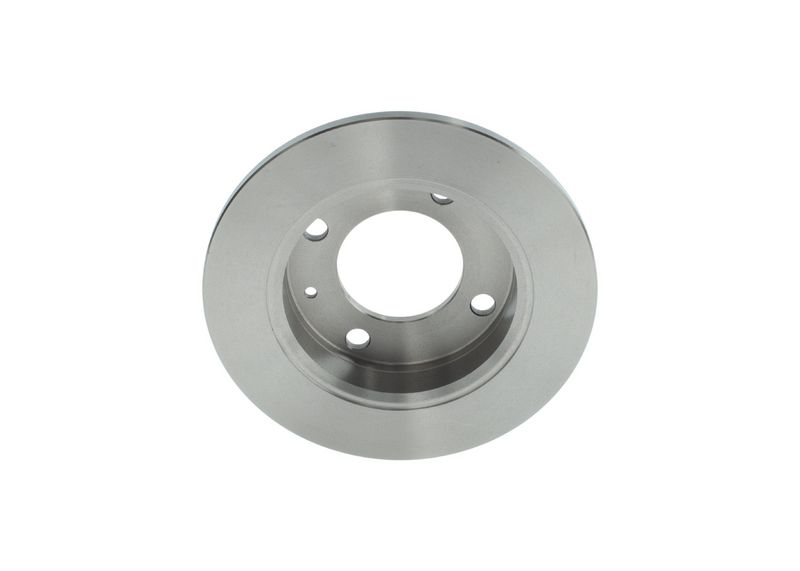

The Bosch 0986478068 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 221 mm outer diameter, 10 mm brake disc thickness, 8.7 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

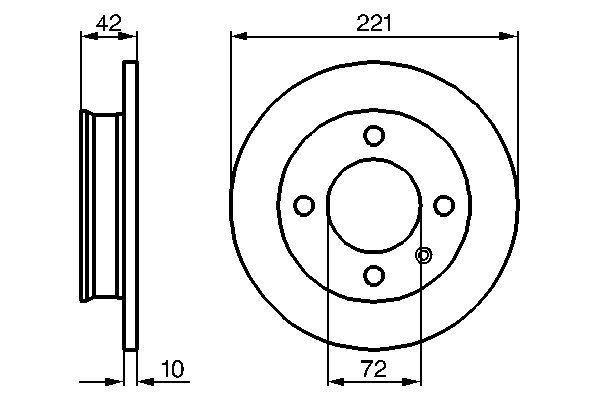

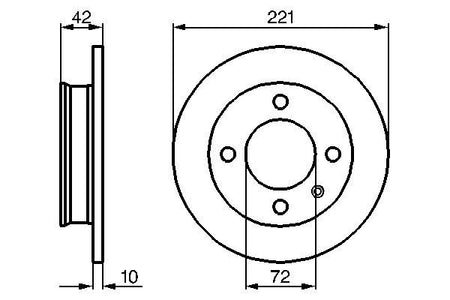

Outer Diameter [mm] : 221

Brake Disc Thickness [mm] : 10

Minimum thickness [mm] : 8.7

Height [mm] : 42

Bolt Hole Circle Ø [mm] : 107.95

Brake Disc Type : solid

Centering Diameter [mm] : 72

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.4

Bosch 0986478068 Brake Disc
