BOSCH

Bosch 0986478097 Brake Disc

SKU: 0986478097

Your selected vehicle

Out of stock

Out of Stock

£64.98 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PORSCHE

911

Description	Cylinder Capacity	Horse Power	Year
2.2 T	2195 CCM	125 HP	01/1970 - 12/1972
2.3 T	2341 CCM	130 HP	01/1972 - 12/1973
2.7	2687 CCM	150 HP	09/1973 - 08/1975
2.7	2687 CCM	165 HP	09/1975 - 06/1977
3.0 SC Carrera	2993 CCM	180 HP	07/1977 - 06/1980
3.0 SC Carrera	2993 CCM	188 HP	09/1979 - 06/1980
3.0 SC Carrera	2993 CCM	200 HP	09/1975 - 06/1977
3.0 SC	2993 CCM	204 HP	08/1980 - 07/1983
2.0 T	1991 CCM	110 HP	08/1968 - 02/1972
2.3 S	2341 CCM	190 HP	08/1971 - 08/1973
2.3 E	2341 CCM	165 HP	08/1971 - 12/1973

911 Targa

Description	Cylinder Capacity	Horse Power	Year
2.2 T	2195 CCM	125 HP	01/1970 - 12/1972
2.3 T	2341 CCM	130 HP	01/1972 - 12/1973
2.7	2687 CCM	150 HP	09/1973 - 08/1975
2.7	2687 CCM	165 HP	09/1975 - 06/1977
3.0 SC Carrera	2993 CCM	180 HP	07/1977 - 06/1980
3.0 SC Carrera	2993 CCM	188 HP	09/1979 - 06/1980
3.0 SC Carrera	2993 CCM	200 HP	09/1975 - 06/1977
2.0 E	1991 CCM	140 HP	09/1968 - 02/1972
2.0 T	1991 CCM	110 HP	06/1967 - 02/1972
2.2 E	2195 CCM	155 HP	09/1969 - 02/1972
2.0 L	1991 CCM	131 HP	01/1967 - 11/1968
2.0 S	1991 CCM	160 HP	07/1966 - 11/1968
2.2 S	2195 CCM	180 HP	09/1969 - 02/1972
2.3 E	2341 CCM	165 HP	08/1971 - 12/1973
2.7 SC Carrera RS	2687 CCM	209 HP	08/1972 - 01/1979

911 Convertible

Description	Cylinder Capacity	Horse Power	Year
3.0 SC	2993 CCM	204 HP	08/1982 - 07/1983

924

Description	Cylinder Capacity	Horse Power	Year
2.0 Turbo	1984 CCM	170 HP	11/1978 - 06/1980
2.5 S	2479 CCM	150 HP	09/1985 - 07/1987
2.5 S	2479 CCM	160 HP	08/1987 - 07/1988
2.0 Turbo	1984 CCM	177 HP	06/1980 - 10/1986
2.0 Carrera GT	1984 CCM	209 HP	06/1980 - 10/1986

944

Description	Cylinder Capacity	Horse Power	Year
2.5	2479 CCM	150 HP	01/1985 - 07/1987
2.5	2479 CCM	163 HP	06/1981 - 07/1987

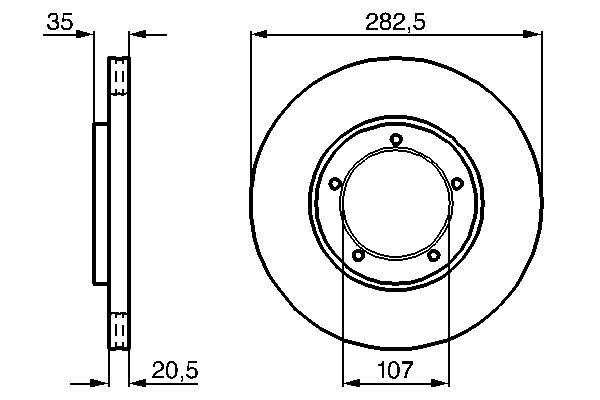

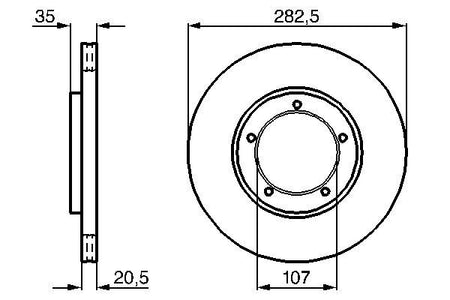

The Bosch 0986478097 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 282.5 mm outer diameter, 20.4 mm brake disc thickness, 19.1 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 282.5

Brake Disc Thickness [mm] : 20.4

Minimum thickness [mm] : 19.1

Height [mm] : 35.2

Bolt Hole Circle Ø [mm] : 126

Brake Disc Type : Vented

Centering Diameter [mm] : 107

Number of Holes : 5

Surface : Oiled

Machining : Alloyed/High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 8.5

Bosch 0986478097 Brake Disc
