BOSCH

Bosch 0986478217 Brake Disc

SKU: 0986478217

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£104.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

5 (E28)

Description	Cylinder Capacity	Horse Power	Year
528 i	2788 CCM	184 HP	06/1981 - 12/1987
535 i, M 535 i	3430 CCM	185 HP	01/1985 - 12/1987
535 i, M 535 i	3430 CCM	192 HP	01/1985 - 12/1987
535 i	3430 CCM	220 HP	01/1985 - 12/1987

6 (E24)

Description	Cylinder Capacity	Horse Power	Year
628 CSi	2788 CCM	184 HP	09/1979 - 08/1987
635 CSi	3430 CCM	211 HP	07/1987 - 04/1989
635 CSi	3430 CCM	185 HP	12/1984 - 12/1986
635 CSi	3430 CCM	192 HP	12/1977 - 04/1989
635 CSi	3430 CCM	218 HP	05/1982 - 08/1988
635 CSi	3430 CCM	220 HP	07/1987 - 04/1989

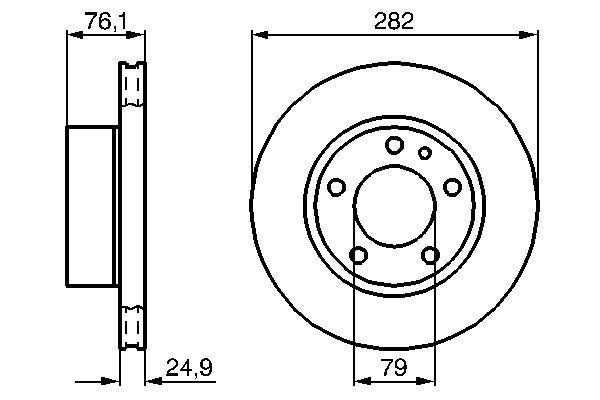

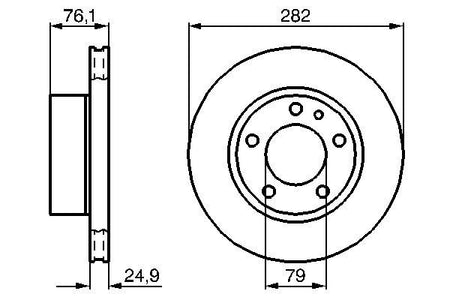

The Bosch 0986478217 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 282 mm outer diameter, 25 mm brake disc thickness, 23.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 282

Brake Disc Thickness [mm] : 25

Minimum thickness [mm] : 23.4

Height [mm] : 76.3

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 79

Number of Holes : 5

Surface : Oiled

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15

Bosch 0986478217 Brake Disc
