BOSCH

Bosch 0986478224 Brake Disc

SKU: 0986478224
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£39.32 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
TRANSPORTER T3 Platform/Chassis (24_)
Description Cylinder Capacity Horse Power Year
1.6 TD 1588 CCM 70 HP 10/1984 - 07/1992
1.7 D 1715 CCM 57 HP 08/1985 - 07/1992
2.1 2109 CCM 95 HP 08/1985 - 07/1992
2.0 1970 CCM 69 HP 05/1979 - 04/1986
1.9 1913 CCM 60 HP 09/1982 - 07/1992
1.9 1913 CCM 78 HP 08/1982 - 07/1992
2.1 2109 CCM 112 HP 03/1986 - 07/1992
2.1 i 2109 CCM 92 HP 07/1989 - 07/1992
1.6 D 1588 CCM 50 HP 01/1981 - 07/1987
1.9 1913 CCM 83 HP 10/1984 - 02/1989
TRANSPORTER T3 Van (24_, 25_)
Description Cylinder Capacity Horse Power Year
2.1 2109 CCM 95 HP 08/1985 - 07/1992
1.9 1913 CCM 60 HP 10/1982 - 07/1992
2.0 1970 CCM 69 HP 05/1979 - 04/1986
1.6 1584 CCM 50 HP 05/1979 - 12/1982
1.9 1913 CCM 78 HP 10/1982 - 07/1992
1.6 TD 1588 CCM 69 HP 10/1984 - 07/1992
1.7 D 1715 CCM 57 HP 08/1984 - 07/1992
1.6 D 1588 CCM 50 HP 01/1981 - 07/1987
2.1 2109 CCM 112 HP 03/1986 - 07/1992
2.1 i 2109 CCM 92 HP 07/1989 - 07/1992
1.9 1913 CCM 90 HP 08/1983 - 02/1989
TRANSPORTER / CARAVELLE T3 Bus (25_)
Description Cylinder Capacity Horse Power Year
1.6 1584 CCM 50 HP 05/1979 - 12/1982
1.6 D 1588 CCM 50 HP 01/1981 - 07/1987
1.6 TD 1588 CCM 70 HP 08/1984 - 07/1992
1.9 1913 CCM 60 HP 08/1982 - 07/1992
1.9 1913 CCM 78 HP 08/1982 - 07/1992
1.9 1913 CCM 83 HP 01/1983 - 07/1985
2.0 1970 CCM 70 HP 05/1979 - 12/1982
2.1 2109 CCM 95 HP 08/1985 - 07/1992
2.1 2109 CCM 112 HP 08/1984 - 07/1992
1.7 D 1716 CCM 57 HP 10/1986 - 07/1992
2.1 i 2109 CCM 92 HP 07/1989 - 07/1992
2.1 Cat 2109 CCM 95 HP 06/1989 - 07/1992
1.9 1913 CCM 90 HP 08/1983 - 07/1985

The Bosch 0986478224 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 257.7 mm outer diameter, 16 mm brake disc thickness, 13 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

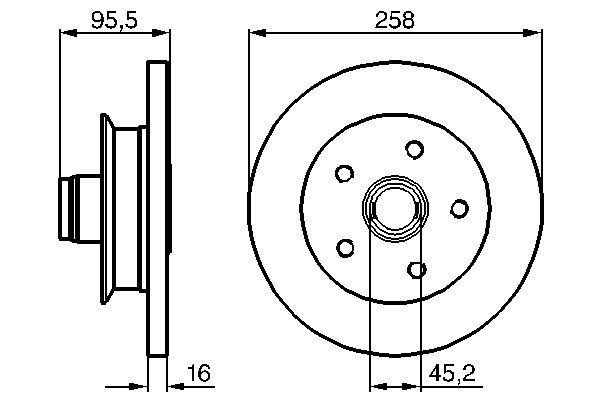

Function : Brake Disc
Outer Diameter [mm] : 257.7
Brake Disc Thickness [mm] : 16
Minimum thickness [mm] : 13
Height [mm] : 94.8
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : solid
Centering Diameter [mm] : 45.2
Number of Holes : 5
Surface : Oiled
  • Vendor BOSCH
  • SKU 0986478224
  • Barcode 3165142302096
  • VW : 251 407 617 D 251 407 617 F 251 407 617 G 251 407 617 K 251 407 617 L 251 407 617 M 251 407 617 N
  • APEC : DSK610
  • BLUE PRINT : ADV184391
  • BORG & BECK : BBD5857S
  • BREMBO : 08.5177.10
  • BREMBO : 08.5177.20
  • DELPHI : BG2468
  • FEBI BILSTEIN : 02583
  • FTE : 9071135
  • HELLA : 8DD 355 102-361
  • MEYLE : 115 521 1025
  • MINTEX : MDC911
  • National : NBD179
  • TEXTAR : 92053000
  • TRW : DF1534
  • TRW : DF2587
  • VALEO : 186770
  • VALEO : 673562
  • BOSCH : BD177
