BOSCH

Bosch 0986478273 Brake Disc

SKU: 0986478273

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£27.23 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

CLIO I (B/C57_, 5/357_)

Description	Cylinder Capacity	Horse Power	Year
1.2 (B/C/S57A, B/C57S, 5/357F, 5/357J, 5/357L, 5/357R)	1171 CCM	58 HP	05/1990 - 09/1998
1.1	1108 CCM	46 HP	01/1991 - 09/1998
1.2 (B/C57R, B575, B57A)	1171 CCM	54 HP	01/1991 - 06/1996

EXTRA Van (F40_, G40_)

Description	Cylinder Capacity	Horse Power	Year
1.1 (F40H)	1108 CCM	45 HP	06/1987 - 09/1991
1.1 (F401)	1108 CCM	45 HP	07/1985 - 04/1995
1.4 (F40M)	1397 CCM	60 HP	03/1986 - 08/1991
1.6 D (F404)	1595 CCM	55 HP	03/1986 - 08/1998
1.9 D (F40P, F40N, F40E)	1870 CCM	64 HP	09/1991 - 03/1998
1.2 (F406, G40A)	1239 CCM	55 HP	09/1991 - 03/1998
1.4 Cat (F407)	1390 CCM	58 HP	08/1988 - 03/1998
1.4 (F40U, F40V)	1390 CCM	75 HP	09/1991 - 03/1998
1.9 D (F40R)	1870 CCM	54 HP	09/1994 - 03/1998
1.4 (F40D)	1390 CCM	79 HP	01/1994 - 03/1998
1.4 (F402)	1397 CCM	58 HP	07/1985 - 08/1991
1.0	956 CCM	37 HP	02/1986 - 05/1992
1.2	1237 CCM	54 HP	09/1991 - 08/1993
1.1	1108 CCM	48 HP	09/1993 - 04/1995
1.6 D	1595 CCM	54 HP	09/1993 - 04/1995

SUPER 5 (B/C40_)

Description	Cylinder Capacity	Horse Power	Year
1.0 (B/C/400)	956 CCM	41 HP	10/1984 - 10/1988
1.1 (B/C/401, B/C40H)	1108 CCM	45 HP	01/1986 - 03/1995
1.1 (B/C/401)	1108 CCM	46 HP	10/1984 - 10/1988

SUPER 5 Hatchback Van (S40_)

Description	Cylinder Capacity	Horse Power	Year
1.1 (S401)	1108 CCM	46 HP	10/1984 - 12/1996

TWINGO I (C06_)

Description	Cylinder Capacity	Horse Power	Year
1.2 (C063, C064)	1239 CCM	55 HP	03/1993 - 10/1996
1.2 (C067)	1149 CCM	54 HP	05/1996 - 03/2007
1.2 (C066, C068)	1149 CCM	58 HP	05/1996 - 06/2007

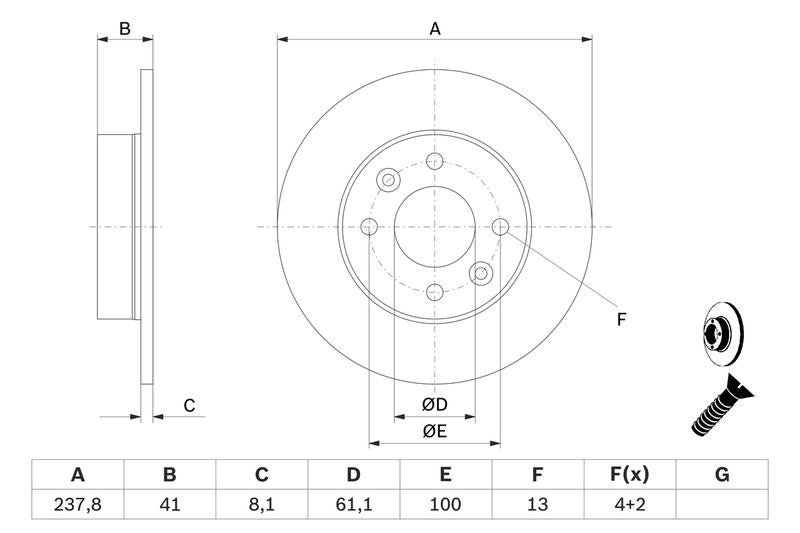

The Bosch 0986478273 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 237.8 mm outer diameter, 8.1 mm brake disc thickness, 7 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 237.8

Brake Disc Thickness [mm] : 8.1

Minimum thickness [mm] : 7

Height [mm] : 41

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : solid

Centering Diameter [mm] : 61.1

Number of Holes : 4

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

Bore Diameter up to [mm] : 13

APEC : DSK184
BLUE PRINT : ADBP430008
BORG & BECK : BBD4845
BREMBO : 08.3147.14
DELPHI : BG2258
FEBI BILSTEIN : 09318
FTE : 9072595
FTE : 9082408
HELLA : 8DD 355 101-221
MEYLE : 16-15 521 0002
MINTEX : MDC364
National : NBD034
SKF : VKBD 80308 S2
TEXTAR : 92036000
TEXTAR : 92036003
TRW : DF1015
VALEO : 186228
VALEO : 673137

Bosch 0986478273 Brake Disc
