BOSCH

Bosch 0986478305 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986478305

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£72.92 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

RENAULT

AVANTIME (DE0_)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6 (DE04, DE0T)	2946 CCM	207 HP	09/2001 - 05/2003
2.0 16V Turbo (DE0U, DE0V)	1998 CCM	163 HP	11/2001 - 05/2003
2.2 dCi (DE01)	2188 CCM	150 HP	05/2002 - 05/2003

ESPACE Mk III (JE0_)

Description	Cylinder Capacity	Horse Power	Year
3.0 (JE0D)	2963 CCM	167 HP	11/1996 - 10/1998
3.0 V6 24V (JE0G, JE0R)	2946 CCM	190 HP	10/1998 - 10/2002
2.0 16V (JE0N, JE0L, JE02)	1998 CCM	140 HP	10/1998 - 10/2002
2.2 dCi (JE0K)	2188 CCM	130 HP	10/2000 - 10/2002
2.0	1998 CCM	139 HP	09/2001 - 10/2002
2.2 dCi (JE0S)	2188 CCM	115 HP	07/2000 - 10/2002

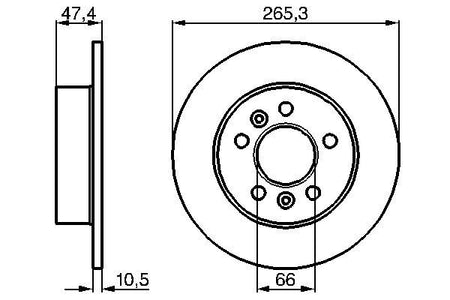

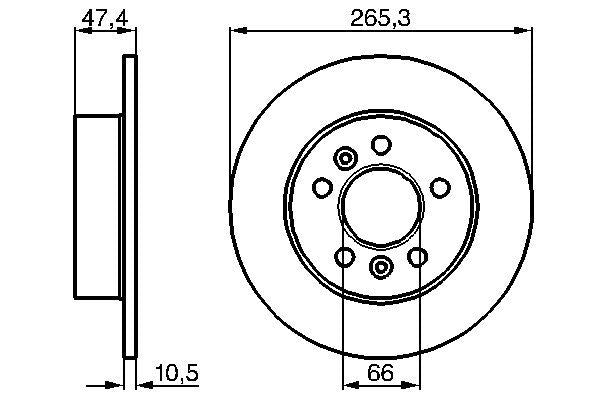

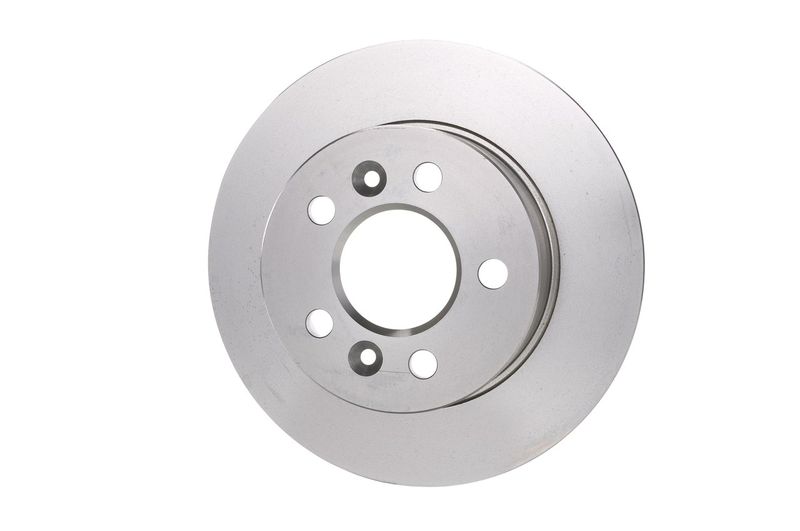

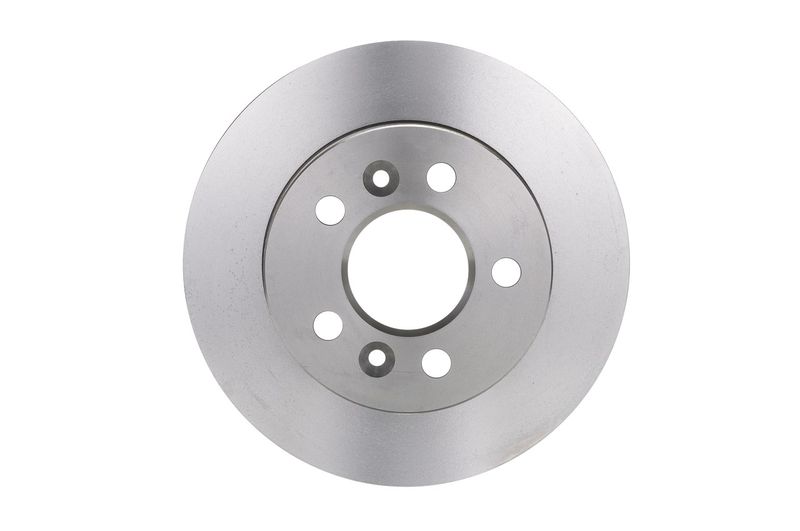

The Bosch 0986478305 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 264.8 mm outer diameter, 10.5 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 264.8

Brake Disc Thickness [mm] : 10.5

Minimum thickness [mm] : 9.5

Height [mm] : 54.3

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : solid

Centering Diameter [mm] : 66

Number of Holes : 5

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90
