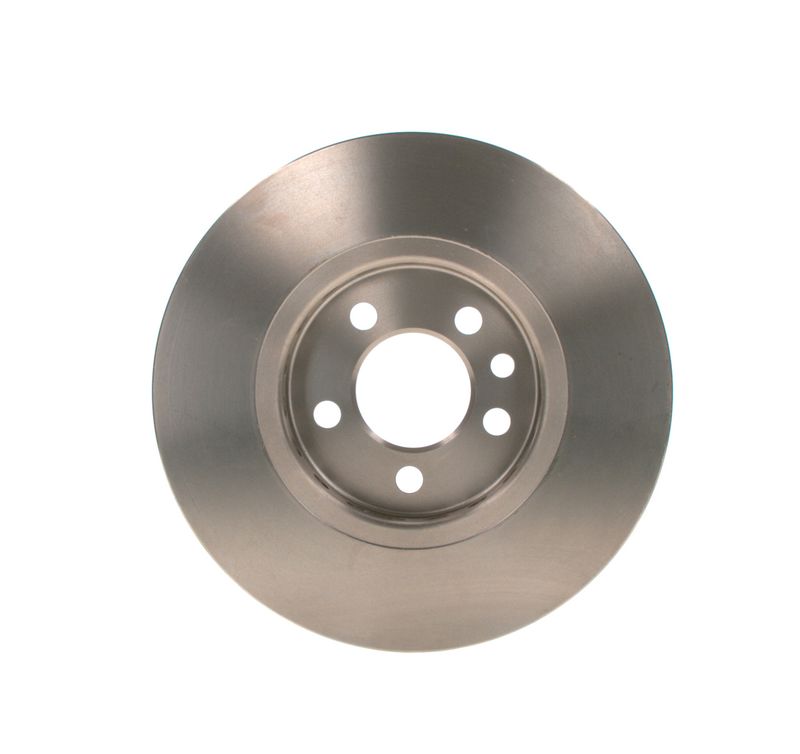

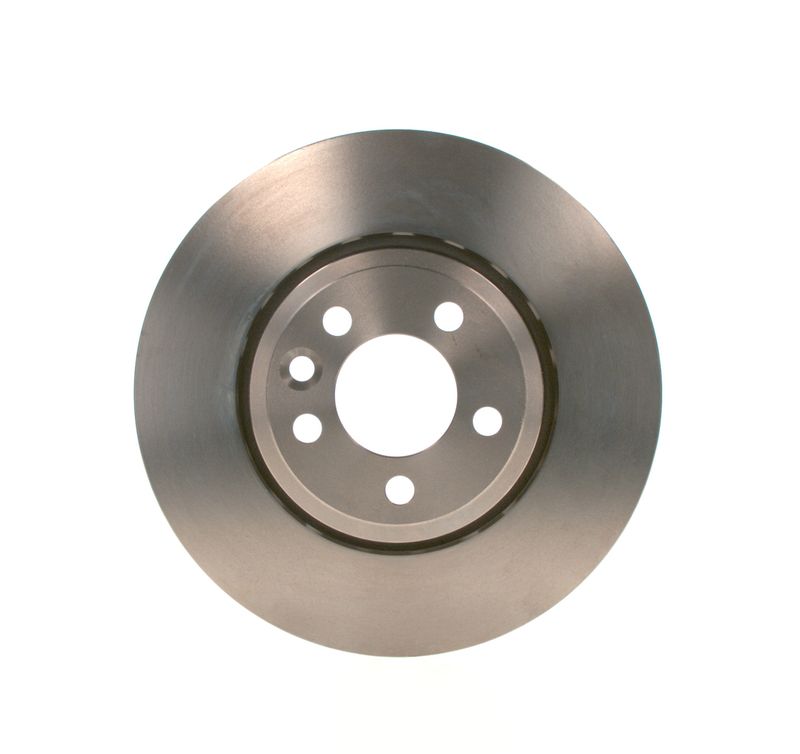

Bosch 0986478314 Brake Disc

SKU: 0986478314

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£79.05 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MG 6 Saloon

Description	Cylinder Capacity	Horse Power	Year
1.8	1795 CCM	133 HP	From 11/2010
1.8 T	1796 CCM	160 HP	From 11/2010
1.9 DTi	1849 CCM	150 HP	From 08/2012

MG 6 Hatchback

Description	Cylinder Capacity	Horse Power	Year
1.8 T	1796 CCM	160 HP	From 11/2010
1.8	1795 CCM	133 HP	From 11/2010
1.9 DTi	1849 CCM	150 HP	From 08/2012

Description	Cylinder Capacity	Horse Power	Year
190	2497 CCM	190 HP	06/2001 - 07/2005
160	2497 CCM	160 HP	06/2001 - 07/2005
2.0 CDTi	1951 CCM	131 HP	11/2002 - 07/2005
1.8 16V	1795 CCM	120 HP	01/2003 - 07/2005
1.8 T 16V	1796 CCM	160 HP	01/2003 - 07/2005
180	2497 CCM	177 HP	02/2002 - 10/2005
2.0 CDTi	1951 CCM	116 HP	06/2002 - 09/2003

ZT- T

Description	Cylinder Capacity	Horse Power	Year
160	2497 CCM	160 HP	10/2001 - 07/2005
190	2497 CCM	190 HP	10/2001 - 07/2005
2.0 CDTi	1951 CCM	131 HP	11/2002 - 07/2005
1.8 16V	1795 CCM	120 HP	01/2003 - 07/2005
1.8 T 16V	1796 CCM	160 HP	01/2003 - 07/2005
180	2497 CCM	177 HP	02/2002 - 10/2005
2.0 CDTi	1951 CCM	116 HP	06/2002 - 07/2005

ROVER

75 (RJ)

Description	Cylinder Capacity	Horse Power	Year
1.8	1796 CCM	120 HP	02/1999 - 05/2005
2.0 V6	1997 CCM	150 HP	02/1999 - 05/2005
2.5 V6	2497 CCM	175 HP	02/1999 - 10/2001
2.0 CDT	1951 CCM	115 HP	02/1999 - 05/2005
2.5 V6	2497 CCM	177 HP	10/2001 - 05/2005
2.0 CDTi	1951 CCM	131 HP	02/2003 - 04/2005
1.8 Turbo	1796 CCM	150 HP	05/2003 - 05/2005

75 I Tourer (RJ)

Description	Cylinder Capacity	Horse Power	Year
1.8	1796 CCM	120 HP	08/2001 - 05/2005
2.0 V6	1997 CCM	150 HP	08/2001 - 05/2005
2.5 V6	2497 CCM	177 HP	08/2001 - 05/2005
2.0 CDT	1951 CCM	115 HP	08/2001 - 05/2005
2.0 CDTi	1951 CCM	131 HP	02/2003 - 05/2005
1.8 Turbo	1796 CCM	150 HP	05/2003 - 05/2005

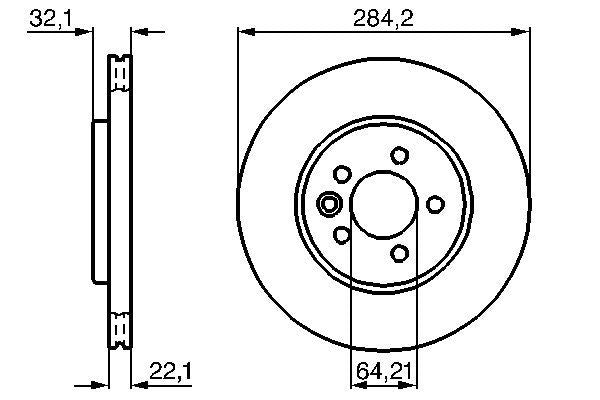

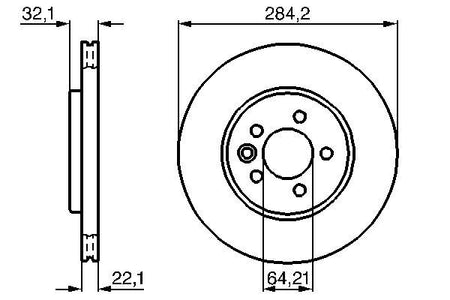

The Bosch 0986478314 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 283.7 mm outer diameter, 22 mm brake disc thickness, 19 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 283.7

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 19

Height [mm] : 38.2

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 64.15

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.1

APEC : DSK835
APEC : SDK6157
BLUE PRINT : ADG043235
BORG & BECK : BBD4130
BREMBO : 09.7879.10
BREMBO : 09.7879.11
DELPHI : BG3503
Fahren : FBD6157
FEBI BILSTEIN : 17963
HELLA : 8DD 355 107-251
MINTEX : MDC1067
NAPA : NBD5904
National : NBD965
SKF : VKBD 80349 V2
TEXTAR : 92103400
TRW : DF4202
VALEO : 186814
VALEO : 673680
