BOSCH

Bosch 0986478318 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986478318

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£73.60 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW

5 (E34)

Description	Cylinder Capacity	Horse Power	Year
520 i	1990 CCM	129 HP	06/1987 - 09/1990
520 i 24V	1990 CCM	150 HP	04/1990 - 08/1995
525 i	2494 CCM	170 HP	02/1988 - 08/1990
525 i 24V	2494 CCM	192 HP	03/1990 - 08/1995
530 i	2986 CCM	188 HP	01/1988 - 04/1990
530 i V8	2997 CCM	218 HP	09/1992 - 12/1995
535 i	3430 CCM	211 HP	11/1987 - 02/1993

5 Touring (E34)

Description	Cylinder Capacity	Horse Power	Year
520 i	1990 CCM	150 HP	07/1991 - 07/1996
525 i	2494 CCM	192 HP	07/1991 - 07/1996
525 tds	2497 CCM	143 HP	12/1991 - 07/1996
530 i	2997 CCM	218 HP	09/1992 - 07/1996
525 td	2497 CCM	115 HP	03/1993 - 07/1996

7 (E32)

Description	Cylinder Capacity	Horse Power	Year
730 i, iL V8	2997 CCM	218 HP	04/1992 - 09/1994

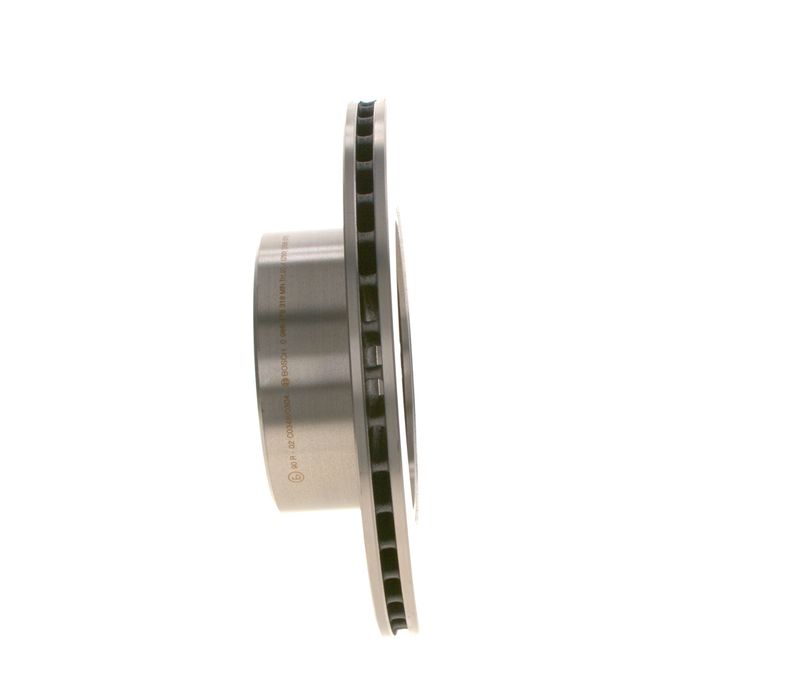

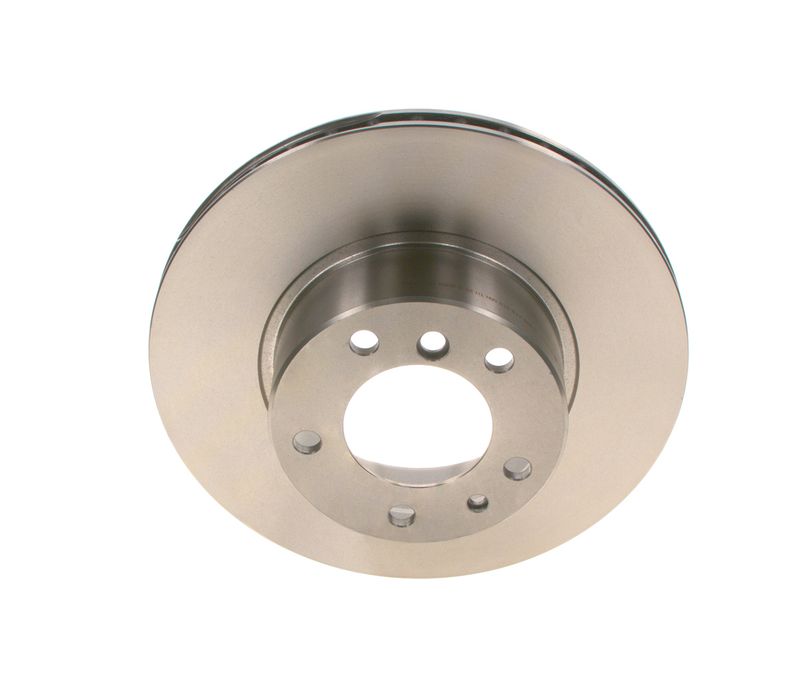

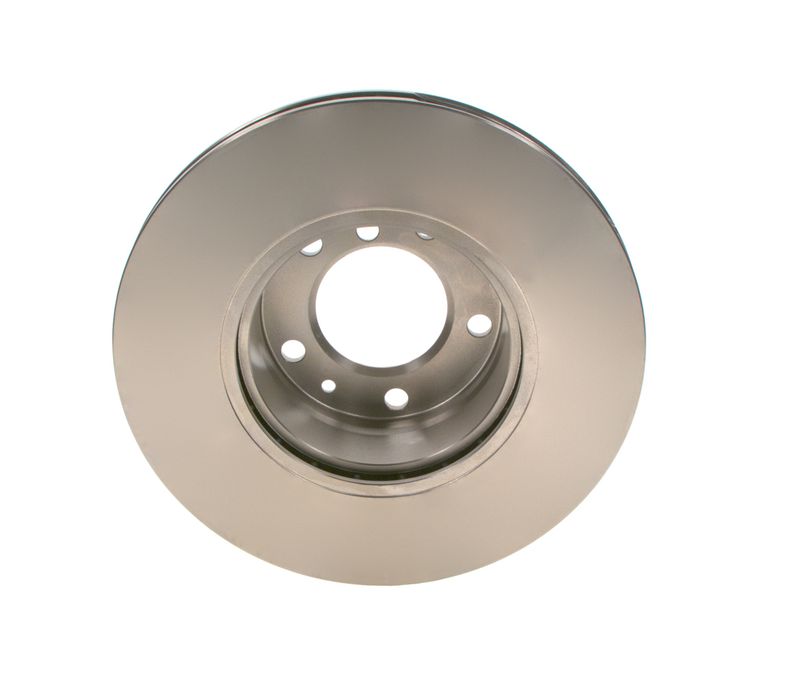

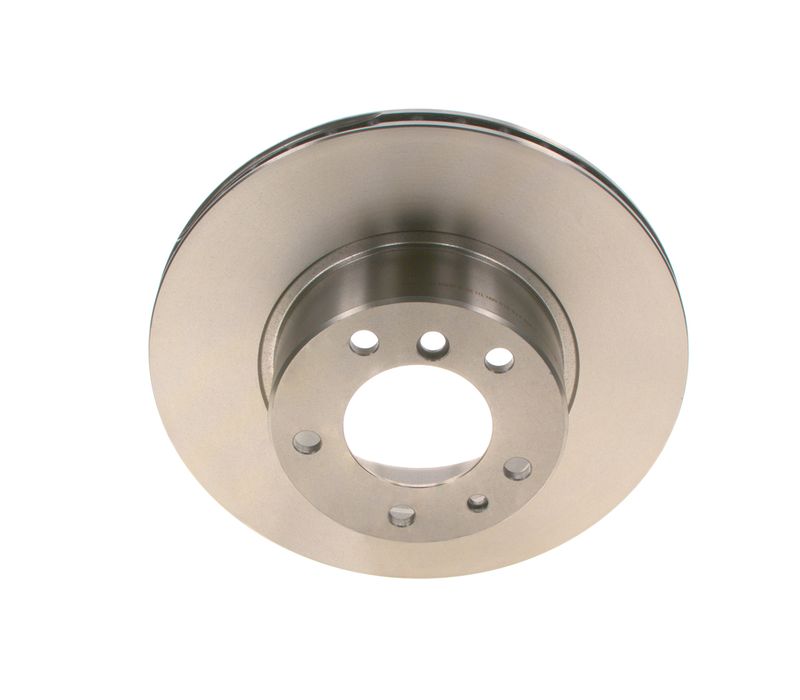

The Bosch 0986478318 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 22 mm brake disc thickness, 20.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

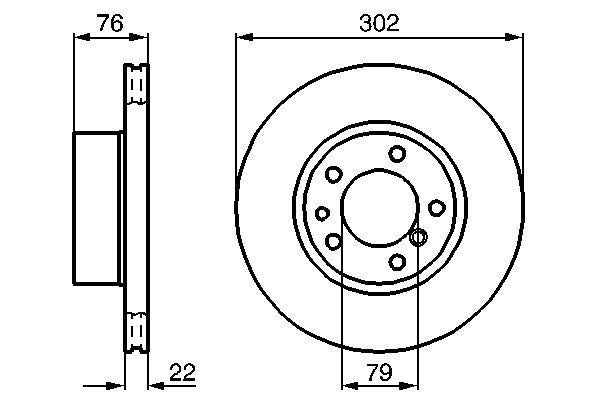

Outer Diameter [mm] : 302

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 20.4

Height [mm] : 75.9

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 79

Number of Holes : 5

Surface : Oiled

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws
